• Model NO.：XJ35+65+40
• Inverter：Inovance
• Bearing：NSK
• Transport Package：Standard Shipping Packing
• Specification：XJ35+65+40
• Trademark：Newtopp
• Origin：China
• HS Code：8477209000
• Production Capacity：30 Sets,Year

Basic Info.

Model NO. XJ35+65+40 Inverter Inovance Bearing NSK Transport Package Standard Shipping Packing Specification XJ35+65+40 Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 30 Sets/Year

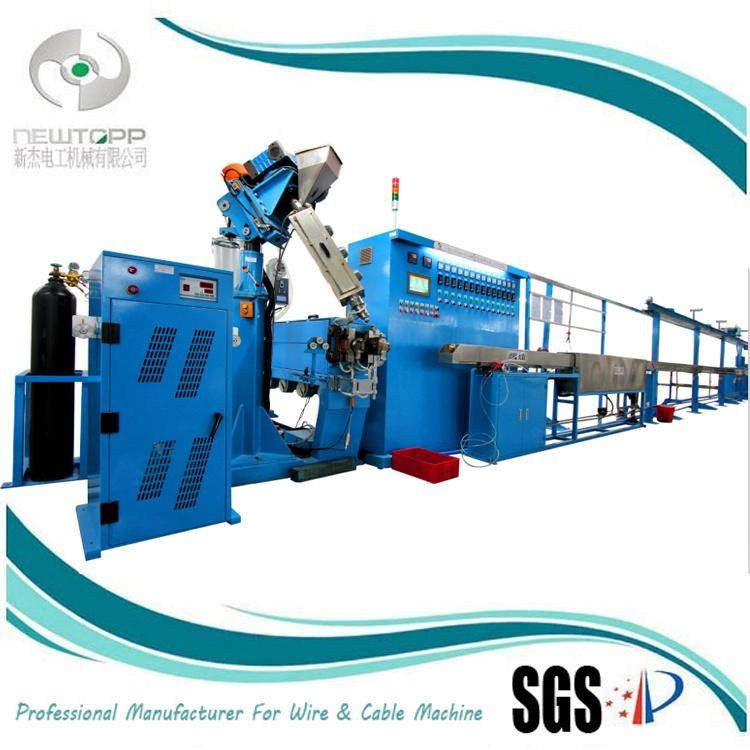

Product Description

Application field:
Used for copper conductor wire chemical/pysical foam-skin/skin-foam-skin daul/three-layers insulation extrusion and single layer+striping extusion.






Machine technical feature
Inlet wire diameter: ø0.4mm-1.0mm
Finished diameter: ø1.6mm-6.0mm
Extrusion material: Foam-PE,  Foam-PP, HDPE, PU , PP etc.
Screw parameters: Physical foaming L/D ratio:36:1(Chemical foaming L/D radio:28:1),compression ratio:2.7-3.5,screw material:38CrMoAIA,vacuum heating treatment,surface grinding polishing chromium plating.
Foaming degree:Physical foaming(high-pressure):70%-80%,low pressure:60%-70%,chemical foaming:30%-40%
Host power:20HP   Stripping power:3HP+5HP
Highest output:60KG/H   Highest wire speed:600M/min




Machine parts

No.	Parts name&Specs.	Qty
1	ø300-500mm dual-head Active pay off	1set
2	Straightening workbench	1set
3	High frequency pre-heater	1set
4	Ø35mm host extruder + ø65mm+ø40mm auxiliary extruder	1set
5	Electric control cabinet (skin-foam control system)	1set
6	Skin-foam double layer extrusion crosshead-Taiwan	1set
7	4M constant temperature movable trough with lid	1set
8	Closed water dryer	1set
9	15M single layer cooling trough with lid	1set
10	12M High precision wire accumulator	1set
11	ø477mm dual-wheel capstan haul off	1set
12	ø400-630mm dual-axis take up	1set
13	BETA water capacitance measure instrument	1set
14	Laser diameter tester (Shanghai Online)	1set
15	Nitrogen injection control system (low pressure)	1set
16	High frequency spark tester (Taiwan)	1set

Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens



Our Service
 Pre-Sales Service                          After-Sales Service
* Inquiry and consulting support.     * Training how to install and how to use the machine
* Customized design support.          * Engineers available to service machinery overseas.
* View our Factory.
