• Model NO.：Jaguar R8,R8-N
• Power Supply：5line, 3phase, 380V 50,60Hz
• Start-up Power：60kw
• Temperature Control Method：Pid Close Loop Control +SSR Driving
• Number of Cooling Zones：2
• Power for Warm up：50kw
• Precision：Precision
• Demoulding：Automatic
• Heating System：Electric
• Transport Package：Wooden Box
• Specification：CE
• Trademark：Jaguar
• Origin：China Shenzhen
• HS Code：8515190000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. Jaguar R8/R8-N Power Supply 5line, 3phase, 380V 50/60Hz Start-up Power 60kw Temperature Control Method Pid Close Loop Control +SSR Driving Number of Cooling Zones 2 Power for Warm up 50kw Precision Precision Demoulding Automatic Heating System Electric Transport Package Wooden Box Specification CE Trademark Jaguar Origin China Shenzhen HS Code 8515190000 Production Capacity 100 Sets/Month

Product Description

SMT Assembly/ SMT Reflow Oven with Siemens PLC

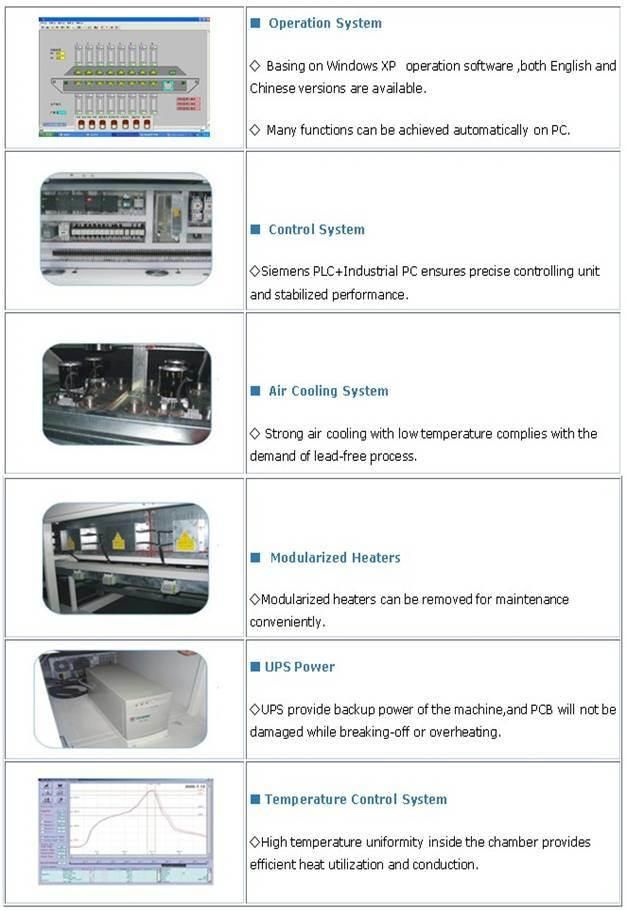

Detail pictures as follow:




Specification:

Model	JAGUAR R8/R8-N
Outside dimension	5200 x 1400 x 1600mm
Standard color	Computer grey
Weight	2200kg
Number of heating zones	Up8/bottm8
Length of heating zones	3000mm
Number of cooling zones	2
Exhaust volume	10M³/min*2 exhausts
Power supply	5line, 3phase, 380V 50/60Hz
Start-up power	60KW
Power for warm up	50KW
Normal power	9KW
Heating pattern	Up & Bottom Hot air
Warming time	Approx. 20minutes
Temp. setting range	Room temp-350 degree
Control system	PLC+ Computer
Temperature control method	PID close loop control +SSR driving
Temperature control precision	± 1.0degree
Temperature deviation on PCB	± 1-2 degree
Data storage	Process data and status storage (80GB)
Abnormal alarm	Abnormal temperature (extra-high/extra-low temp.)
Board dropped alarm	Tower light: yellow warming: Green-normal: Red-abnormal
Max. width of PCB	450mm
Rail Number	1 Lane Or 2 Lane (option)
Components clearance	Top/bottom clearance of PCB is 25mm
Conveyor height	Light → right(option: R→ L)

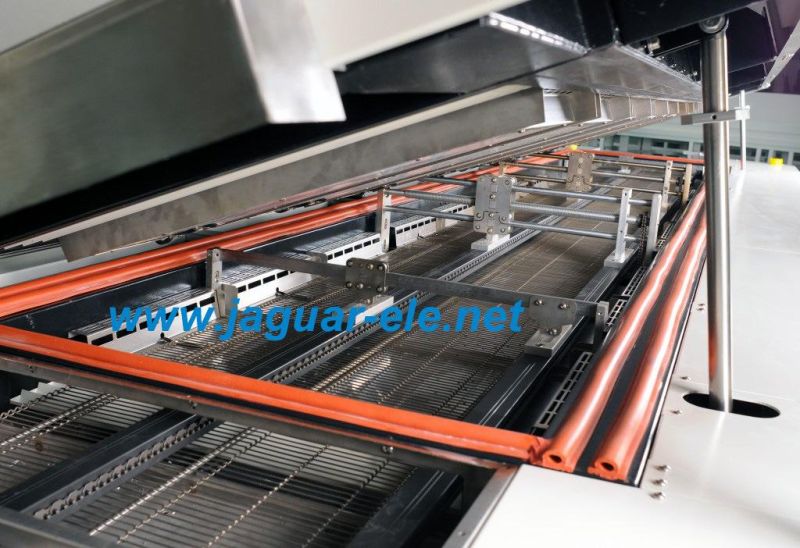

PCB transmission agent	chain +mesh
Conveyor height	900± 20mm
Conveyor speed range	0~2000mm/min

Introduction:
1. Windows XP O/S, so simply as Chinese and English interface onscreen alternative available.
2. The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out, report saving.
4. Temperature and blower speed controlling adjustable independently, to meet the high-precision requirements.
5. To minimize the temperature difference of various volumes of components by newly chambers design, with enhance the reliability and protective of each solder joints.
6. Step forced cooling system to easily achieve the requirements of strict lead-free processes (cooling slope: ≥ 3degree/sec.)
7. Center support and dual rail is optional.
