• Model NO.：Jaguar N250
• Length of Heating Zones：800mm
• Weight：700kg
• Solder Pot Capacity：220kg
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Jaguar
• Origin：Shenzhen, China
• HS Code：8515190000
• Production Capacity：100 Sets,Month

Model No.

JAGUAR N250

Number of Pre-heaters

2

Pre-heater passage

800mm

Body size

1800(L)*1200(W)*1600(H)

Outside dimension

2600(L)*1200(W)*1600(H)

Weight

700KG

Total/steady consumption

11KW/4-6KW

Air supply

0.5MPa

Preheating style

Hot air

Preheater consumption

220V 5KW

Control  method

Press key +PLC (Option: touch screen, PC)

Range of temp. set-point

Room temperature---300ºC

Preheating time

About 10-15mins for setting 150ºC

Solder application

Lead-free / Sn-Pb

Solder pot capacity

220KG

Solder pot temperature

300ºC

Solder pot consumption

380V 6KW

Solder temp. control method

PID&SSR

Wave motor power

500W 220V

Solder melting

About 120mins for setting 250ºC

PCB  width

50-250mm

Conveyor  speed

0-1800mm/min

Conveyor  direction

L→R (R→L optional)

Conveyor Inclination

4-7 º

Flux pressure

3-5 bar

Flux capacity

3.2L

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

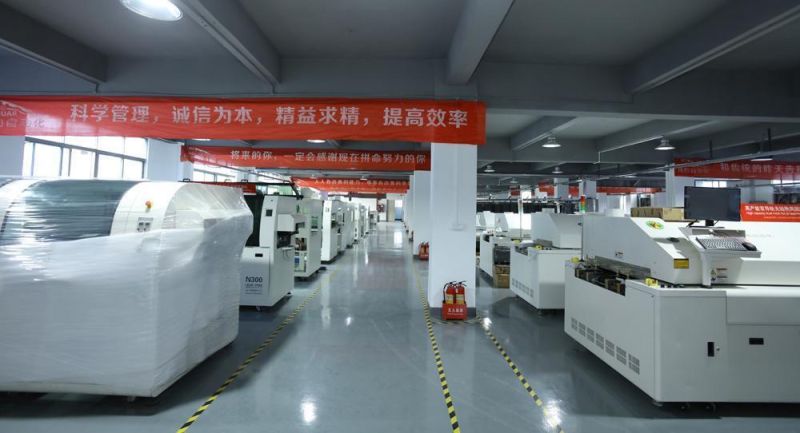

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

Customer and Feedback:

Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey

Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications

Packing and shipping:

What we can do for you?
1.  We provide full SMT and THT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT and THT factory setup
5.  We can solve any question about SMT and THT

Contact:

Jasmine
Shenzhen Jaguar Automation Equipment Co.,Ltd.
