• Model NO.：JAGUAR R10
• Number of Cooling Zones：up 3 Bottom 3
• Length of Heating Zones：3900mm
• Heating Mode：Hot Air
• Cooling Mode：Air Oven:Forced Air
• Max. Width of PCB：450mm
• Transmission Type：Mesh and Chain
• Conveyor Speed：0-2000mm,Min
• Components High：Top and Bottom 25mm
• Power Supply：5 Line 3 Phase 380V 50,60Hz
• Transport Package：Wooden Box
• Specification：5710*1350*1490mm
• Trademark：JAGURA
• Origin：China
• HS Code：8501101000
• Production Capacity：100 Sets,Month

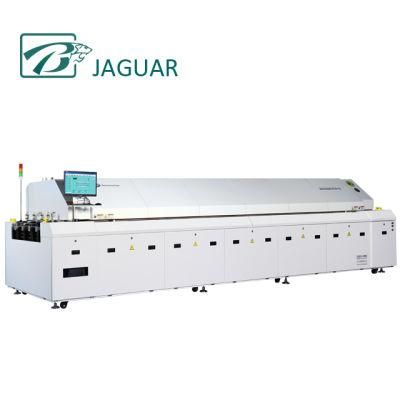

JAGUAR R10



Heating SystemNumber of heating zonesUP 10/BOTTOM 10Number of cooling zonesUp 3 bottom 3Length of heating zones3900mmHeating modehot airCooling ModeAir Oven:Forced airExhaust Volume10m³/min * 2 exhausts




Conveyor SystemMax. Width of PCB450mmMesh belt width500mmTransmission DirectionL→R(or R→L)Transmission Net Height900±20mmTransmission typeMesh and chainRange of rail width0-450mmConveyor speed0-2000mm/minAuto/manual LubricationstandardFixed rail sideFront rail fixed(option: rear rail fixed)Components highTop and bottom 25mm







Control systemPower supply5 line 3 phase 380V 50/60HzTotal power50kwStarting power48kwNormal power consumption10KWWarming timeAbout 20 minsTemp. setting rangeRoom temperature-300ºCTemp. control methodPID close loop control & SSR drivingTemp. control precision±1ºCTemp. deviation on PCB±2ºCData storageProcess Data and status storage(80GB)Nozzle plateAluminum Alloy PlateAbnormal AlarmAbnormal temp. (extra-high/extra-low temp.)Board dropped alarmTower light:Yellow-warming, Green-normal, Red-abnormal
GeneralDimension(L*W*H)5710×1350×1490mmWeight2150KGColorComputer gray

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

Customer and Feedback:

Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey

Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
