• Model NO.：N200
• Voltage：380V
• Lead Time：15days
• Melting Time：80min
• General Power：6kw
• Flux Capacity：3.2liter
• Transport Package：Vacuum Packed in Wooden Cases
• Specification：1400*1200*1600mm
• Trademark：JAGUAR
• Origin：Shenzhen, China
• HS Code：8515190000
• Production Capacity：100PCS,Mounth

Basic Info.

Model NO. N200 Voltage 380V Lead Time 15days Melting Time 80min General Power 6kw Flux Capacity 3.2liter Transport Package Vacuum Packed in Wooden Cases Specification 1400*1200*1600mm Trademark JAGUAR Origin Shenzhen, China HS Code 8515190000 Production Capacity 100PCS/Mounth

Product Description

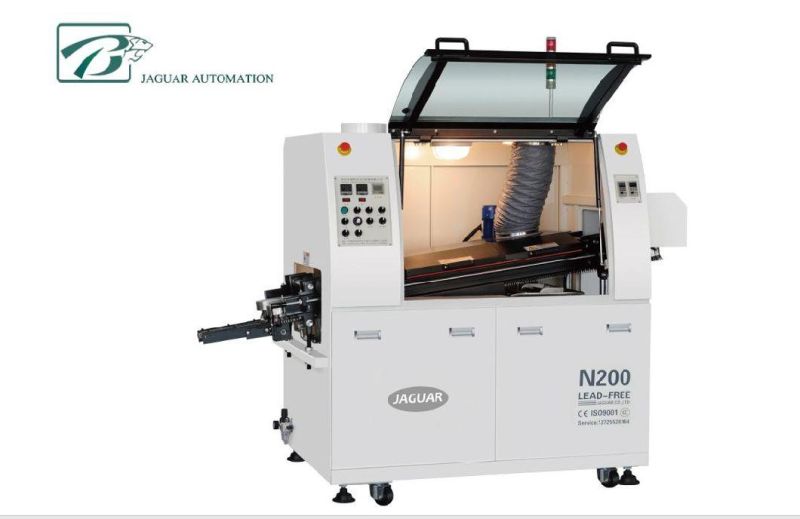

Product DescriptionManufacturing DIP Automatic Lead Free Wave Soldering Machine
Introduction:
1. Automatic conveying power system and auto synchronous board feeding functions.2.Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.3.Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
4.PLC is used to control the machine, to ensure the reliability and stability of the system.
5.Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.6.Special alloy solder fingers, strengthened double v-groove.7.Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.8.Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.10.Timer startup feature for solder pot, solder melted within 90 minutes.11.Automatic finger cleaner ensure the cleanliness of solder fingers.Intelligent monitoring and alarm system ensure the stable performance and operators' safety.
Specification:

Model No	JAGUAR N200
Number of Pre-heater	1
Pre-heater passage	450mm
Body size	1400*1200*1600
Outside dimension	2100*1200*1600
Weight	500KG
Component lead	Within 10 mm
Total/steady consumption	9KW/3-5KW
Air supply	0.5MPa
Preheating style	IR(standard)
Preheater consumption	220V 5KW
Control  method	Press key +PLC(Option: touch screen, PC)
Range of temp. setpoint	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder Application	Lead-free / Sn-Pb
Solder pot capacity	180KG
Solder pot temperature	300ºC
Solder pot consumption	380V 6KW
Solder temp. control method	PID&SSR
Wave motor consumption	500W 220V
Solder melting	About 120mins for setting 250ºC
PCB  width	50-250mm
Conveyor  speed	300-1800mm/min
Conveyor  direction	L→R (R→L optional)
Conveyor   inclination	4-7 º
Flux pressure	3-5 bar
Flux capacity	3.2L
