Professional and Stable DIP Wave Soldering Machine for LED Drive
Shenzhen Jaguar Automation Equipment Co., Ltd.- Condition：New
- Certification：CCC, RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- PCB Width：30-350mm(400,450,500,610mm)
- Solder Pot Capacity：320kg
Base Info
- Model NO.：N350
- Running Power/General Power：6-8kw,20kw
- Preheating Zone：1600mm 3 Independent Hot Air Preheating
- Conveyor Speed：200mm-1800mm,Min
- Melting Time：80 Minutes
- Solder Pot Material：316stainless Steel,All Titanium,Cast Iron Enamel
- Preheating Power：10kw,Zone
- Conveyor Motor：3pH 380V, 60W 3pH 380V, 90W
- Flux Capacity：6.5liter
- Transport Package：Wooden Box
- Specification：3900*1420*1750mm
- Trademark：Jaguar
- Origin：China Shenzhen
- HS Code：85151900
- Production Capacity：100PCS,Month
Description
Solder pot
Parts List:
| NO. | Spares Name | Brand | Origin |
| 1 | Display | Acer | China |
| 2 | Computer | Industrial computer | China |
| 3 | PLC | Siemens | Germany |
| 4 | Temperature control module | Siemens | Germany |
| 5 | 90W conveying Motor | Panasonic | Japan |
| 6 | Solder pot wave motor | ZIK | China |
| 7 | Preheating Coils | Taizhan | China |
| 8 | Solder pot heating tube | Taizhan | China |
| 9 | Main Switch | Mitsubishi | Japan |
| 10 | Contactor and currency limiter | OMRON | Japan |
| 11 | Intermediate relay | OMRON | Japan |
| 12 | Fuse holder and fuse tube | OMRON | Japan |
| 13 | Programming controller | CARLO GAVAZZI | Switzerland |
| 14 | Frequency Converter | Delta | Taiwan |
| 15 | Power button and indicator light | Izumi | Japan |
| 16 | Temperature detector | Nihon Dennetu | Japan |
| 17 | SSR | CARLO GAVAZZI | Switzerland |
| 18 | Photoelectric sensor | SICK | Japan |
| 19 | Cylinder | SMC | Japan |
| 20 | Flux sprayer | 7-UP | Taiwan |
| 21 | Patented titanium alloy claws | JAGUAR | China |
| 22 | Air/Main Switch | CHNT | China |
| 23 | AC Contactor | CHNT | China |
| 24 | Button Switch | France |
About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

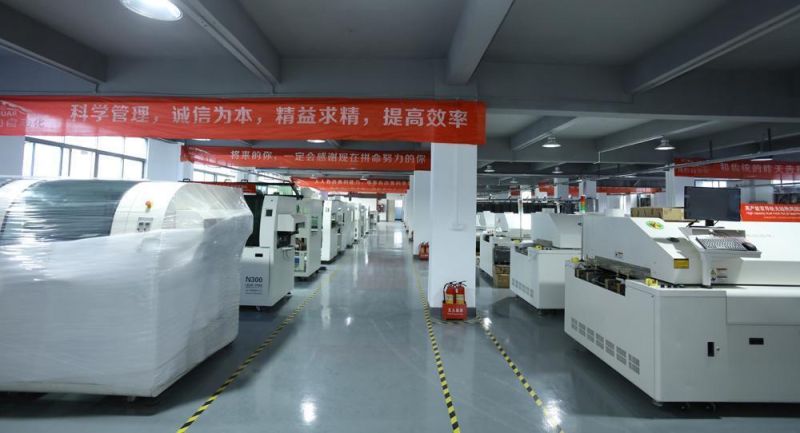

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
Customer and Feedback:
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
Packing and shipping:
What we can do for you?
1. We provide full SMT and THT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT and THT factory setup
5. We can solve any question about SMT and THT
