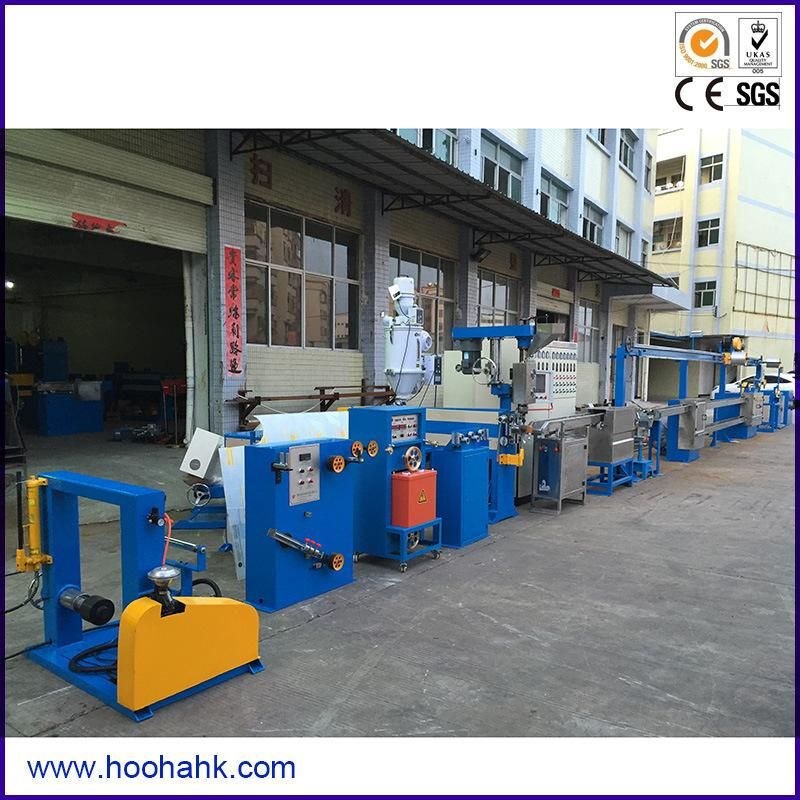

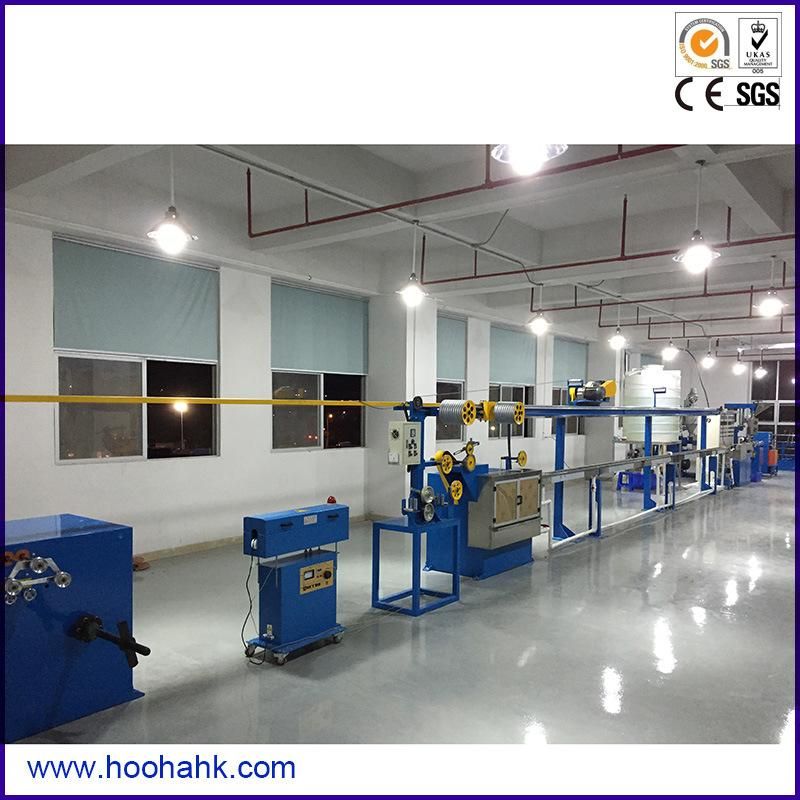

Wire and Cable Making Equipment with Siemen Motor
HOOHA Co., LIMITED- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Motor：Siemen
Base Info
- Model NO.：HH-70MM,80,90MM
- Inverter：Yaskawa
- Bearing：Japan-NSK
- Color：Customized
- Model Number：Hh-70
- Pay-off Line Type：Double Axes,Dynamic Drum Take-up
- Pay-off Bobbin Size：Pn400-630
- Screw Diameter(mm)：70
- L/D of Screw：25:1 Bm Type
- Extrusion Capacity(Kg/H)：140
- Host′s Power：30HP
- Wire Spec.：1.5-12
- Cooling Device：Single Layer,Double
- Accumulator Capacity(M)：200
- Wire Speed：Max500
- Transport Package：Plastic Package
- Specification：CE ISO SGS
- Trademark：HOOHA
- Origin：Dongguan
- HS Code：8477209000
- Production Capacity：10 Sets,Month
Description
500mm-630mmTake-up line power(HP) 5 5 7.5
4, Application:
Applied to BV,BVV,BVR,RV,Nylon sheath, and halogen-free environmently-friendly building wire.
5, Features:
1) PLC + professional numerical control software, industrial computerized operation. Store, display and revise the technic parameter, wholly controlling, adjusting and monitoring the state of the producing.
2) Equipped with the advanced, special universal cross-head, two-layer crossed-head, to fulfill the precise extruding technical requirements.
3) Use Japanese special design screw, fulfill different kinds of material extruding.
4) This line is moveable, horizonal type, up/down, left/rightf, front/back, adjustable.
5) Use high-efficiency pay-off unit, non-stop operation.
6) Max speed: 500m/min
6, Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF
7,Consisting Components:
1,double-shaft pay-off rack
2,straightening workbench
3,main extruder
4,automatic dryer and hopper
5,electrical control box
6,active water tank
7,OD tester
8,high speed printing machine
9,fixed water tank
10,Meter counter
11,accumulate
12,spark tester
13, double-shaft capstan
14,double-shaft take-up machine
8.After-sales Service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: plastic packing ensure the goods' safety during the transportation.
4).Electrical engineers(10), mechanical engineers(8), software engineers(5). They all have over 10-year experience
9.Contact information:
Phone: +8615015409397
Web: http//:hoohaco.en.made-in-china.com
http://hoohaco.en.made-in-china.com/
Address: 3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China
10.Where are we:
Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
11, Advantages:
