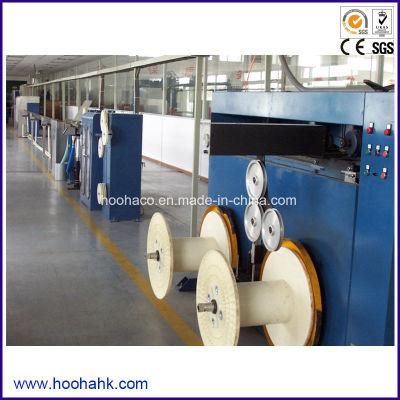

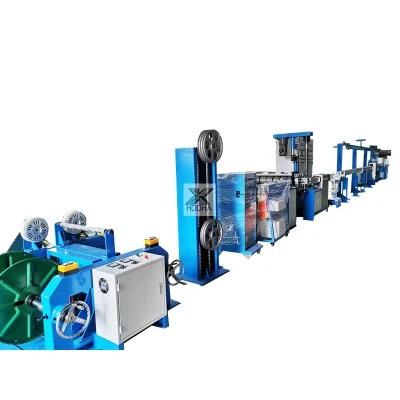

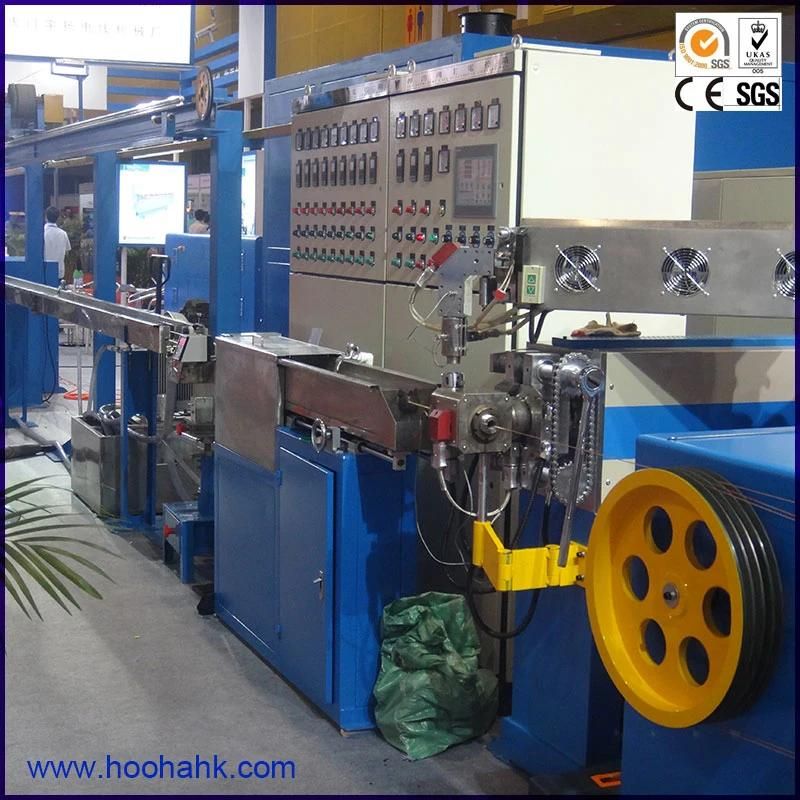

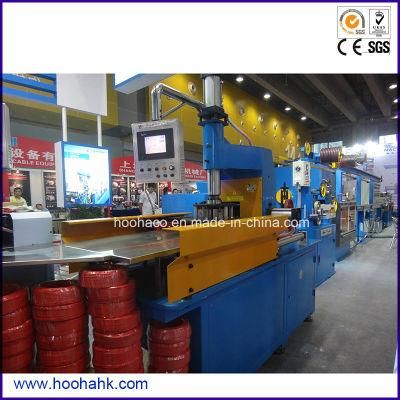

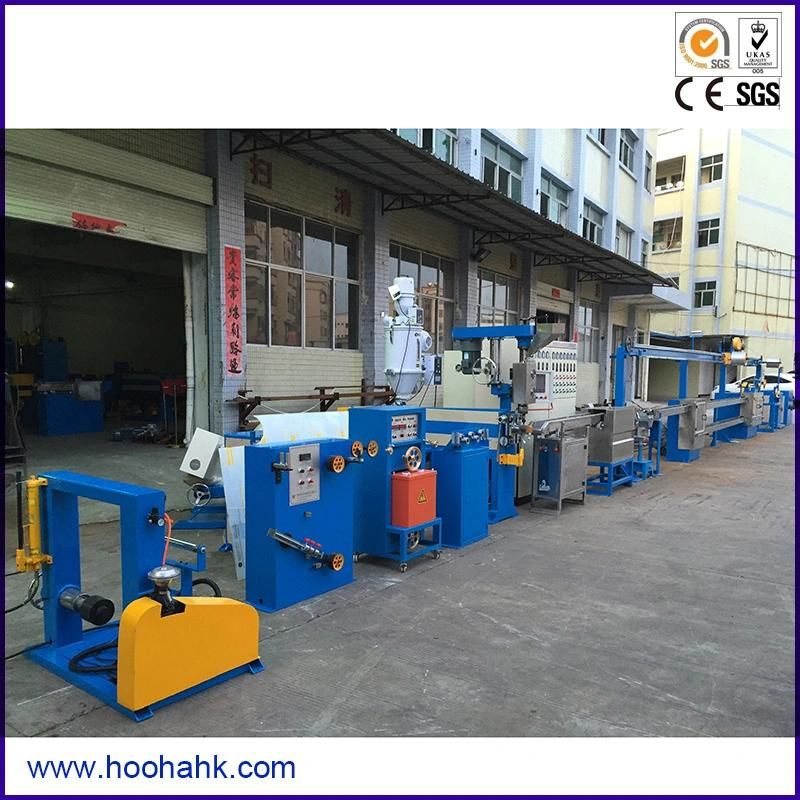

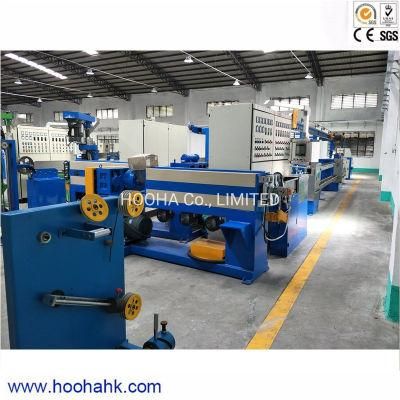

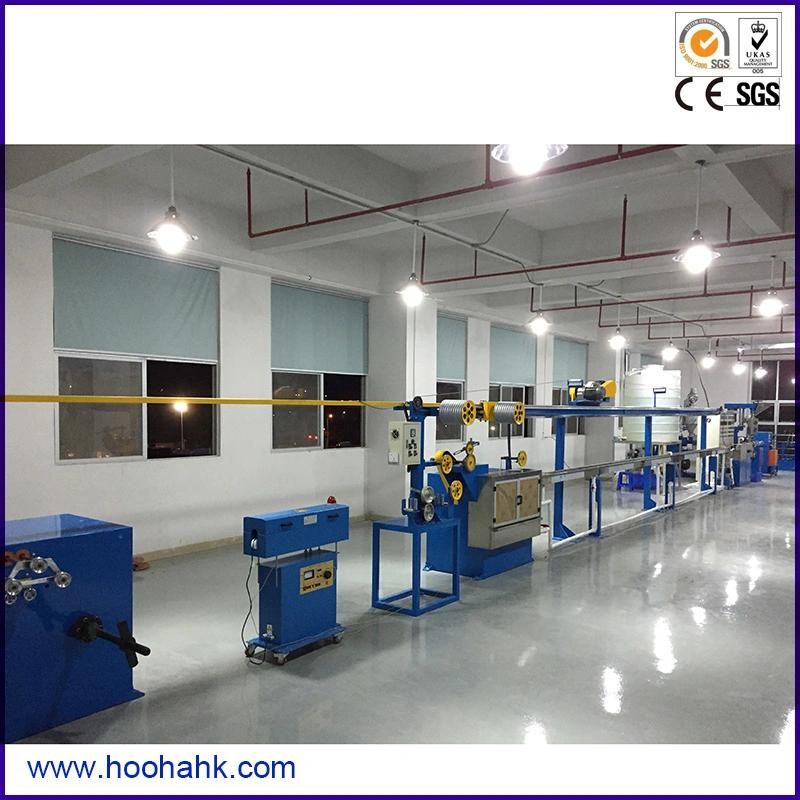

High Speed Wire Cable Sheathing Extruder Machine
HOOHA Co., LIMITED- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Color：Customized
Base Info
- Model NO.：HH-60,70,80,90
- Usage：Extrusion
- Motor：Siemen
- Inverter：Yaskawa
- Bearing：Japan-NSK
- Model Number：Hh-60
- Pay-off Line Type：Double Axes,Dynamic Drum Take-up
- Pay-off Bobbin Size(mm)：Pn400-630
- Screw Diameter(mm)：65
- L/D of Screw：25:1 Bm Type
- Extrusion Capacity(Kg/H)：100
- Main Unit Power：20HP
- Wire Spec.(mm)：0.8-8
- Capstan Power：3HP
- Wire Speed：Max500
- Transport Package：Plastic Package
- Specification：CE ISO SGS
- Trademark：HOOHA
- Origin：Dongguan
- HS Code：8477209000
- Production Capacity：10 Sets,Month
Description
PN500-630Take-up line power 3HP 5HP 5HP 5HP
3, Application:
Applied to BV,BVV,BVR,RV, Nylon sheath, and halogen-free environmently-friendly building wire.
4, Features:
1) PLC+ professional numerical control software, industrial computerized operation. Store, display and revise the technic parameter, wholly controlling, adjusting and monitoring the stable of the producing.
2) Equipped with the advanced, special universal cross-head, two-layer crossed-head, to fulfill the precise extruding technical requirements.
3) Use Japanese special design screw, fulfill different kinds of material extruding.
4) This line is moveable, horizontal type, up/down, left/right, front/back, adjustable.
5) Use high-efficiency pay-off unit, non-stop operation.
6) Max speed: 500m/min
5. Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF
6, Consisting Components:
1,double-shaft pay-off rack
2,straightening workbench
3,main extruder
4,automatic dryer and hopper
5,electrical control box
6,active water tank
7,OD tester
8,high speed printing machine
9,fixed water tank
10,accumulate
11,meter counter
12, capstan
13,power frequency sparker
14,double-shaft take-up machine
7. After-sales Service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: plastic packing ensure the goods' safety during the transportation.
4).Electrical engineers(10), mechanical engineers(8), software engineers(5). They all have over 10-year experience
