• Model NO.：WL-6XC,WL-6LC,WL-6WC
• Power：2300W
• Crimp Width：12.5mm Can Be Customized
• Stroke：40mm
• Output：100kn
• Weight：180kg
• Transport Package：Wooden Carton
• Specification：700x860x1260mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-6XC/WL-6LC/WL-6WC Power 2300W Crimp Width 12.5mm Can Be Customized Stroke 40mm Output 100kn Weight 180kg Transport Package Wooden Carton Specification 700x860x1260mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

 WL-6WC/6LC/6XC Low noise large cable terminal servo crimping machine with die set free to change

Features:

1.Suitable for crimping process with customized or cold-pressed terminals;
2.No need to change crimping applicator, servo control system with high accuracy;
3. Separated crimping interface, suitable for intermediate junction, and new energy right angle terminalcrimping;
4.Actual terminal square can be adjusted, with more clearer vision;
5. Compact structure, space saving and low work noise.

Specifications:

Model :	WL-6WC
Wire range	10-120mm²
Crimping force	200KN
Diameter. Max	38mm
Crimping width	12.5mm (Can be special ordered )
Weight	160kg
Dimension	700×860×1260mm
Power	220v50Hz
Motor	2300w

 Features:
1. This crimping machine is mainly designed for large tubular terminal, closed cold-pressed terminals.
2. It is widely used in new energy cable, charging cable and charging gun wire harness processing field.
3. Industrial control chip with high precision servo drive make sure the machine running very stable.
4. 10-120mm² closed tubular terminal crimping no need to change die set, crimping diameter can be adjusted in seconds.
5. Suitable for crimping operation of non-standard terminals or crimping terminals.
6. No need to change the applicator and with high accuracy.
7. Crimping joint can be completely opened, and is suitable for pressing the middle connection or the large aquare terminal.
8. It can adjust the position with the actual square wire.
9. Compact atructure, apace saving and low working noise. Specifications:

Name	Hexagon Terminal Crimping Machine
Model	WL-6LC
Wire diameter scope	10-120mm2(can customize for 240mm2)
Stroke	350mm
Wire size	AWG10#,240mm can be customized
Cutting Tolerance	≤ ±(0.5+0.002xL) (L=Cutting Length)
Crimping width	12.5mm
Power	2300W
Termina capacity	200KN
Voltage/ frequency	220V/50Hz 110V/60Hz
Weight	120KG
Size	500x450x480mm

Features:
1.  The industrial grade control chip cooperates with the high precision servo drive to make the machine run stably;2.  PLC control system, instantaneously change the crimping range of different terminals, touch screen operation mode;3. 2. 5-35 mm2 closed tubular terminal crimping without changing the crimping die, instantly changing the size of the cutting edge;4.  Suitable for crimping operations of non-standardized terminals or crimped terminals;5.  No need to change the mold, high accuracy6.  The pressure joint can be fully opened, suitable for crimping of medium or indirect continuous or large square terminals. 7.  The position of the actual square of the wire can be adjusted;8.  Compact structure, space saving and low noise.  Specifications:

Model	WL-6XC
Wire diameter range	2.5-35mm2 (AWG2#-AWG13#)0.5-10 mm2 can be customized
Pressure	40KN
Stroke	240mm
Crimp width	8mm (can be customized)
Weight	80KG
Size	560*370*300 mm
Power supply	220V 50HZ
Power	1500w

Product Show:

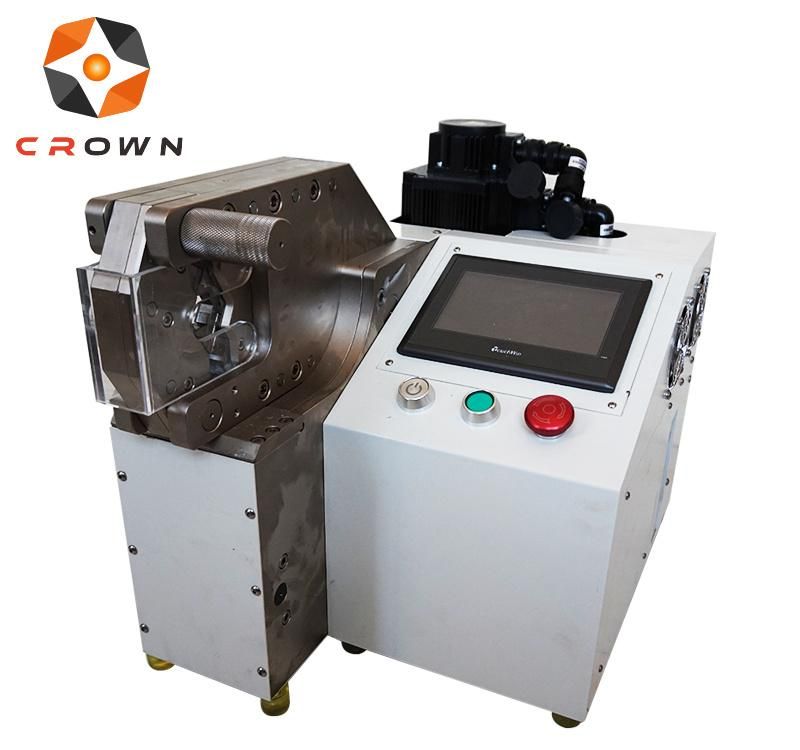

WL-6WC As per below picture

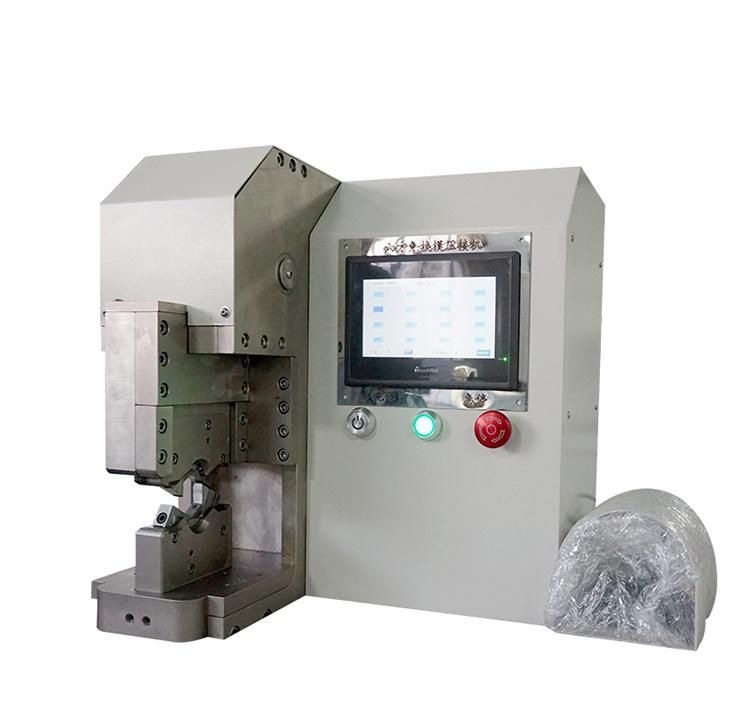

WL-6LC As per below picture

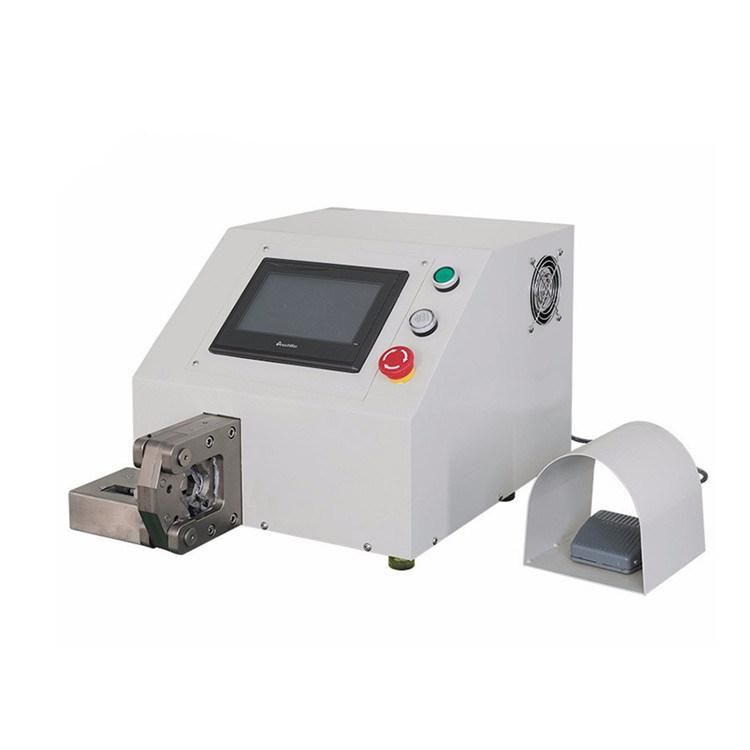

WL-6XC As per below picture

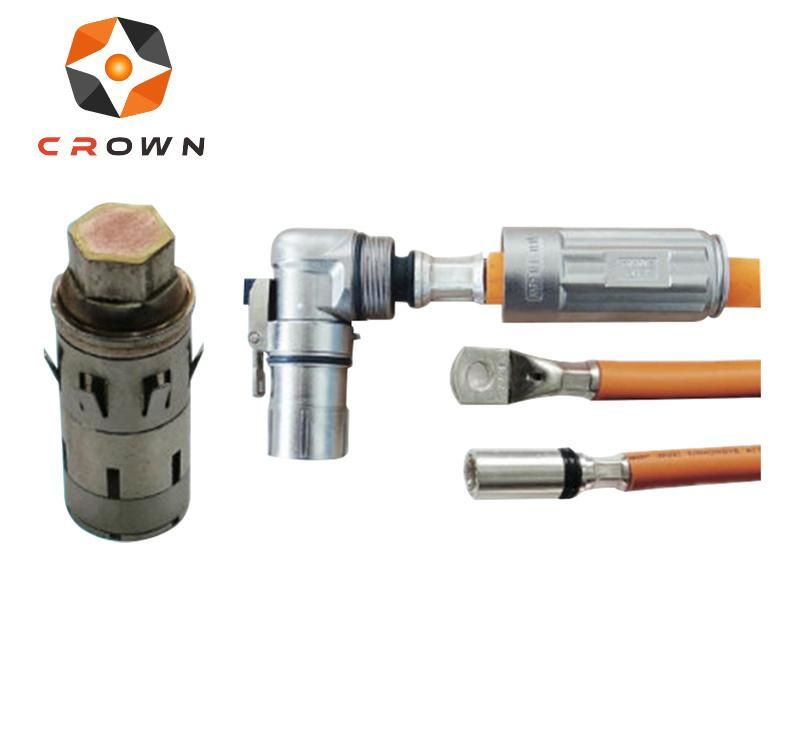

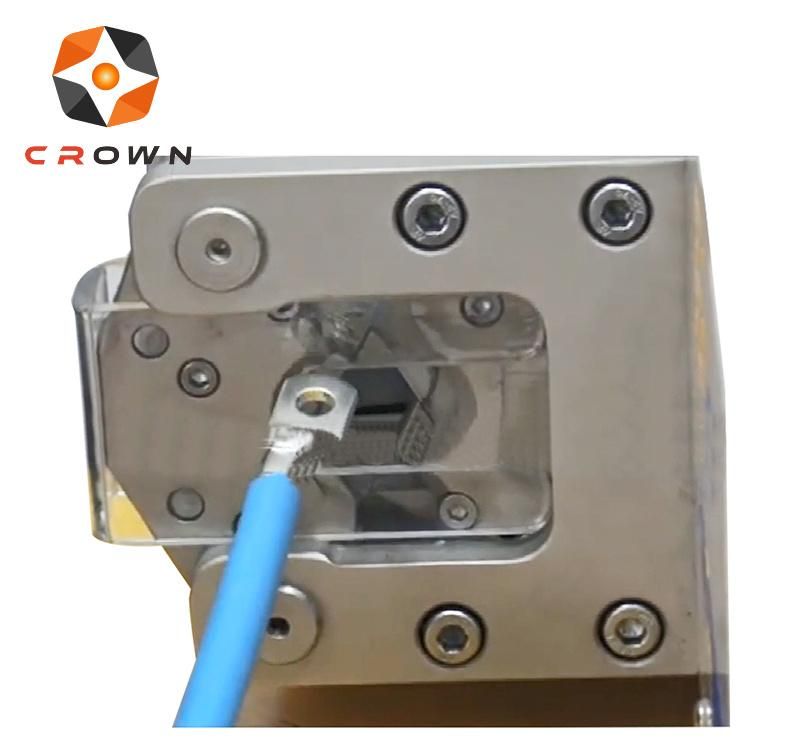

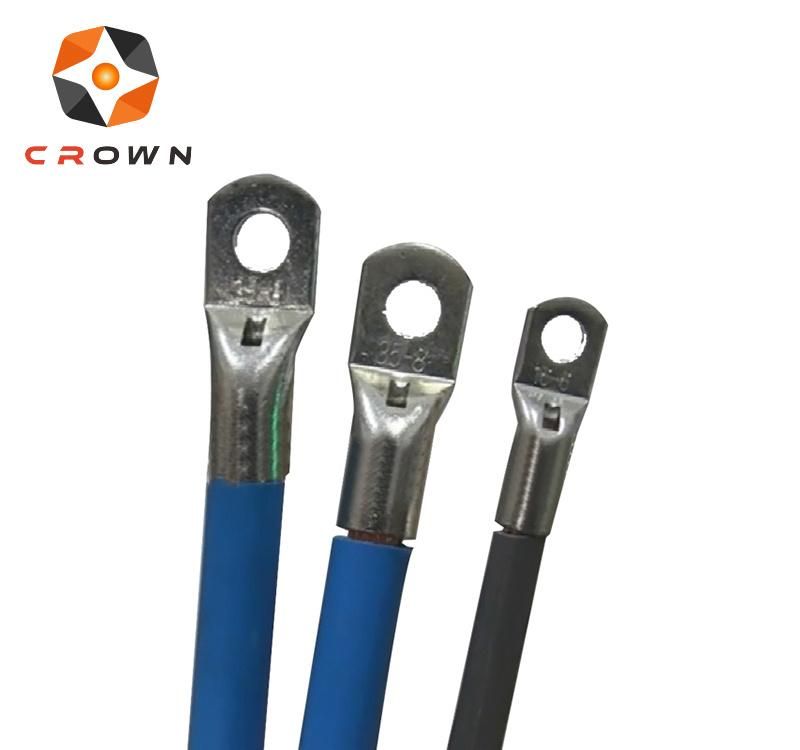

Application Terminal:

This machine is mainly used for crimping of large square tubular terminals;

10-75mm2 closed tubular terminal crimping without changing the tool, instantly change the size of the knife edge;

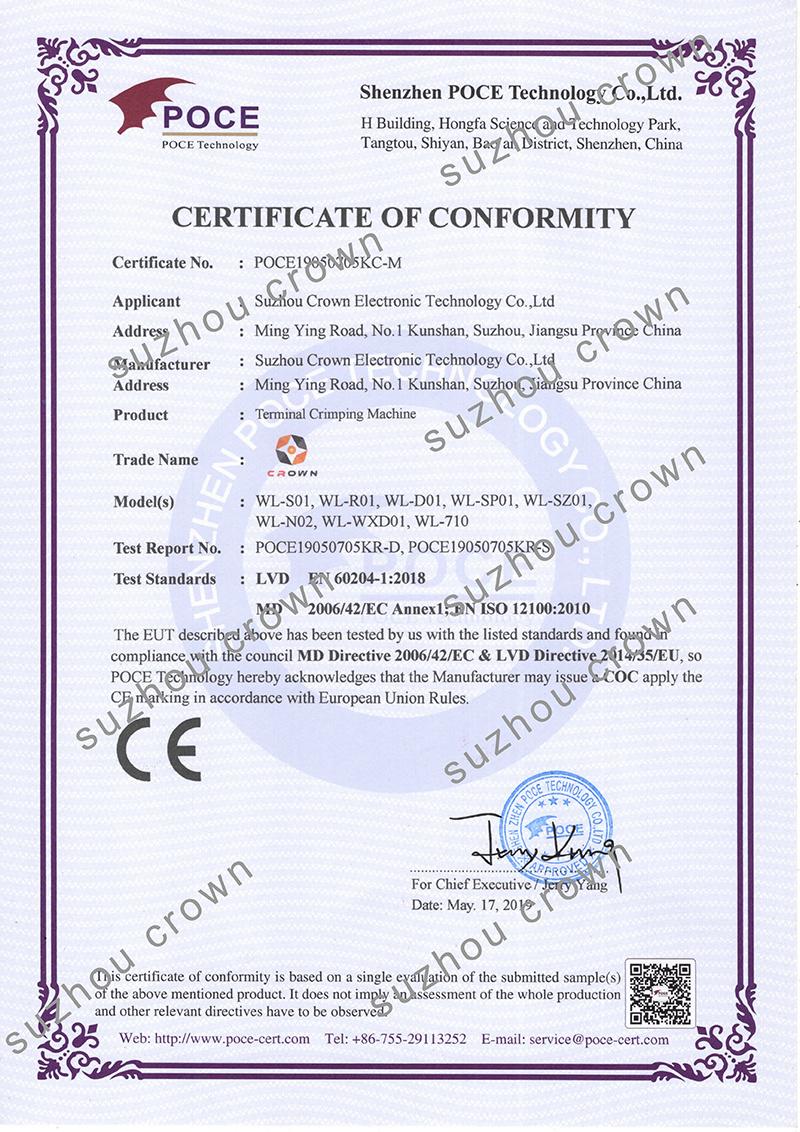

Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .
