• Model NO.：WL-SZ01
• Stripping Lenght：0-10mm
• Tinning Length：0-10mm
• Productivity：6000-7000 Pieces,Hour
• Cutting Accuracy：+0.1mm(L=100mm)
• Weight：260kg
• Dimension：1000mmx700mmx1500mm (Exclude Raised Portion)
• Transport Package：Wooden Carton
• Specification：700x860x1260mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-SZ01 Stripping Lenght 0-10mm Tinning Length 0-10mm Productivity 6000-7000 Pieces/Hour Cutting Accuracy +0.1mm(L=100mm) Weight 260kg Dimension 1000mmx700mmx1500mm (Exclude Raised Portion) Transport Package Wooden Carton Specification 700x860x1260mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

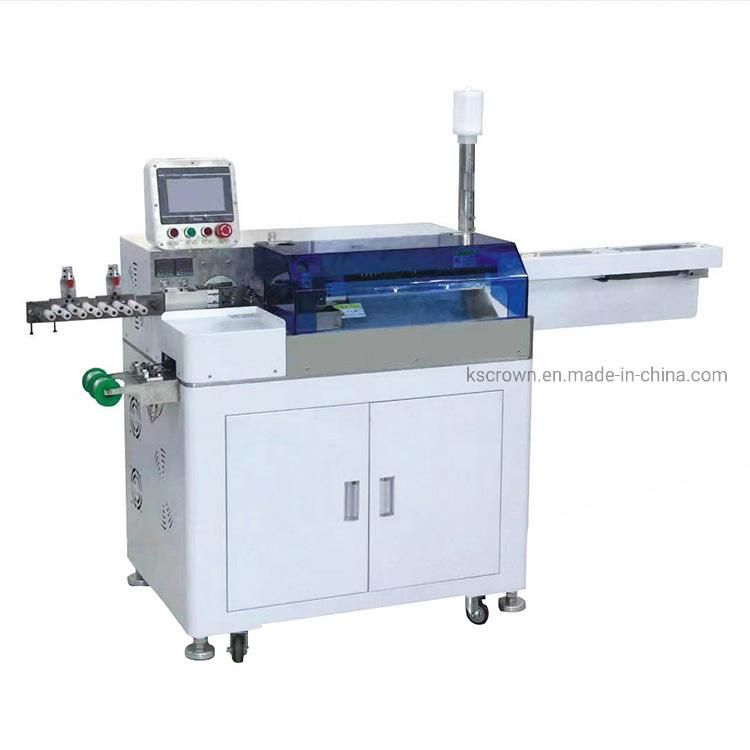

  WL-SZ01 Full automatic wire cutting stripping twisting tinning machine

Features:



1. The design of this machine adopts the Oriental stepping motor to complete all operation and machining wire range.

2. The machine adopts the principle of the computer stripping machine, the roller delivers the line, the length can be adjusted freely.

3. All the electric and pneumatic parts of the machine adopt the Japanese SMC and the European mother dragon digital air pressure and temperature control devices, sensing devices, etc., so as to make the whole machine more accurate.

4. It is said that the machine with tin and tin in the machine with the 90 point of the machine is used to touch the tin, and it is the same with the step control light, fast and the quasi-higher performance.Tin slag, cutting scrap adopts suction, blow device, the machine is clean and tidy.


Specifications:

Model	WL-SZ01
Source	AC 220V / 50/60hz single phase
Work energy	single double head can be: cut off;Peeling;Screw the tin with a twist/rub.A half strip for glue
Productivity:	Frequency 2000 times/time
Walking line	10 lines (according to product specifications)
Capacity	20K/hour (according to the product specifications)
Applicable wire	the diameter of the wire is 0.3 - 3.0mm (AWG34 # -- AWG16 #).
Cutting line length	8mm - 1100mm
Stripping length	0.1 mm - 10.0 mm
Torsion length	3.0mm - 10.0mm
Tin length	0.1mm - 10.0 mm
Air pressure	7kgf (clean and dry air should be used
Body size	600mm * 800mm * 1100mm
Weight	280KG

Product Show:

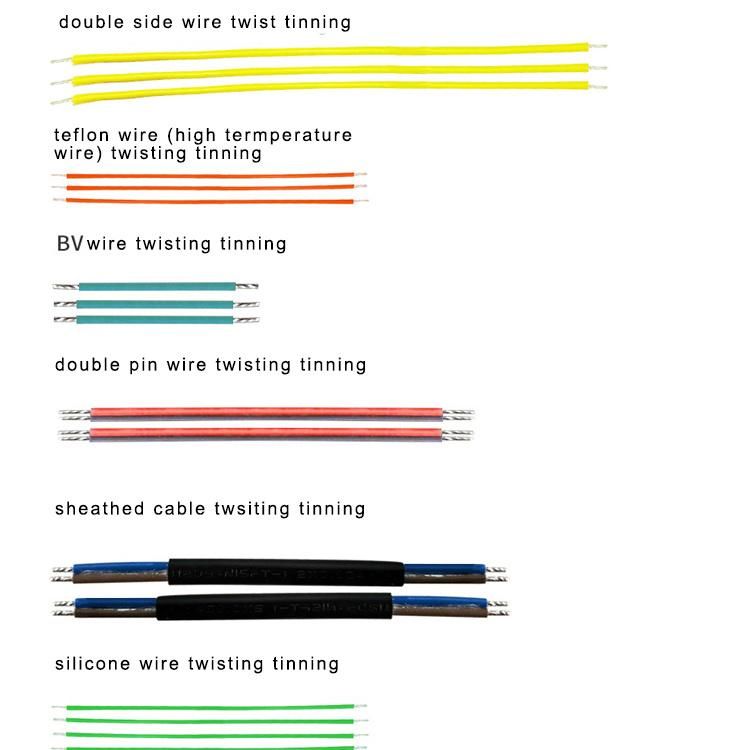

Application Terminal:






Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like





Company Information

 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance

If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.

Contact:
Pls contact Suzhou Crown Kitty for price inquiry or any other questions/doubt.
