Factory Price High Stability Quality Hot Air SMD Reflow Soldering Oven 10 Heating Zones
Shenzhen Jaguar Automation Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Installation：Vertical
- Reflow Oven：for SMD Reflow Soldering Usage
Base Info
- Model NO.：Jaguar F10
- Heating Zones：Up10,Bottom10
- Cooling Zone：2 Zones
- Length of Heating Zones：3890mm
- Max.PCB Size：400mm
- Guide Rails Width：50-400mm
- Conveying Speed：0-2000mm,Min
- Heating Method：Hot Air Convection
- Control System：PC+PLC
- Precision：High Precision
- Transport Package：Wooden Case
- Specification：CE
- Trademark：Jaguar
- Origin：Shenzhen, China
- HS Code：85151900
- Production Capacity：100PCS,Month
Description
Controlling system Electric supply 3 phase 380V 50/60 HZ(3 phase 220 V 50/60 HZ) Starting power Approx 42KW/45KW Normal power consumption Approx 8-12KW Tarming time Approx 25 mins Temp. setting range Room temp. -300ºC Temp. control method PID Close Loop Control+SSR Driving Temp. control precision ±1ºC Temp. deviation on PCB ±2ºC(by Jaguar Board Test Standard) Nozzle plate Aluminilum alloy plate Data storage Process data and status storage(80GB) Abnormal alram Abnormal temp. (extra-high/extra-low temp. ) Board dropped alarm Tower light: yellow-warming, green-normal, red-abnormal Cooling system Cooling method Air Oven: Forced Air. Nitrogen Oven: Water Chiller
Product Features:
1. The brand computer + Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ºC (if the computer crash accident, and can realize off-line work, do not affect production) and to ensure that the control system is stable and reliable;
2. Windows operating interface, powerful, simple operation,
3. On the cylinder body open automatic lifting machinery, ensure safe and reliable;
4. Equipped with mesh belt tensioning device, transport smoothly and no shaking, deformation, ensure smooth PCB transport; Synchronous guide transmission mechanism (and automatic SMT machine online connection), ensure that guide adjustable wide precision and high service life;
5. Automatic control lubrication system, through the set come on time and fuel charge, automatic lubrication transmission chain;
ºC6. All heating zone all by computer PID control (upper temperature zone and lower temperature zone implementation independent temperature control, can divide temperature area alone. Can open division heating, in order to reduce starting power);
7. Net/chain transmission by computer to carry out the whole closed loop control, can meet different kinds of PCB production at the same time
8. With fault sound and light alarm function;
9. With leakage protector, ensure that the operating personnel and control system security;
10. The built-in UPS and automatic delay shutdown system to guarantee the PCB and return welder in power or overheat not damaged;
11. The German ERSA world leading microcirculation heating mode, and the upper and lower independent air microcirculation system, temperature uniformity and thermal compensation high efficiency, high efficient supercharged accelerated air duct, greatly improve the circulating hot air flow, temperature quickly (about twenty minutes), thermal compensation for high efficiency, high temperature welding and curing;
12. The upper and lower every temperature zone with independent temperature inductive sensor, real-time monitoring and compensation every temperature zone temperature balance;
13. Have password administration of the operating system, to prevent the irrelevant personnel changes to the process parameters, operation records management traceability process parameters change process, improve the management convenient. For storing user existing temperature speed setting and Settings of the temperature curve, and can be used for all data and curve printing;
14. Integrated control window, the computer switch, test curve, print curve and data transmission are easily operation, humanized design. Equipped with three-channel temperature curve online testing system, may at any time to check welding objects by the actual temperature curve (without the other match temperature curve tester);
15. From international technology quick cooling system, use a magnifying glass type efficient rapid cooling, cooling speed can reach 3.5 ~ 6 ºC / SEC, management is very convenient; The outer forced cooling device, ensure that spot crystal effect (Option selected items, the standard configuration for forced natural air cooling).

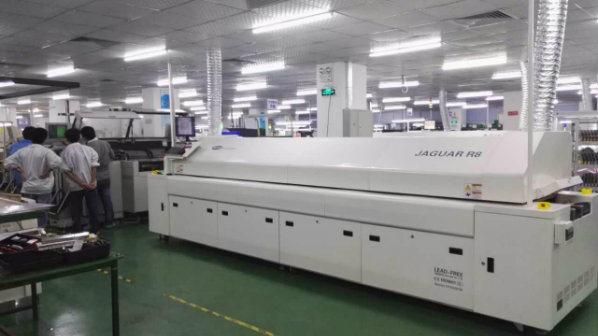

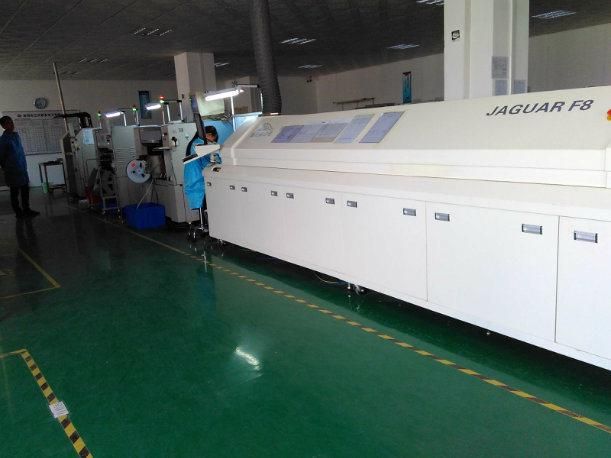

Customer Workshop:
