Automatic Large Multi-Cores Cable Strip Cut Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • After-sales Service：1year
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Semiautomatic

Base Info

  • Model NO.：WL-30HT
  • Power Supply：220,110V, 50,60Hz
  • Model：Wl-30ht

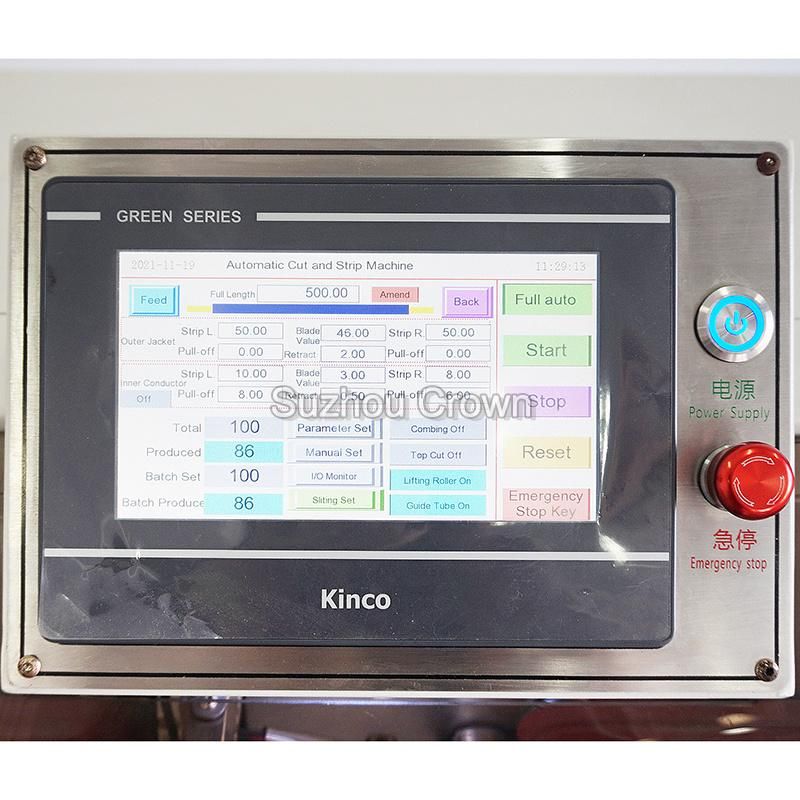

  • Display：7-Inch True Color Touch Screen
  • Applicable Wire Sizes：1-30 Square mm
  • Cutting Length：1mm-99, 999.99mm
  • Cutting Tolerance：Within 0.002*L (L=Cutting Length)
  • Stripping Length：Wire Head Full Stripping: 1-190mm, Wire Head Half-
  • Tail Stripping：Wire Tail Full Stripping: 1-80mm, Wire Tail Half-S
  • Middle Stripping：Optional
  • Max. Diameter of Guiding Pipe：16mm
  • Productivity：2, 000 PCS,Hour
  • Wire Feeding Method：Belt Feeding
  • Transport Package：63*73*71cm
  • Specification：130kg
  • Trademark：Crown
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：1000set,Month

Description

Sheathed cables, PVC cables, etc.Stripping range6-30mm2Cutting length1mm-99999.9mmCutting tolerancewithin 0.002*L (L=cutting length) Max guiding pipe dia.Φ16Tool materialHigh quality imported high speed steelCapacity2300pcs/hRemarksThe machine can be customized for processing special cables, and the sample cable should be sent to us for test.

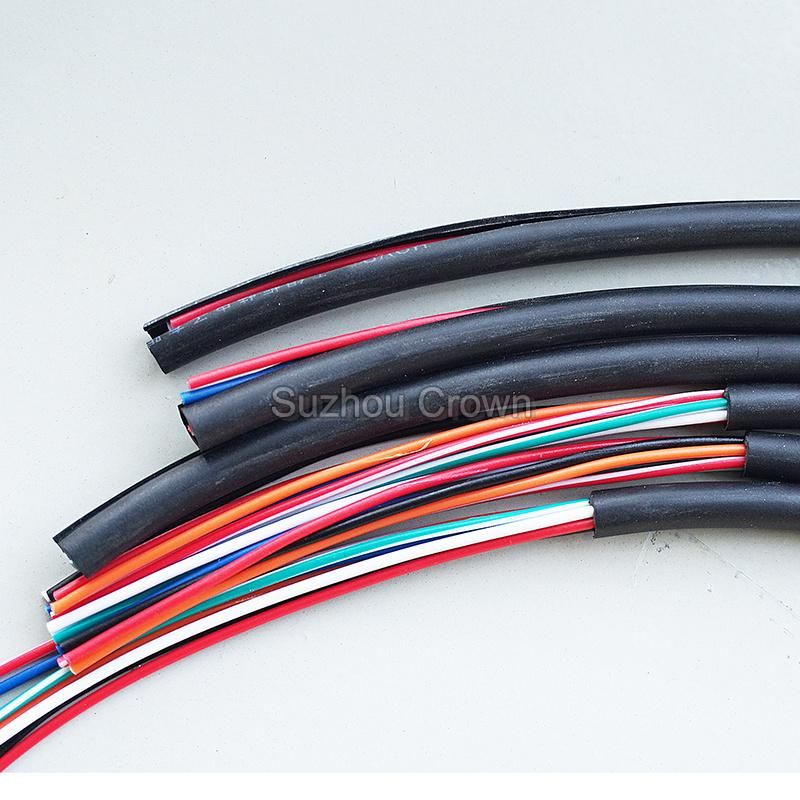

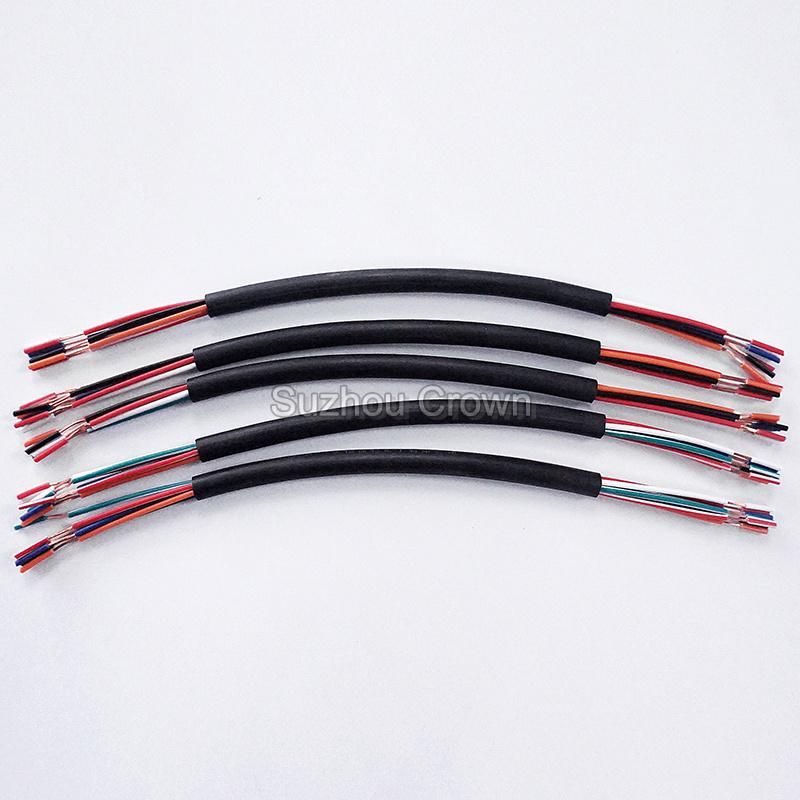

Application
Automatic Large Multi-Cores Cable Strip Cut MachineAutomatic Large Multi-Cores Cable Strip Cut Machine
Automatic Large Multi-Cores Cable Strip Cut MachineAutomatic Large Multi-Cores Cable Strip Cut Machine

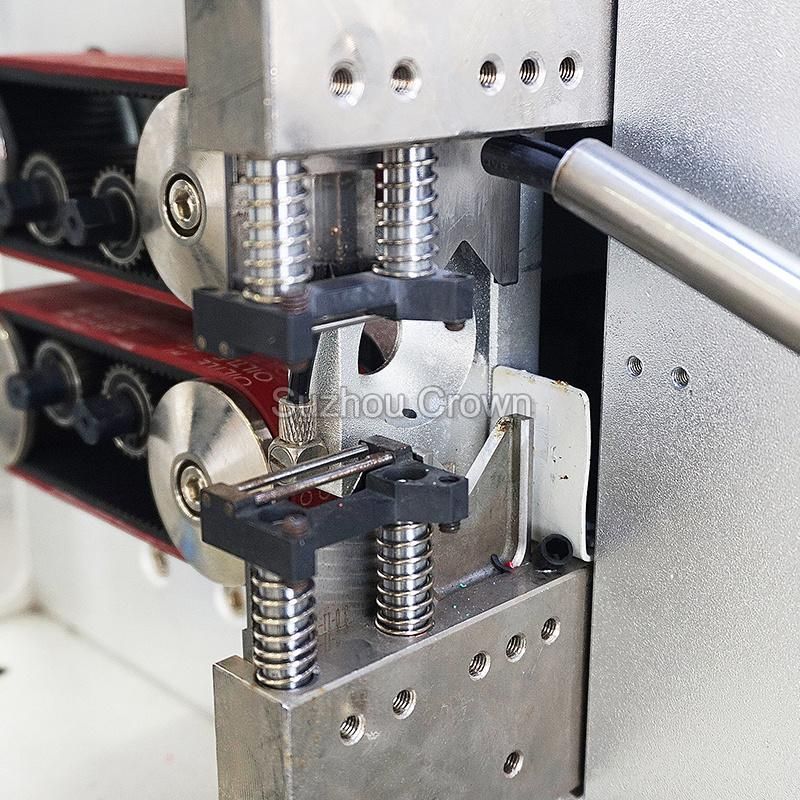

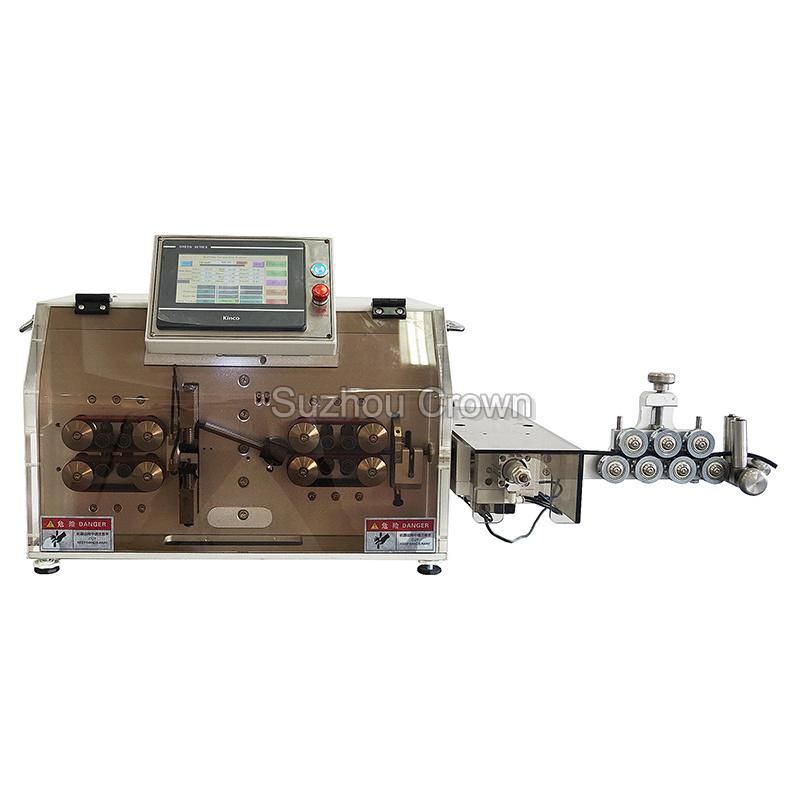

Machine:
Automatic Large Multi-Cores Cable Strip Cut MachineAutomatic Large Multi-Cores Cable Strip Cut MachineAutomatic Large Multi-Cores Cable Strip Cut MachineAutomatic Large Multi-Cores Cable Strip Cut Machine

Features:

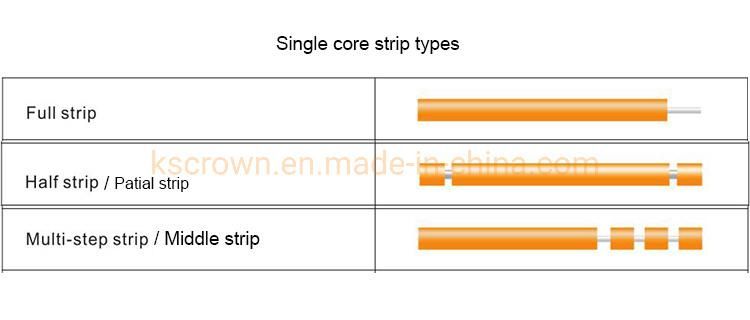

1.Function: cable cutting and stripping with middle section stripping feature

2.Applicable wire sizes: 1-30 square mm

3. Strip outer sheath of single conductor cables or multi-conductor cables

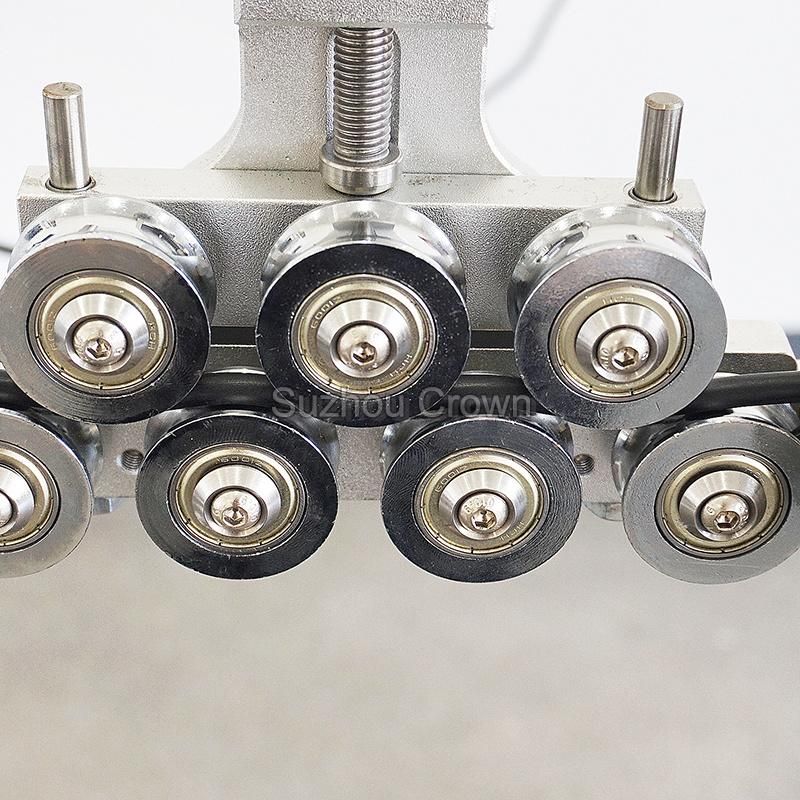

4.Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

5.Belt feeding wires, no embossing and scratches

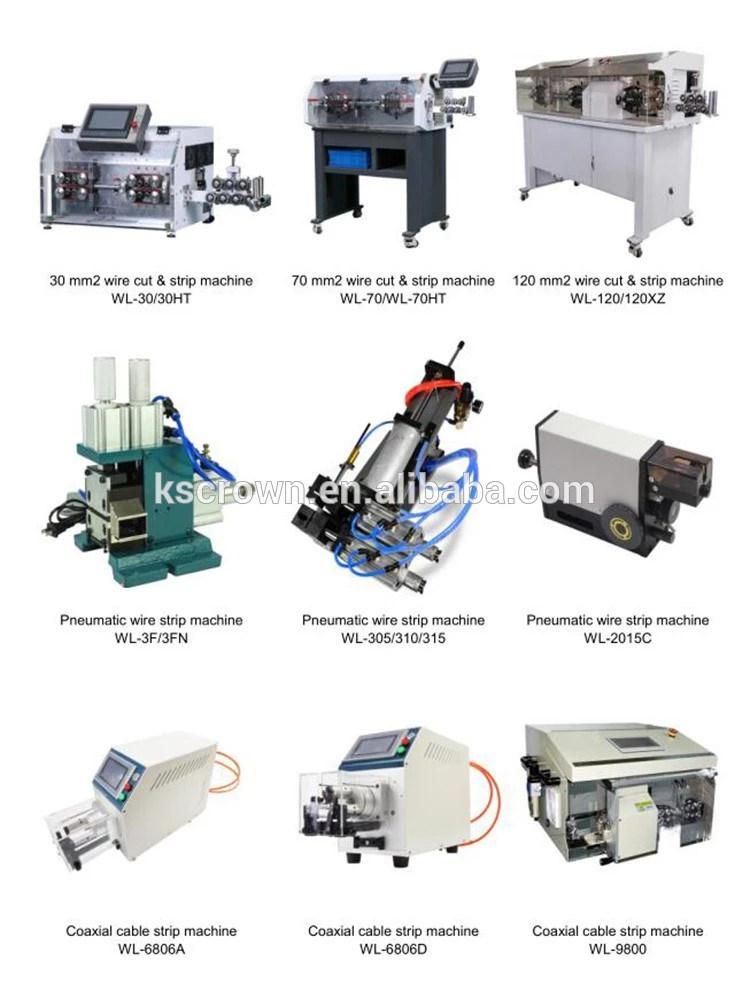

Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.

Automatic Large Multi-Cores Cable Strip Cut Machine

Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Automatic Large Multi-Cores Cable Strip Cut Machine

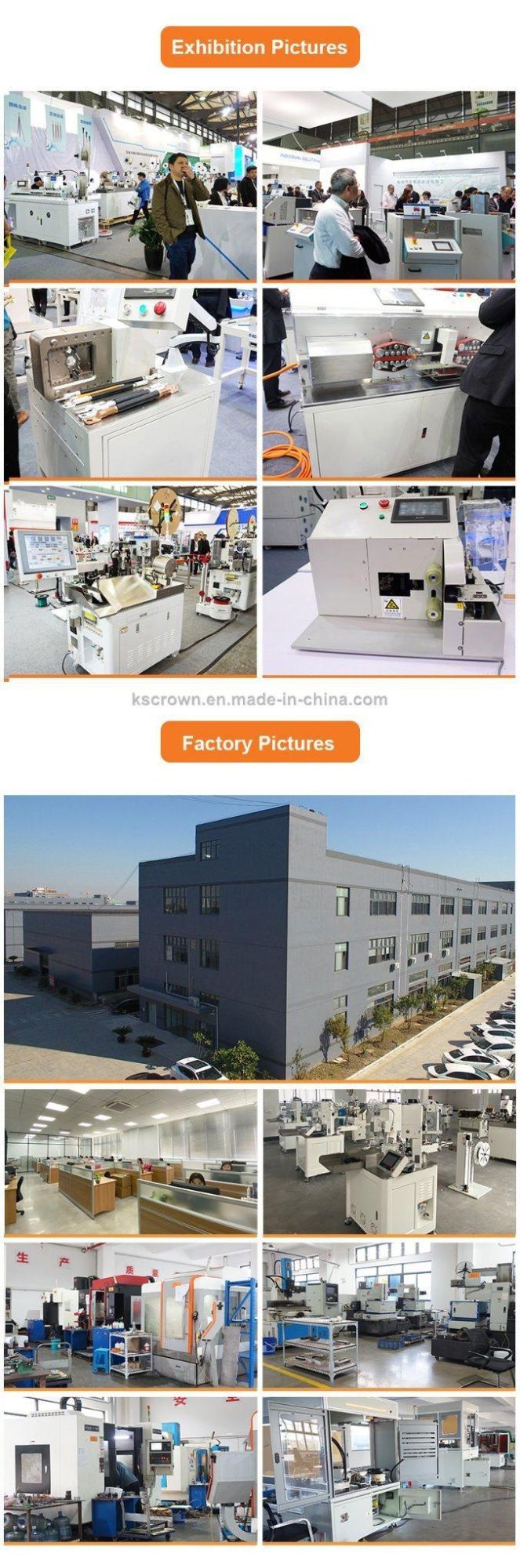

Company info:

Automatic Large Multi-Cores Cable Strip Cut Machine

Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.

Please feel free to contact me for further information .
