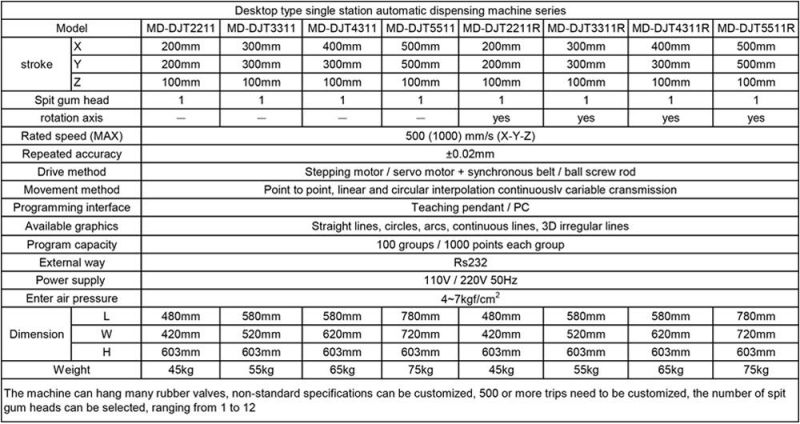

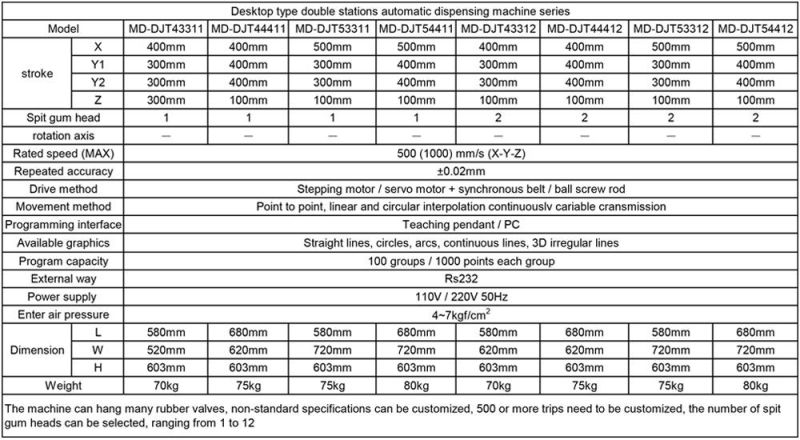

Main configuration
1. Double Y four-axis working platform
2. Hand-held teach programmer
3. Glue supply System: rubber valve + pressure barrel.
4. Product positioning jig (optional).
5. Syringe needle (optional)
6. Glue out fixed fixtures (optional)
7. Driving method: X/Y1/Y2/Z/ multi-axis Japanese microstepping motor (or optional servo motor(YAKO, Panasonic, etc.) )
8. Resolution capacity: X / Y1(Y2) / Z  ±0.001mm
9. Repeated point precision: X / Y1(Y2) / Z  ±0.02mm / ±0.01mm, R: ±0.02°
10. Control mode: PTP point-to-point, CP continuous path teaching control, can teach repeatedly.
11. Output/input: 4 input, 4 output.
Desktop automatic dispenser accessories

Applicable fluid type for dispensing machine

COMPANY INFORMATION
Guangzhou Minder-Hightech Co.,Ltd(MINDER-HIGHTECH CO.LIMITED HONGKONG ) is focused on connection(welding).
      We are comprised by a group of high educated specialists,with the leader of overseas professor, some of us have more than 20 years welding experience,our goal is to provide high performance product but low price and exceeded service.
      We care for the safety of operator, this year, we developed a safety system in spot welding industry named SOFT TOUCH system,which can prevent heavy pinch point injury.
      We are specialized in most of the connection(welding) technics,the most application we have participated in are electronic component(resistance,capacitor,inductor),chip on board,automotive electronic accessories,cell phone,IC cards,motor armature commutator etc.By material, we have engaged in connecting the Aluminum, Copper, Brass, Au(gold), Platinum, Nickel, Enameled wire, etc.
       We also provided the full IC package line; and LED producing line; Crystal oscillator producing line; as well as the wafer machining equipment.
       Our product are classified into resistance spot welding,inverter seam welding, ultrasonic wire bonding,hot bar soldering,automatic TIN soldering,stud welding, all the product are with mature latest technology,high performance,high precision,and high reliability.
       At the same time, we maintain a good relationship with the high school scientific research institution,we know the newest connection(welding) technology direction all over the world, committed to give out the best connection(welding) solution to our global customer.
We chose the most open and industrialized city-guangzhou-to be our base head place,to ensure the efficiency and rapidly response.
       These years,we proud of our growth with the famous company such as TPT,K&S,ASM,Bosch,Miyachi,Uniteck,Avio,Apollo,LPKF etc.
We also have automatic soldering machines and automatic screw tightening machines. If you want to know more details about our products, please feel free to contact us.
