Rigid Type Cable Stranding Machine for Copper Wire&Cable

Hejian Bao Hong Electrical Machinery Co., Ltd.
  • After-sales Service：One Year Warranty
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：630,1+6+12+18+24
  • Mould Life：>1,000,000 Shots
  • Type：High-speed Stranding Machine
  • Material：Metal
  • Colour：as Required
  • Wire Diameter Specification：1.5-5.0mm
  • Cage Speed：46-231 Rpm
  • Stranding Pitch：71-781 mm
  • Traction Wheel Diameter：2000 mm
  • Pay-off Bobbin in Cage：Pnd 500,630,710
  • Central Pay-off Bobbin：Pn800-Pn1600
  • Take-up Bobbin：Pn1250-Pn3150
  • Central Height：1000 mm
  • Transport Package：Seaworthy Packing
  • Specification：630 , 12 + 18 + 24
  • Trademark：BH
  • Origin：Hejian, Hebei, China
  • HS Code：8479400000
  • Production Capacity：15 Sets,Month

Description

Specification500/12+18+24630/12+18+24710/12+18+24  Dia. of single wire(mm)Copper1.5-5.0 Aluminium1.8-5.0Production dia.(mm)45Stranding cage speed ( r/min)75-23164-17046-146Stranding pitch (mm)71-78084-91189-1163Diameter of wheel haul-off (mm)200025002500Production speed (m/min)14.3-58.513.1-53.5Take-up reelPN1250-PN2500PN1600-PN3150

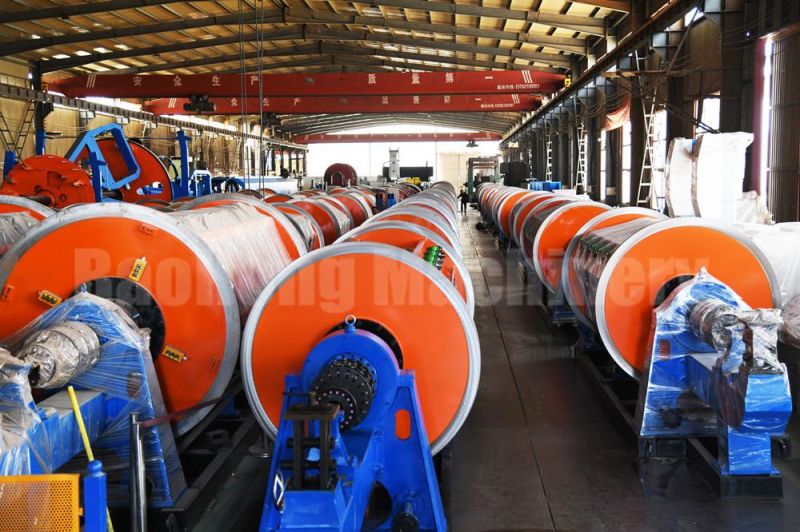

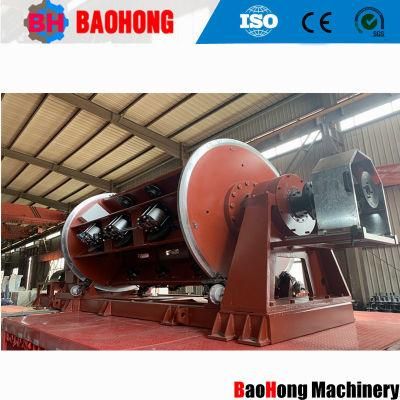

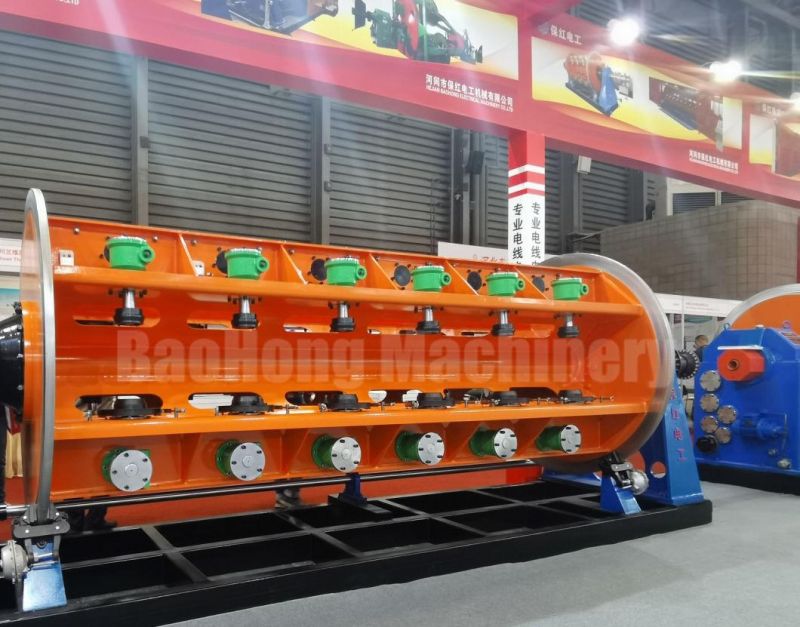

3.Photo
Rigid Type Cable Stranding Machine for Copper Wire&Cable
Rigid Type Cable Stranding Machine for Copper Wire&Cable
Rigid Type Cable Stranding Machine for Copper Wire&Cable
Rigid Type Cable Stranding Machine for Copper Wire&Cable
Rigid Type Cable Stranding Machine for Copper Wire&Cable
