• Model NO.：YH-8030Z
• Display：7 Inch True Color Touch Screen
• Function：Cutting and Stripping
• Feeding Method：12-Wheel Belt Feeder
• Cutting Length：0.01-999999.99mm
• Wire Diameter：6-30mm2
• Core Wires：2-8 Cores
• Head Peeling：Head Peeling Max 120mm
• Tail Peeling：Tail Peeling Max 240mm
• Stripping Accuracy：0.01mm
• Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
• Capacity：2300PCS,H
• Detect Function：Wire Presence Detection
• Air Pressure：0.5-0.8MPa
• Input Power：AC220V,50Hz
• Power：1.6kw
• Transport Package：Double-Layer Export Carton
• Specification：530*530*400mm
• Trademark：yuanhan
• Origin：China
• HS Code：8479819000
• Production Capacity：L=100mm, 3000-7000PCS,H

ModelYH-8030ZDisplay7-inch true color touch screenApplicable wire sizes1-30 square mmCutting length1mm-99,999.99mmCutting tolerancewithin 0.002*L (L=cutting length)Stripping length

wire head full stripping: 1-190mm, wire head half-stripping:1-9999mm
wire tail full stripping: 1-80mm, wire tail half-stripping: 1-9999mm

Middle stripping

Multi-section stripping, any interval, any length of stripping, up to 32 segments
Multi-section stripping, the interval of each segment is the same, the length of the stripping is the same, the number of segments is not limited

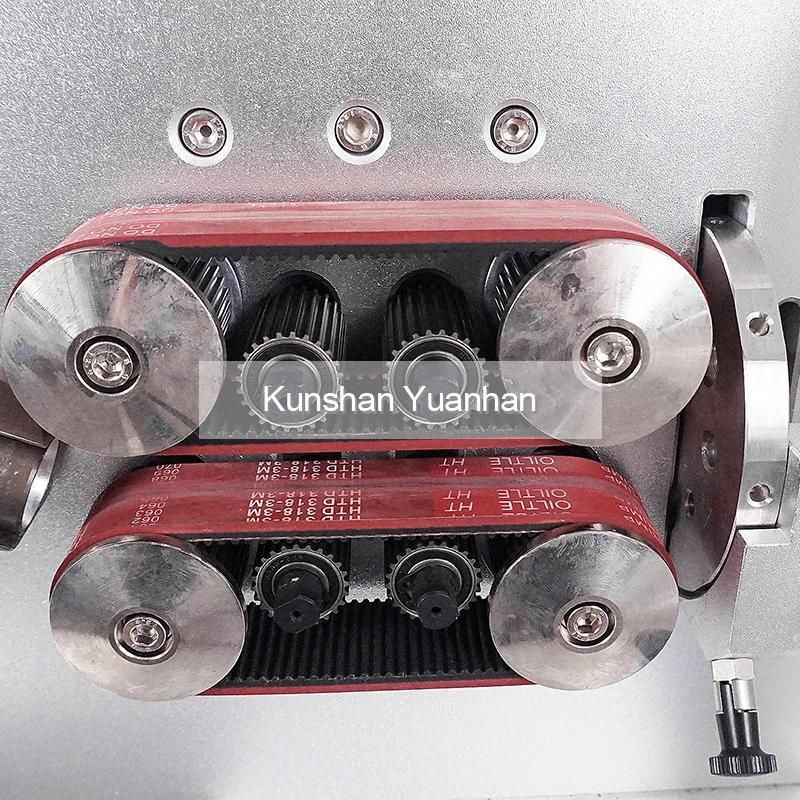

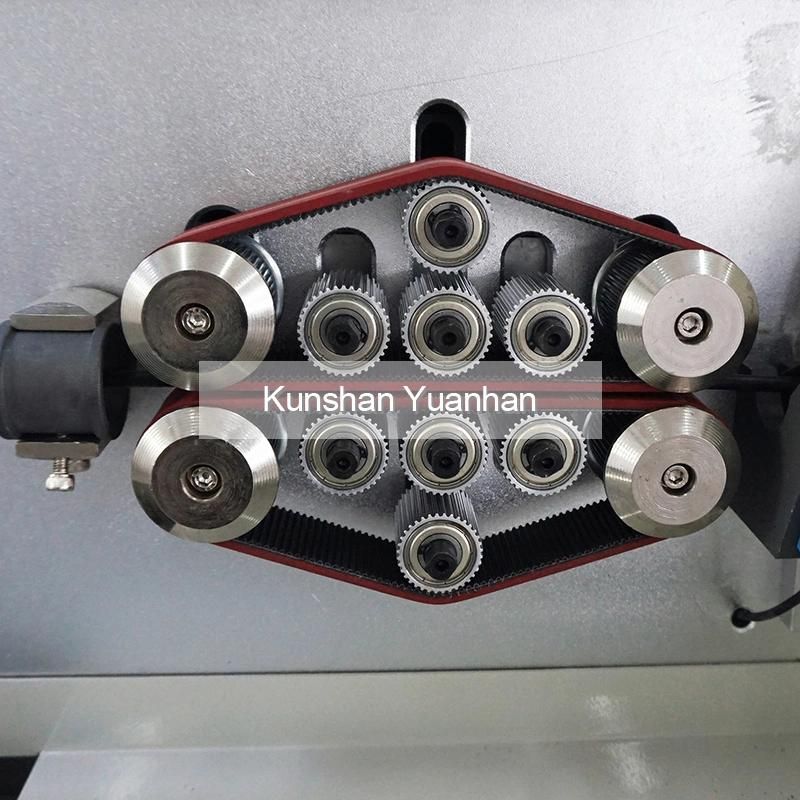

Max. diameter of guiding pipeΦ16Blade materialhigh-quality imported high-speed steelProductivity2,000 pcs/hour (depending on the length and size of the wire)Drive mode16-wheel drive (silent hybrid stepping motor, servo tool post)Wire feeding methodbelt feeding, no embossing and no scratches on the cableRemarksThe machine can be customized for processing special cables, and the sample cable should be sent to us for test.

We have other sizes of wire cutting and stripping machine for your choice!

Stripping lengthFront Stripping : 1- 120mmFront stripping: 1 - 800mm (wire head)Front stripping: 1 - 800mm (wire head)Front stripping: 1-120mm (special custom peelable more than 1000mm)Front stripping:1-1000mm(head)Tail stripping: 1- 190mmTail stripping: 1 - 260mm (end of line)Tail stripping 1 - 260mm (end of line)Tail stripping: 1- 270mmTail stripping::1-300mm (Tial)Maximum diameter of the catheterΦ16Φ 25Φ30Φ7~30mmΦ15~50mmTool materialHigh quality imported high speed steelHigh quality imported high speed steelHigh quality imported high speed steelHigh quality imported high speed steelHigh quality imported high speed steelProductivity (times / hour)2300PCS/hour (depending on the length and size of the line)1800pcs/h (depending on the length and size of the line)1800pcs/h (depending on the length and size of the line)100-700pcs/h (depending on the length and size of the line)100-700pcs/h (depending on the length and size of the linepower supply220V 50HZ220V 50HZ220V 50HZ220V 50HZ220V  50HZPower1.5KW1.5KW1.5KW4KW11.7KWDrive mode16-wheel drive (silent hybrid stepper motor, servo tool holder)32-wheel drive (silent hybrid stepper motor, servo tool holder)32-wheel drive (silent hybrid stepper motor, servo tool holder)48-wheel drive, full servo motorWire feed: 32 wheels, each group of independent servo drive
Knife rest: double servo and double screw Wire feeding methodBelt feeding line, no embossing on the cable without scratchesBelt feeding line, no embossing on the cable without scratchesBelt feeding line, no embossing on the cable without scratchesBelt feeding line, no embossing on the cable without scratchesBelt feed, no imprint or scratch on the cableRemarksSpecial cable can be customized, sample line test is requiredSpecial cables are customizable and sample line tests are required. If the tail end is stripped, the total length of the cut line should not be less than 150mm, and the total length of the cut line is less than 150mm. The machine can be customized.Special cable can be customized, sample line test is requiredsample line test is required

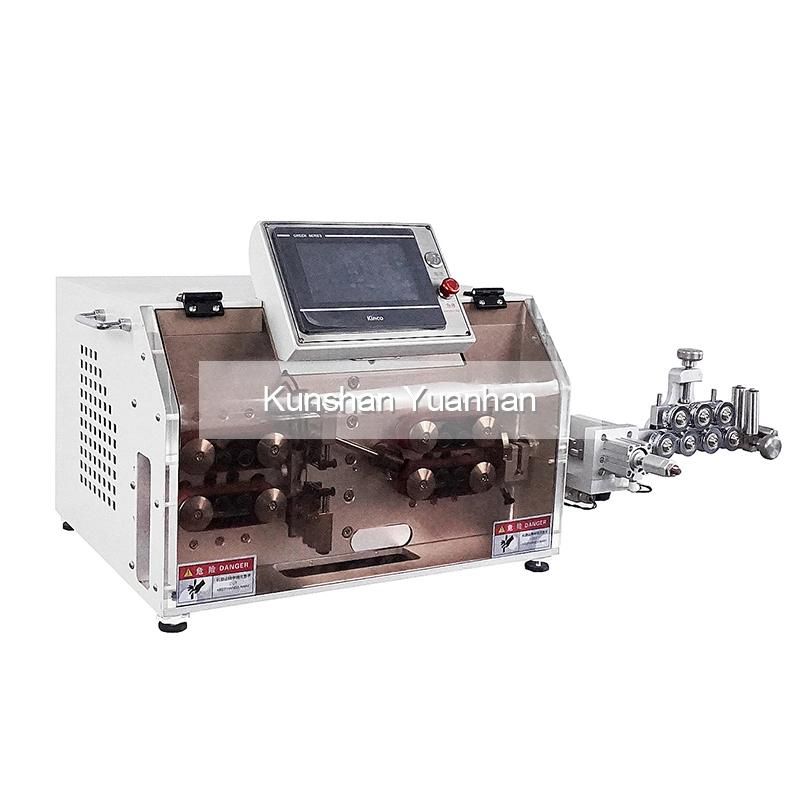

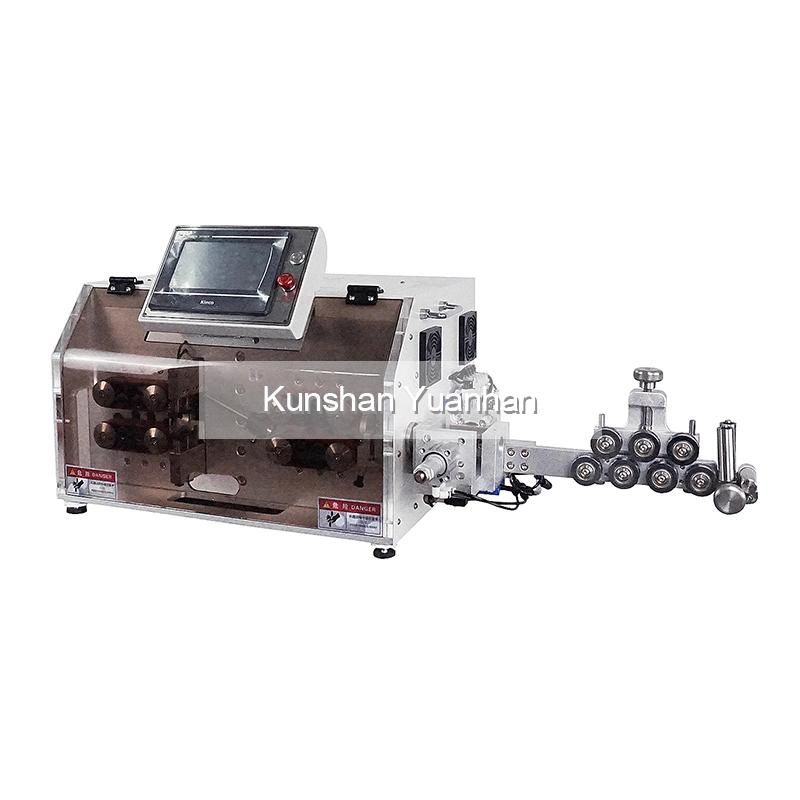

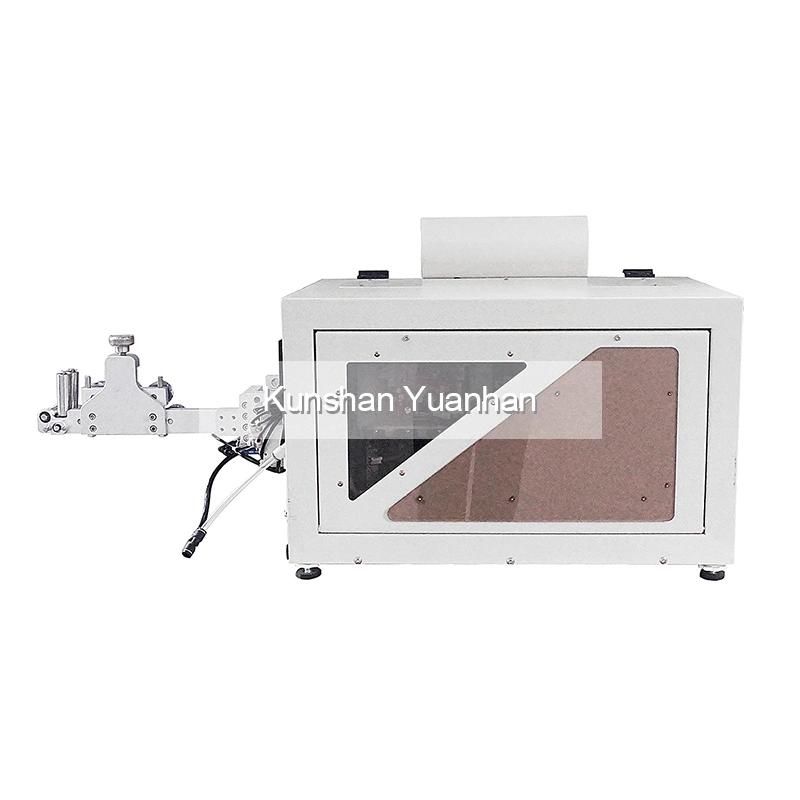

Product Pictures

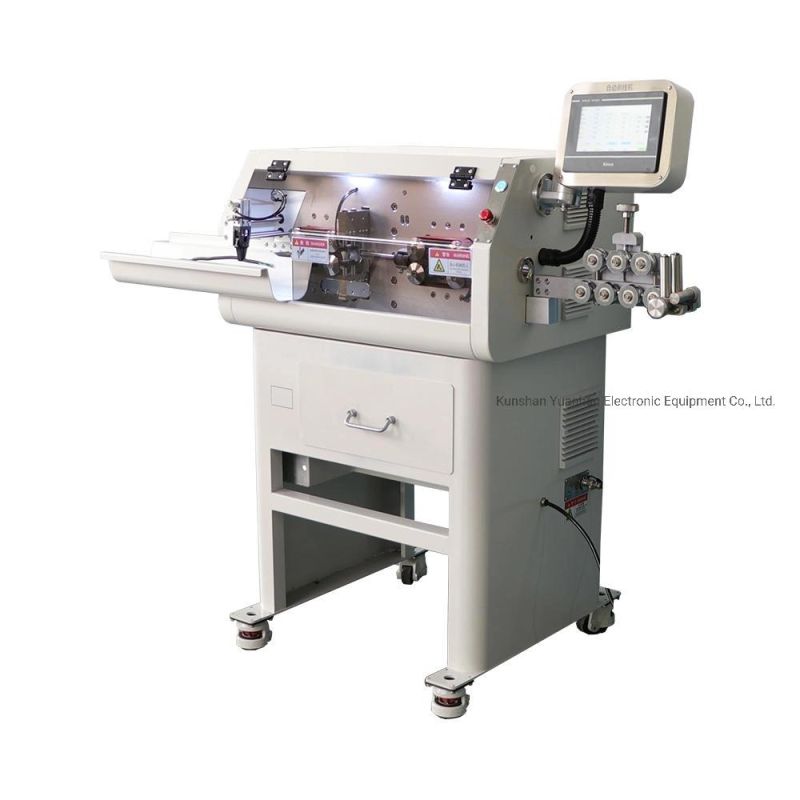

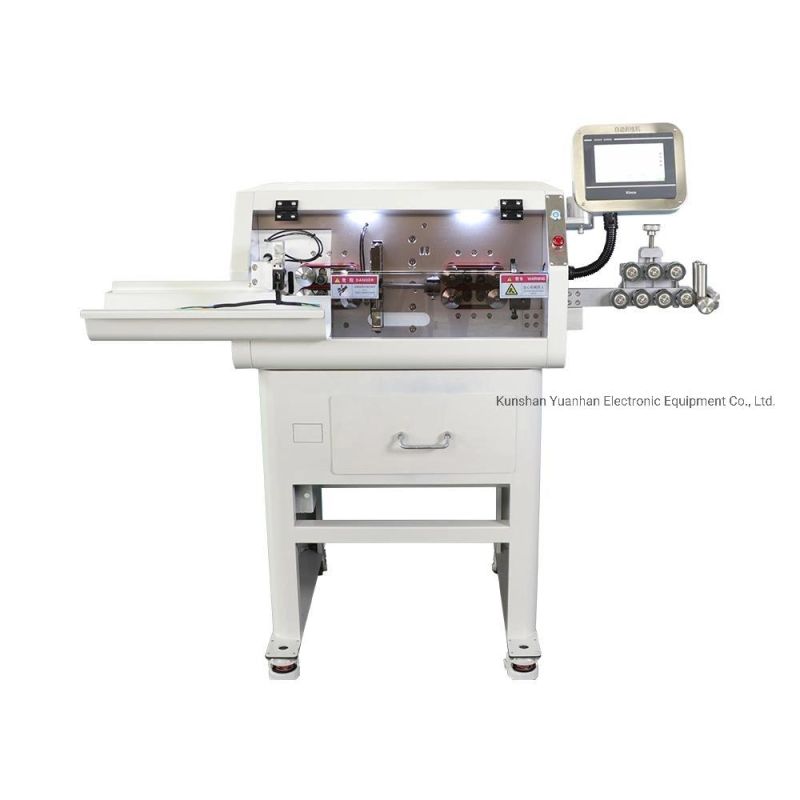

 30 square sheathed wire cutting and stripping both inside and outside.  All-in-one machine, with manipulator + 2 meters of wire take-up frame



Features:

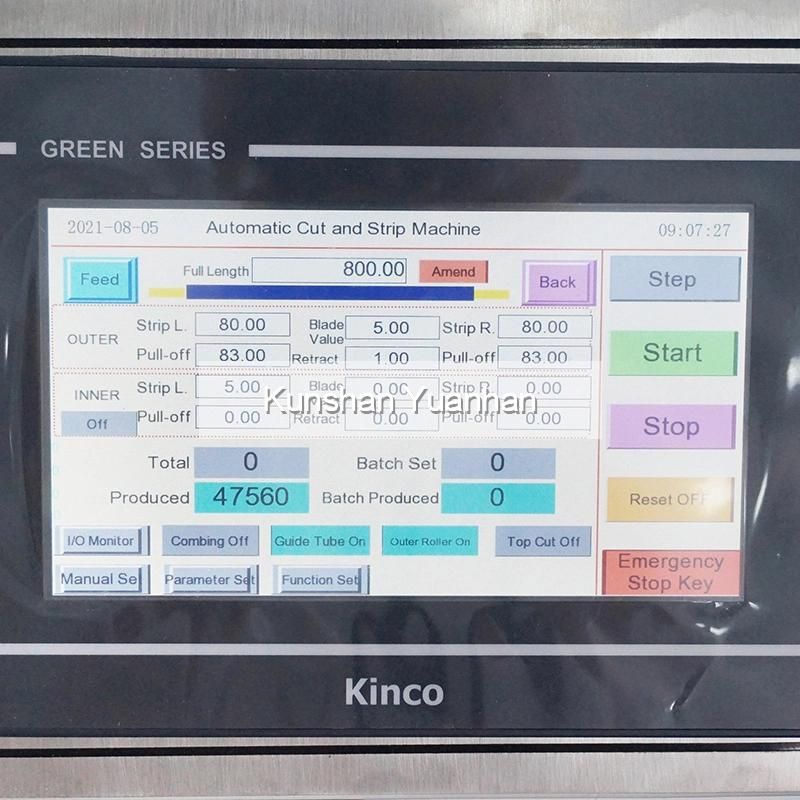

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

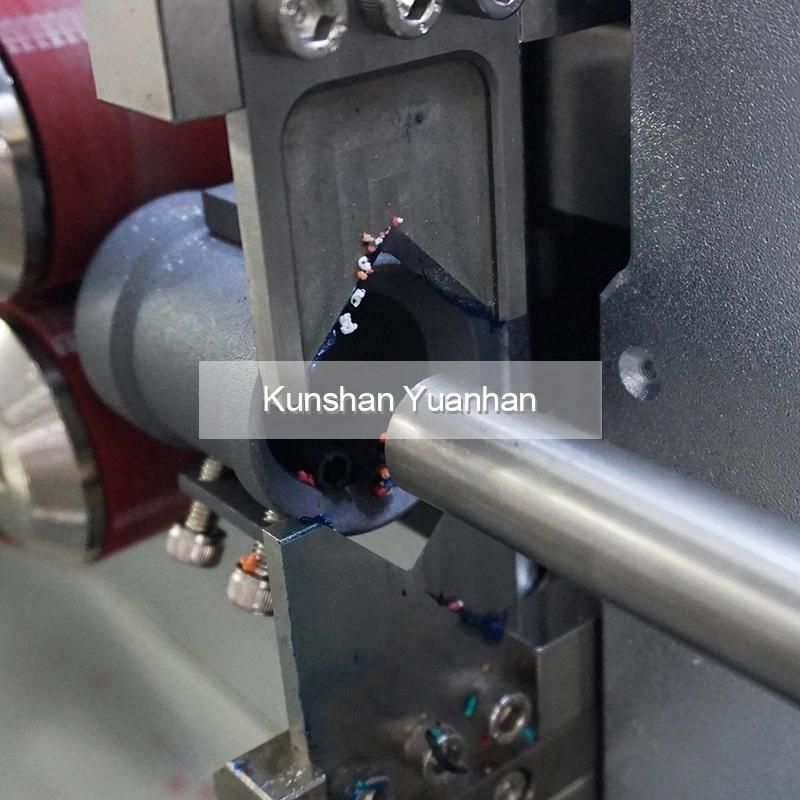

Sample: cut and strip wire automatically


Any questions, please feel free to contact us ! Thank you !
