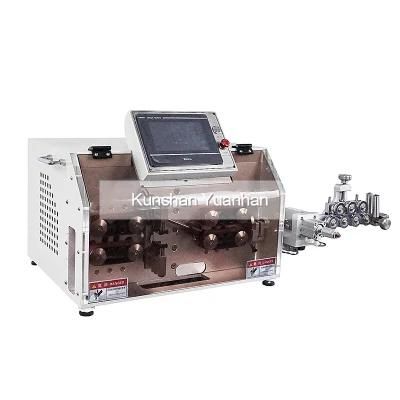

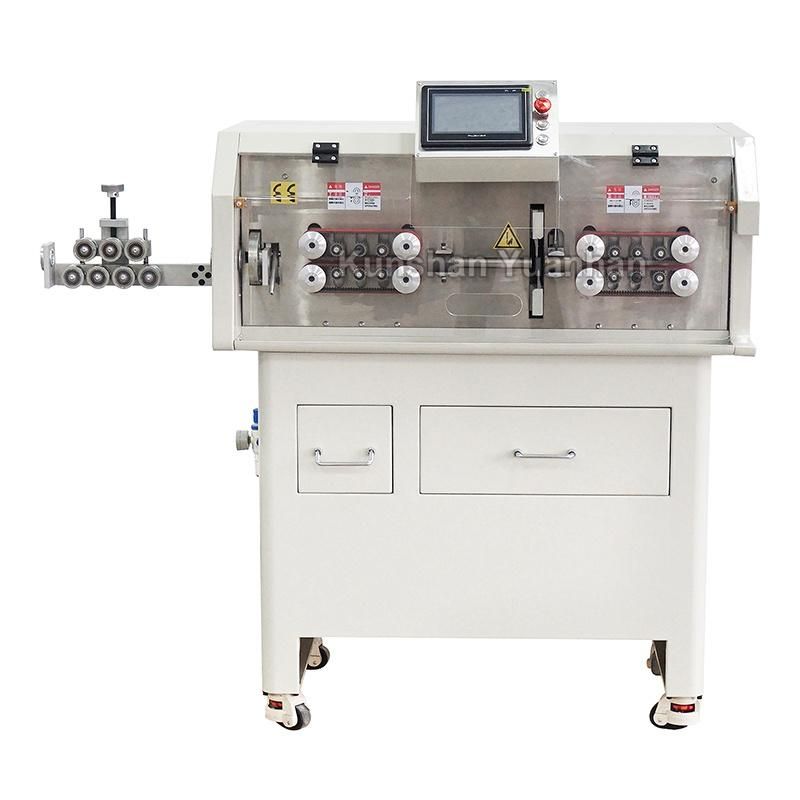

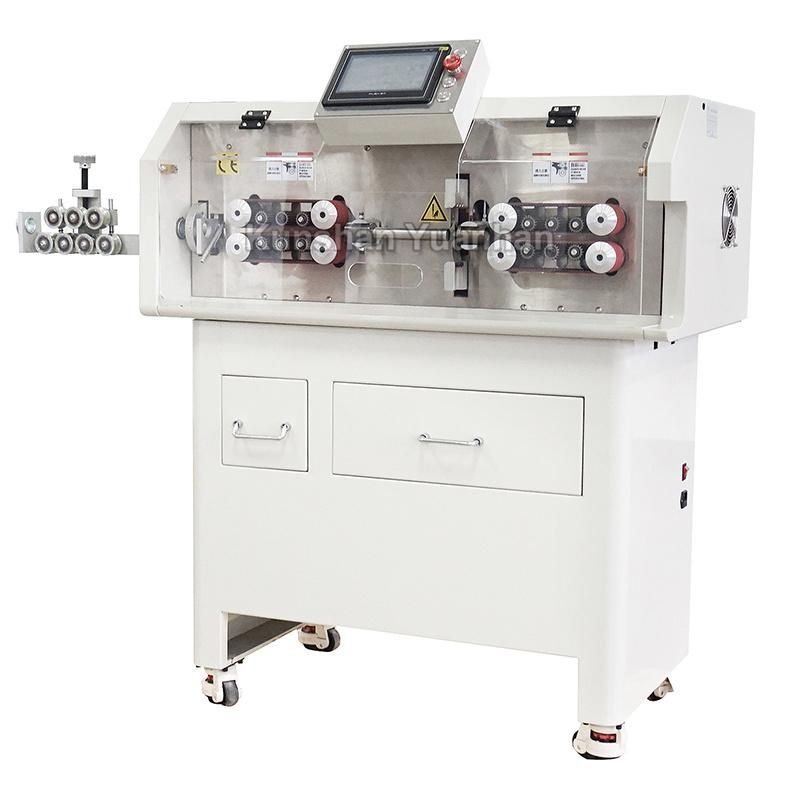

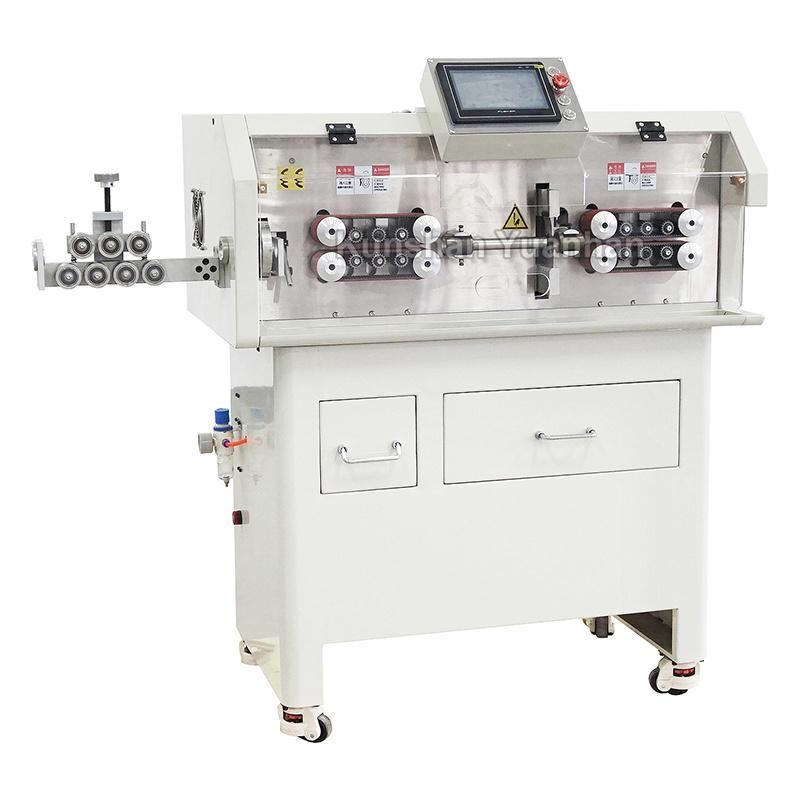

Electric Fully Automatic Jacket Cable Peeling Machine
Kunshan Yuanhan Electronic Equipment Co., Ltd.- After-sales Service:One Year Free Maintenance
- Driven Type:Electric
- Condition:New
- Certification:CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty:24 Months
- Automatic Grade:Automatic
Base Info
- Model NO.:YH-8150
- Model:Yh-8150

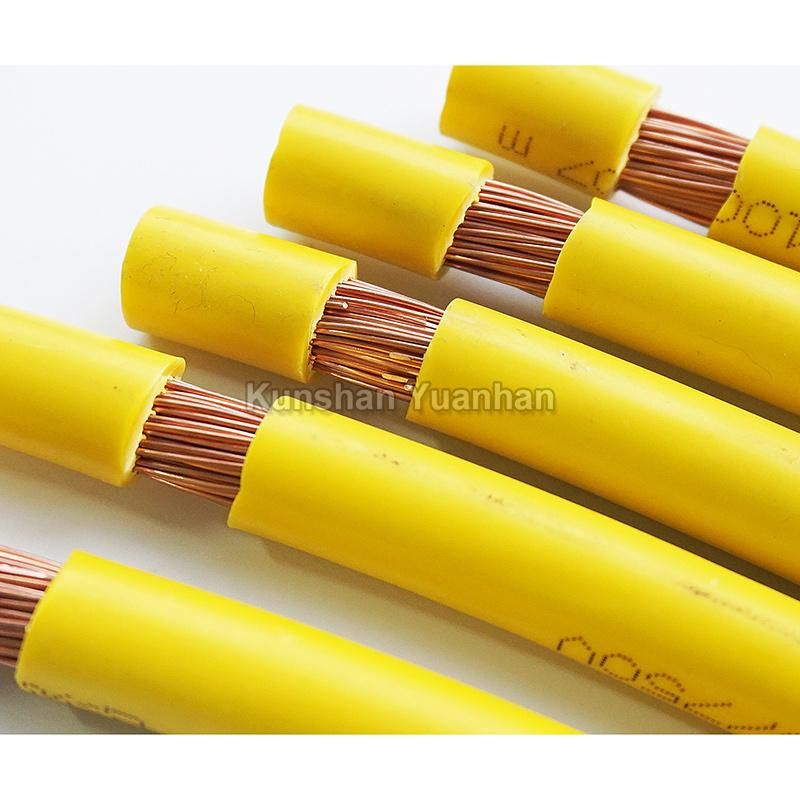

- Function:Cable Cutting and Stripping
- Conductor Cross-Section:10-150mm2;
- Cutting Length:1-99999.99mm
- Cutting Length Tolerances:≤(0.002*L) mm L=Cutting Length
- Stripping Length:Head 1-800mm Tail 1-400mm
- Max. Conduit Diameter:33mm
- Production Rate:1800PCS,H (Based on Wire Size)
- Dispplay Screen:7 Inch Touch Screen
- Drive Method:32 Wheels Drive

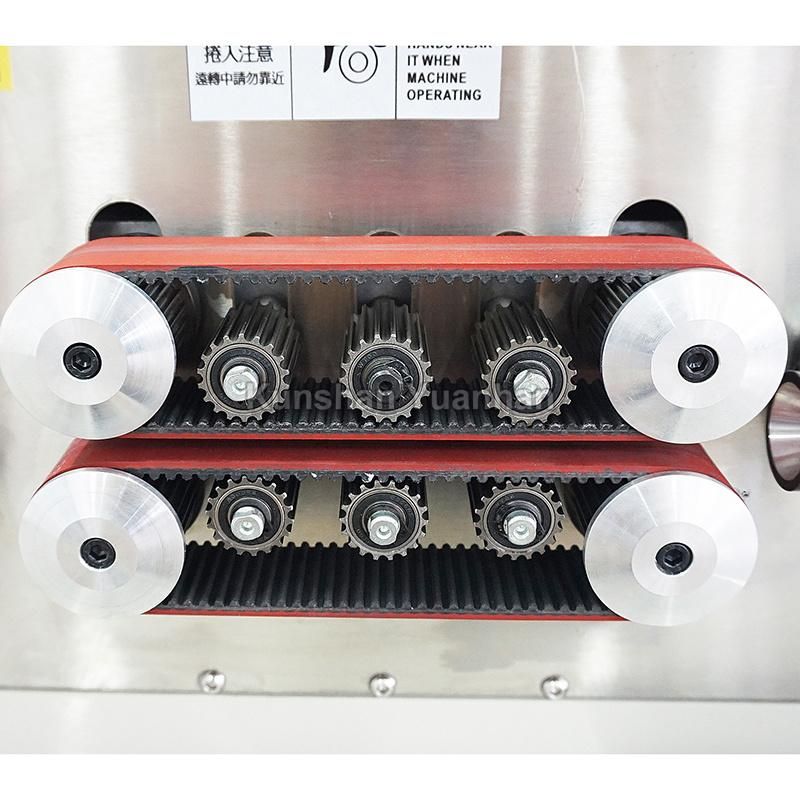

- Wire Feed Method:Belt Feeding Wire, No Indentation on Cable.
- Power Supply:110,220VAC, 50,60Hz
- Power:6900W
- Dimensions:147*76*134cm
- Full Load Current:30A ((Min.18A Allowed)
- Transport Package:Wooden Case
- Trademark:YH
- Origin:China
- HS Code:84798110
- Production Capacity:2000
Description
Yuanhan wire harness processing machines are widely used in automotive, home appliances, communications, rail transit, nuclear power, aerospace, charging piles, photovoltaic and new energy industries. With an annual output of more than 10,000 sets of wire harness processing equipment, we deliver efficient, high-quality services and fast solutions to many customers around the world.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation, please feel free to contact us.
