• Model NO.：WL-B6806
• Specification：Small size
• Trademark：Crown
• Origin：China
• HS Code：8479819000

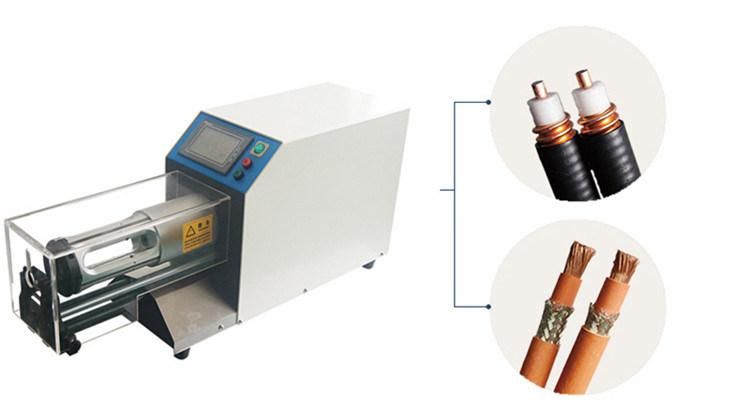

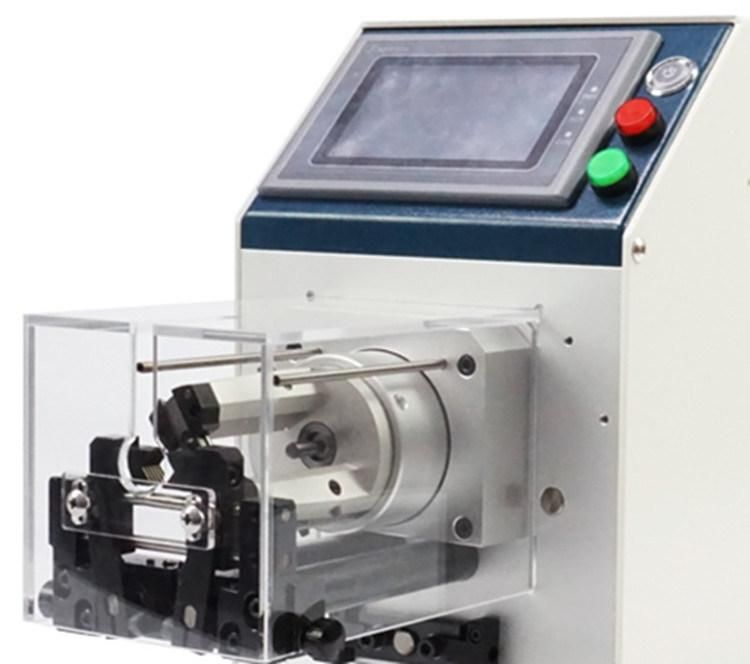

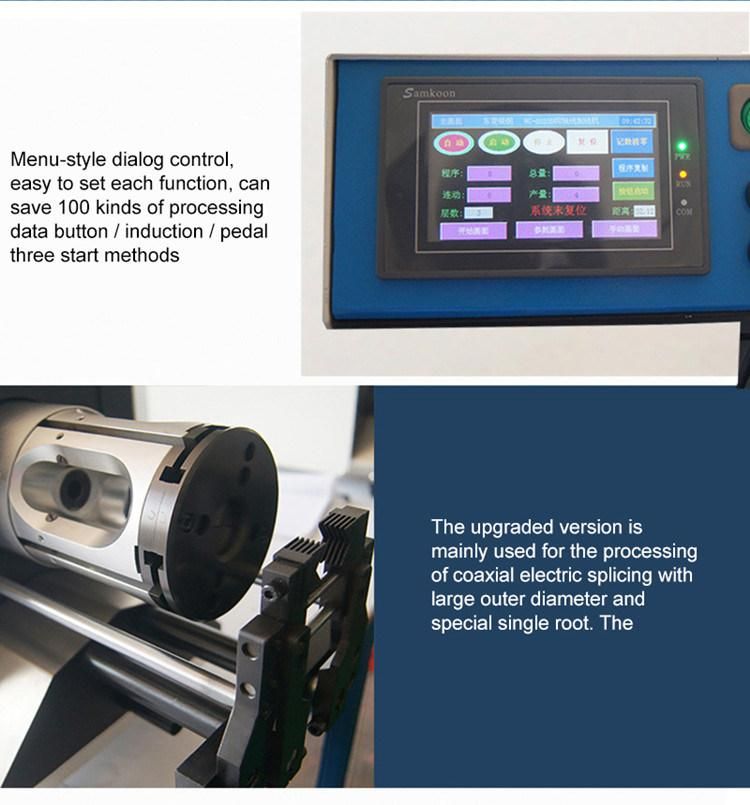

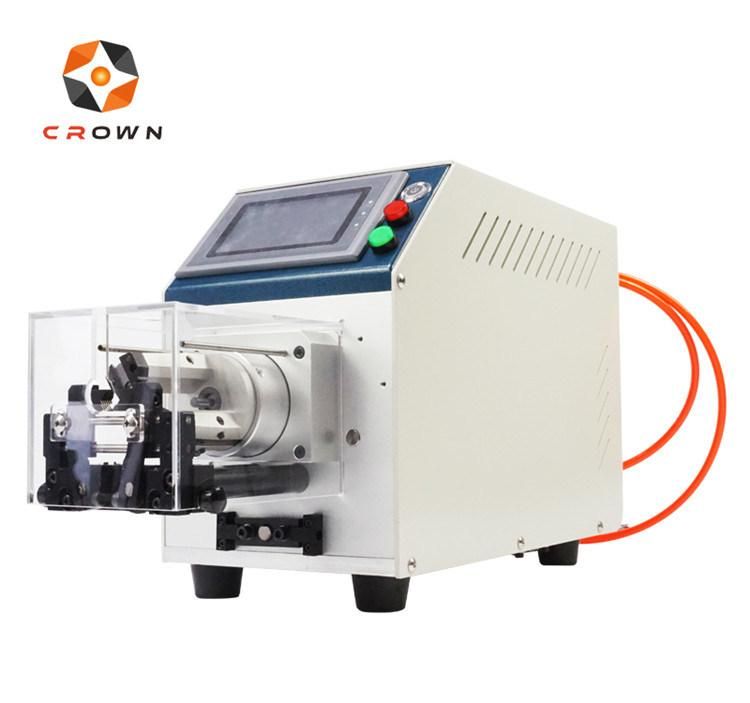

Product NameSemi automatic coaxial wire stripping machineModel WL-B6806 Input Voltage 220V / 50HZ  450WCable Typecoaxial-cable, triaxial  cable, shield wire, rigid cableCutting depth  0.01mm Cable Diameter 0.81-7mmDimension(L*W*H)600X185X280 mm Weight40kgCutting depth of the unit0.01mmStripping length48mmMax. stripping stratum9Drive modeMotor/ Ball screw drive (Japan)Blade2 pieces   Material: imported  tungsten steel (Switzerland)Centering slab2 pieces  Material: imported  tungsten steelTrapperAutomatic self-aligning, motor drive,  the clamping process  controlDisplaytouchscreenProductivity700-1200pcs / h (depending    on  cable type and length)Opening wayManual operation/PedalWork environment0-45 degrees,   moderate dryness, no vibration of the  work  surface

Other models:

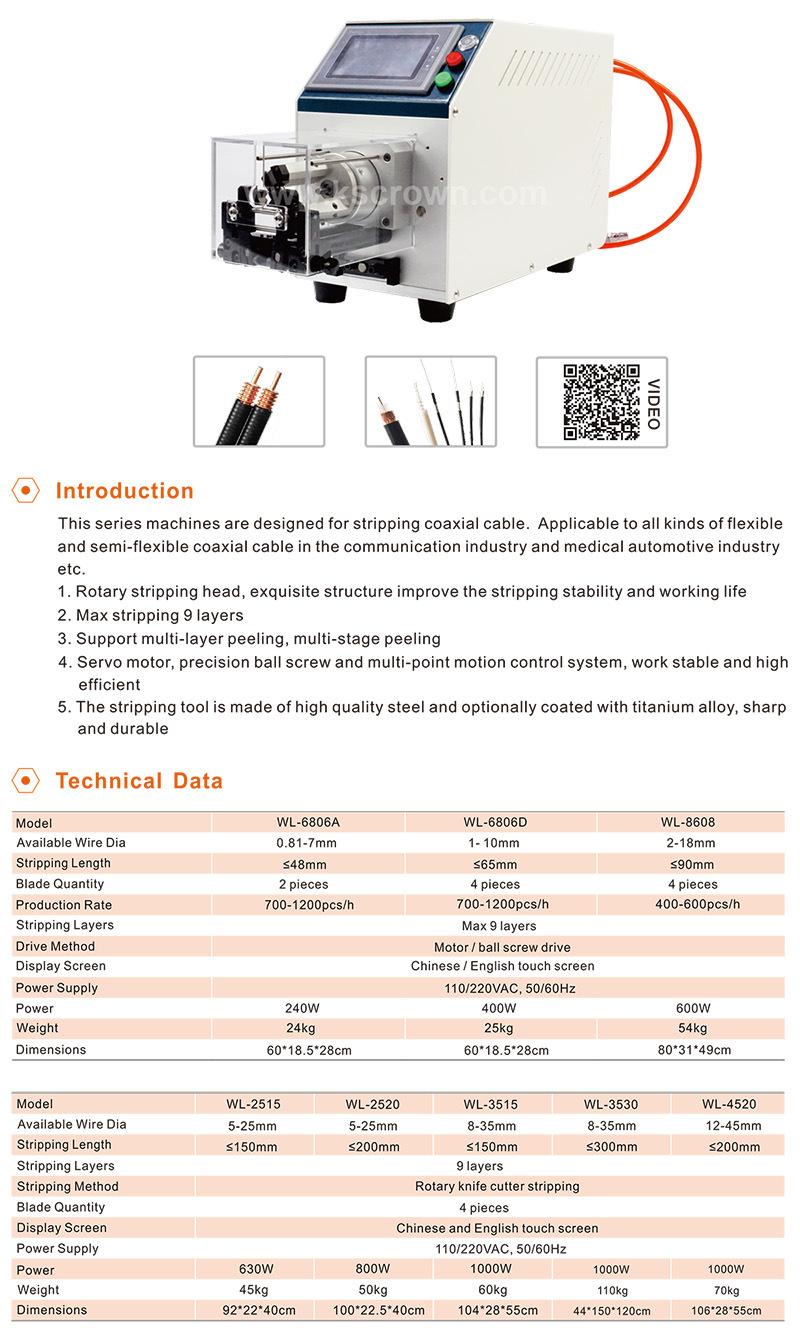

We also have other models  Semi automatic coaxial wire stripping machine  and full automatic coaxial wire stripping machine  with different features

If you are not so sure which one is the best for you, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.

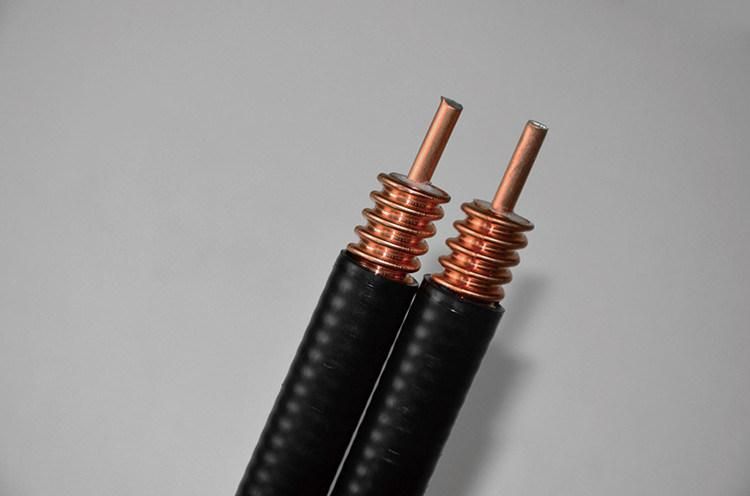

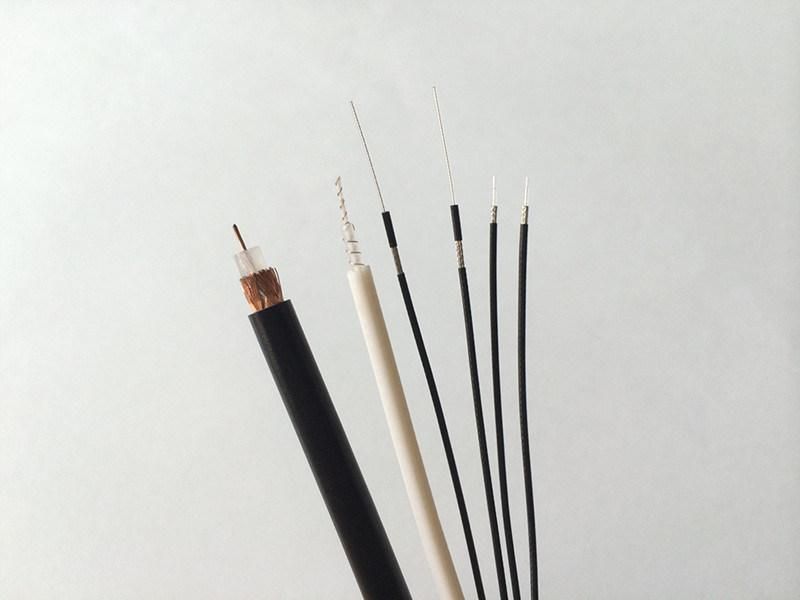

Application



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Company info:






Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models

to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
