Full Automatic Both End Wetting Machine Tinning Machine

GUANGDONG WINGUD INTELLIGENT TECHNOLOGY CO., LTD.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Power Supply：AC110,220V, 50,60Hz

Base Info

  • Model NO.：WG-01A
  • Cutting Length：10-1000mm Length Customizable
  • Stripping Length：1-7mm (1-15mm Customizable)
  • Efficiency：1200 Time,Hour, Depend on The Total Length
  • Transport Package：Wooden Case
  • Specification：L3110*W780*H1460MM
  • Trademark：Wingud
  • Origin：China
  • Production Capacity：120,Month

Description

Basic Info.

Model NO. WG-01A Cutting Length 10-1000mm Length Customizable Stripping Length 1-7mm (1-15mm Customizable) Efficiency 1200 Time/Hour, Depend on The Total Length Transport Package Wooden Case Specification L3110*W780*H1460MM Trademark Wingud Origin China Production Capacity 120/Month

Product Description

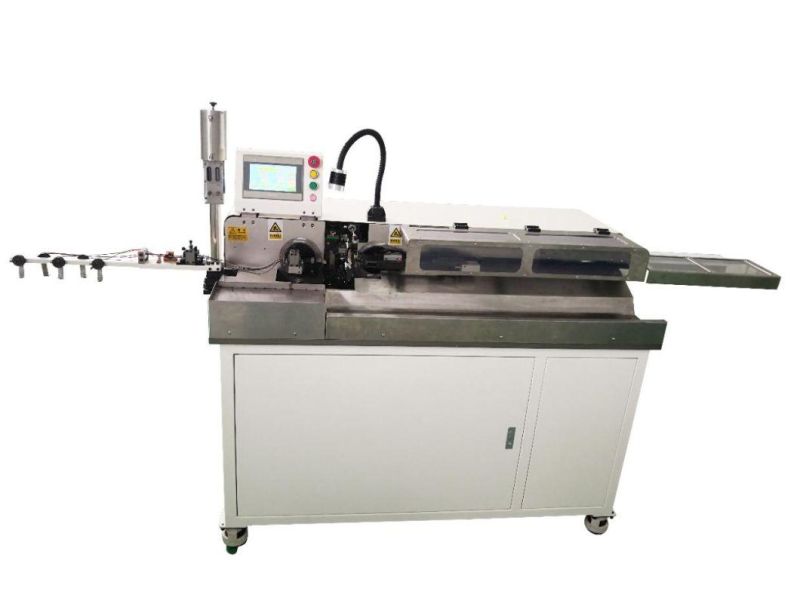

WG-01A Full Automatic Both End Wetting Machine
Functional characteristics:
  1. Fully automatic computer debugging, color touch screen operation, computer full automatic production, one person can operate more than one machine, saving labor costs.
  2. It is using servo motor to control the cutting length, knife value, stripping length, wetting depth of scaling powder or tin, with accuracy up to 0.1mm. The temperature of tin furnace is set by parameters, with good constant temperature effect, uniform tinning, and high yield.
  3. The back stripping clip adopts the adjustable parallel clip, to avoid wire clamping injury caused by uneven force, so as to lower the poor skin of the wire.
  4. The twisting method is changed from the previous cylinder drive to stepper motor and worm drive, with steady twisting speed and large twisting force, to make the quality of the twisting be better.
  5. Straightening wheel is added to the rotary tin wetting in front to avoid improper bending of wire due to the rotation.
 Configuration:
  1. Operation panel: Color 7 inch KINCO touch screen
  2. Pneumatic element: AirTAC
  3. Servo: HCFA
  4. Screw rod: Taiwan TBI
  5. Wire rails: Taiwan HIWIN
  6. Digital display pressure detection: AirTAC

Technical Parameters:
Model                   WG-01A
Function: fixed-length cutting, full stripping, half stripping, twisting, wetting
Cutting length: 10-1000mm(standard length)length customizable
Stripping length: 1-7mm (1-15mm customizable)
Efficiency: 1200 time/hour, depend on the total length
Applicable wire: UL1007 # 18AWG ~ UL1571 # 28AWG(OD:0.6mm)
Power supply:   AC220V 50/60HZ single-phase
Detector: Detection for air pressure, wire missing
Dimension: L3110*W780*H1460MM
