Bow Strander for Control Cables / Skip Stranding Machine for Electric Cable

Hejian Bao Hong Electrical Machinery Co., Ltd.
  • After-sales Service：One Year Warranty
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Mould Life：>1,000,000 Shots
  • Type：To Back Stranding Machine
  • Usage：Skip Stranding
  • Material：Copper Wire, Aluminum Wire and Steel Wire
  • Maximum：Strand Diameter 16
  • Max Rotation Speed of The Tube：1200
  • Stranding Pitch：49.3-372.7mm ( 36 Stage )
  • Take-up Bobbin：Pn630-Pn1600
  • Diameter of Draught Wheels：1200
  • Main Motor Power：37kw
  • Transport Package：Seaworthy Packing
  • Specification：630,1+6
  • Trademark：BH
  • Origin：China
  • HS Code：8479400000
  • Production Capacity：100

Description

Model (Skip Stranding Machine)JGB-630(500)JGB-700JGB-800Diameter of single wireCopperφ1.8-5 mmφ2-5 mmφ2.5-5 mmAluminumφ2.0-5 mmφ2.5-5 mmφ3.0-5 mm

Galvanized steel wire



φ1.0-4.0 mmφ1.2-4.0 mmφ1.5-4.0 mm

Maximum stranded conductor OD



φ35-55 mmφ35-55 mmφ35-55 mmStranding Pitch6 Bobbin Stranding Cage31.1-235.0mm31.1-235.0mm31.1-235.0mmMax. Rotating Speed6 Bobbin Stranding Cage1000 r/min800 r/min700 r/minCapstanCapstan Wheel Diameter1200 mm1400 mm1400 mmMaximum Haul-off Force10 T10 T12 T

Motor Power



37 KW45 KW55 KW

Bobbin Size



630*475*127710*530*127800*600*127

Center Payoff Bobbin



630*475*127710*530*127800*600*127

Take-up Bobbin



1250*950*801600*1180*801600*1180*80

Maximum Haul-off Linear Speed



235 m/min200 m/min170 m/min

Central Height



1000 mm1000 mm1000 mm

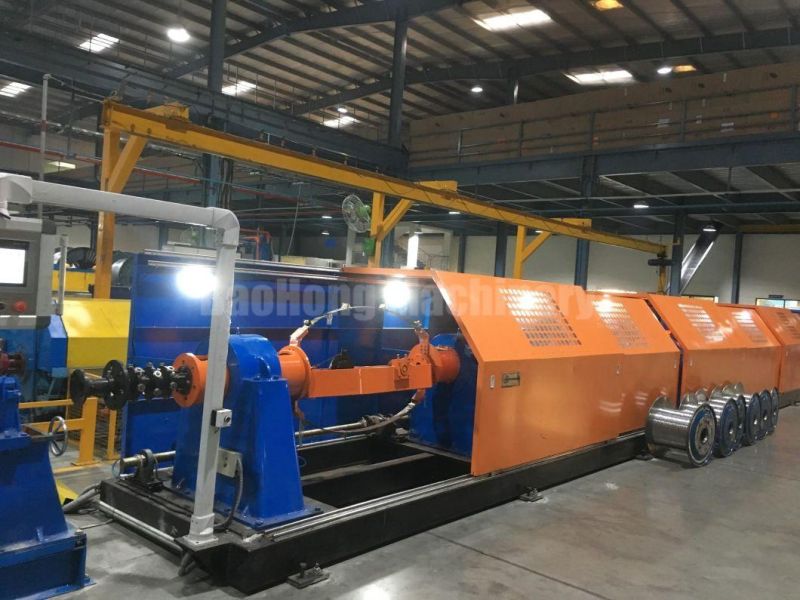

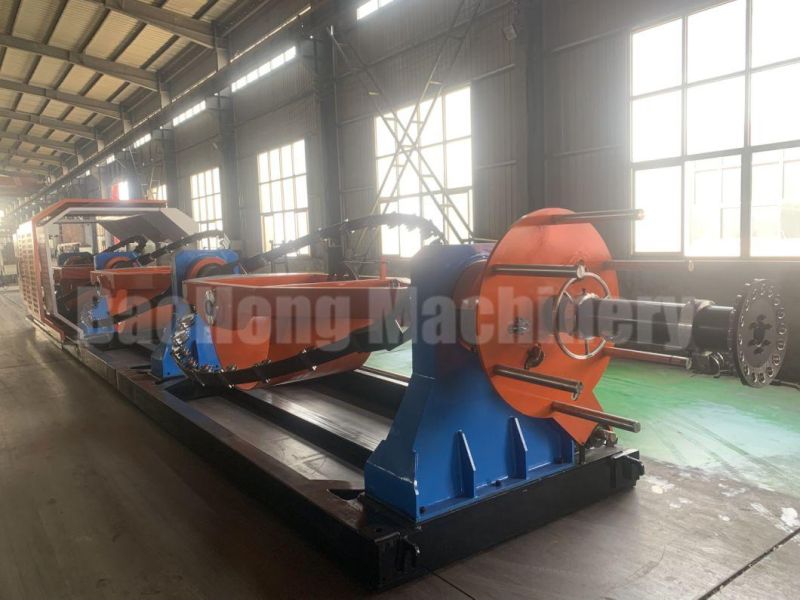

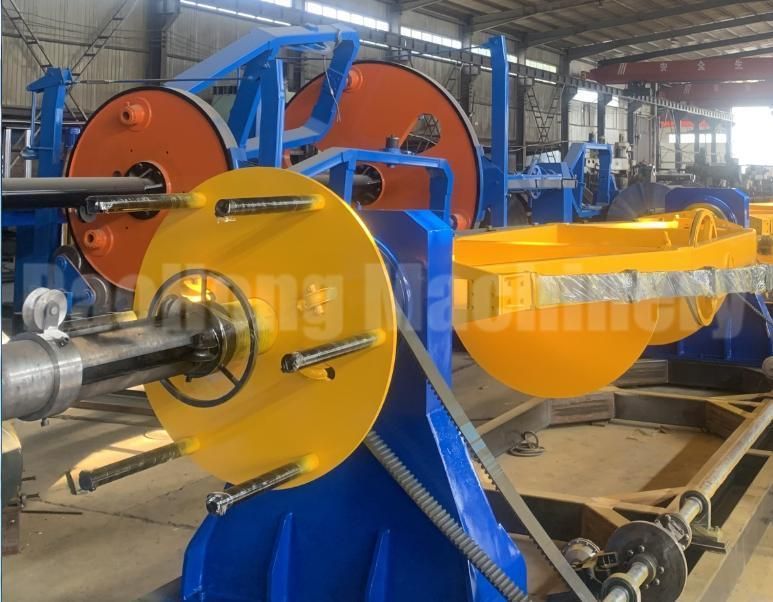

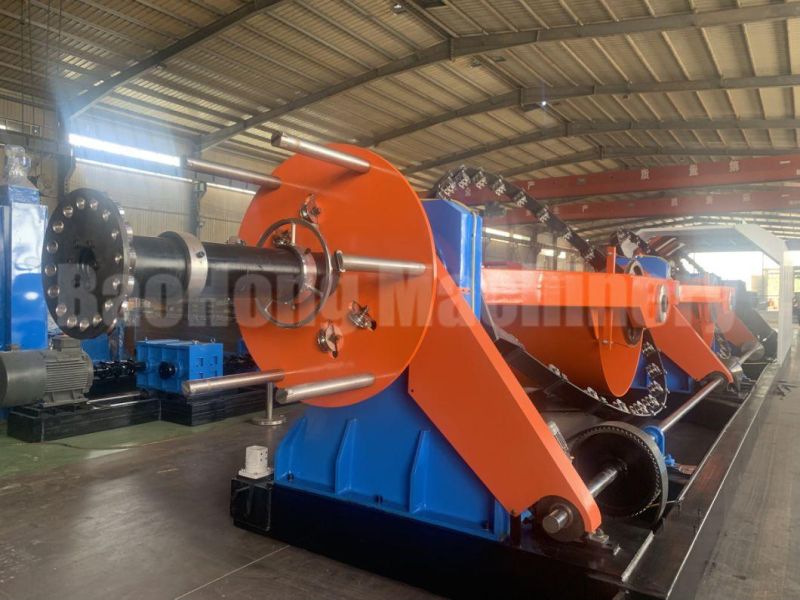

3.PhotoBow Strander for Control Cables / Skip Stranding Machine for Electric Cable
Bow Strander for Control Cables / Skip Stranding Machine for Electric Cable
Bow Strander for Control Cables / Skip Stranding Machine for Electric Cable
Bow Strander for Control Cables / Skip Stranding Machine for Electric Cable
