Skip Stranders 630/1+6 Bow Structure 1000 Rpm for ACSR AAC Copper Strand
Hejian Bao Hong Electrical Machinery Co., Ltd.- After-sales Service：One Year Warranty
- Driven Type：Electric
- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：,
- Mould Life：>1,000,000 Shots
- Type：To Back Stranding Machine
- Usage：Skip Stranding
- Material：Copper Wire, Aluminum Wire and Steel Wire
- Maximum Strand Diameter：16
- Max Rotation Speed of The Tube：1200
- Stranding Pitch：49.3-372.7mm ( 36 Stage )
- Take-up Bobbin：Pn630-Pn1600
- Diameter of Draught Wheels：1200
- Main Motor Power：37kw
- Transport Package：Seaworthy Packing
- Specification：630,1+6
- Trademark：BH
- Origin：China
- HS Code：8479400000
- Production Capacity：100
Description
Basic Info.
Model NO. / Mould Life >1,000,000 Shots Type To Back Stranding Machine Usage Skip Stranding Material Copper Wire, Aluminum Wire and Steel Wire Maximum Strand Diameter 16 Max Rotation Speed of The Tube 1200 Stranding Pitch 49.3-372.7mm ( 36 Stage ) Take-up Bobbin Pn630-Pn1600 Diameter of Draught Wheels 1200 Main Motor Power 37kw Transport Package Seaworthy Packing Specification 630/1+6 Trademark BH Origin China HS Code 8479400000 Production Capacity 100Product Description
Skip Stranders 630/1+6 Bow Structure 1000 RPM for ACSR AAC Copper strand 1.ApplicationThe machine is used for stranding copper wire, aluminum wire and steel wire.2.Main technical parameter
| Name | Unit | Data |
| Single wire diameter | mm | Copper wire Φ1.5-Φ5.0 Aluminum wire Φ1.8-Φ5.0 Steel wire Φ1.8-Φ4.0 |
| The maximum strand diameter | mm | Φ16 |
| Max rotation speed of the tube | rpm | 1200 |
| Stranding pitch | mm | 49.3-372.7mm ( 36 stage ) |
| Diameter of draught wheels | mm | Φ1200×Φ1200 |
| Main motor power( AC variable frequency speed regulation ) | kw | 37 |
| The specifications of the bobbin | / | d1: 630 mm L1: 475 mm d4: 127 mm |
Take-up bobbin | / | PN630-PN1600 |

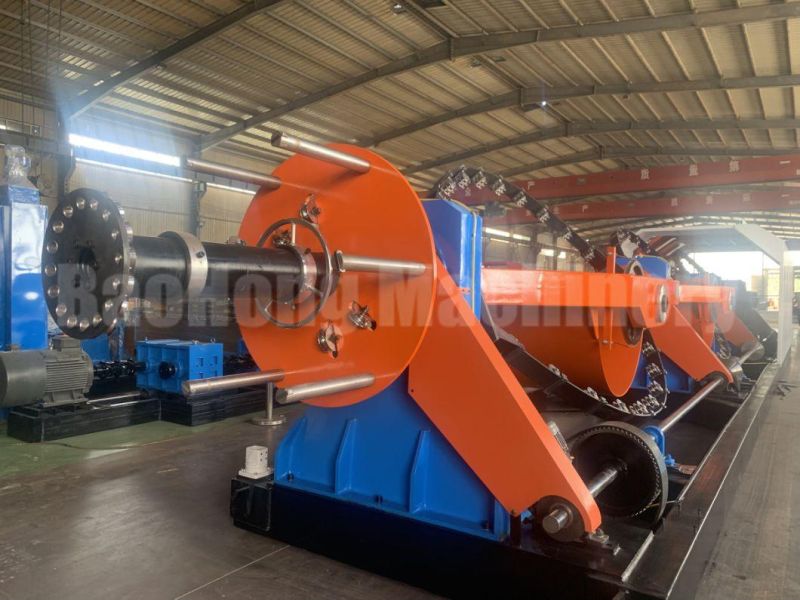

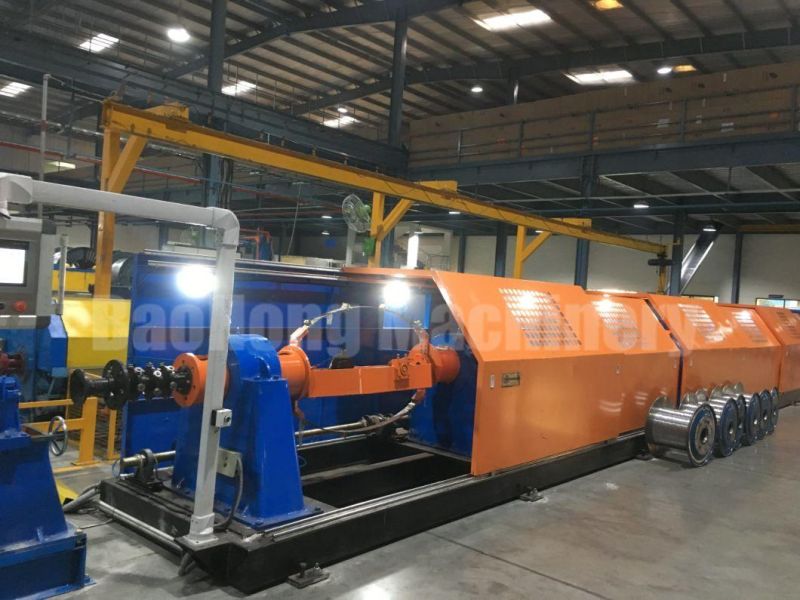

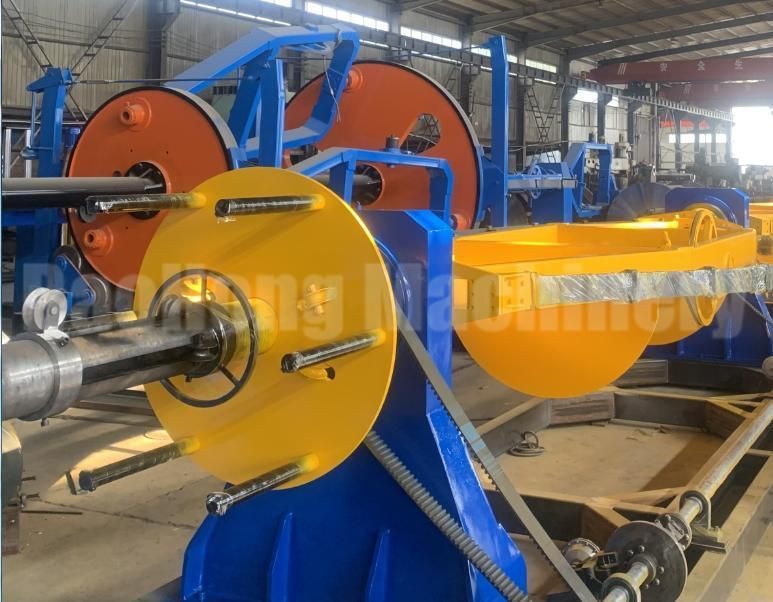

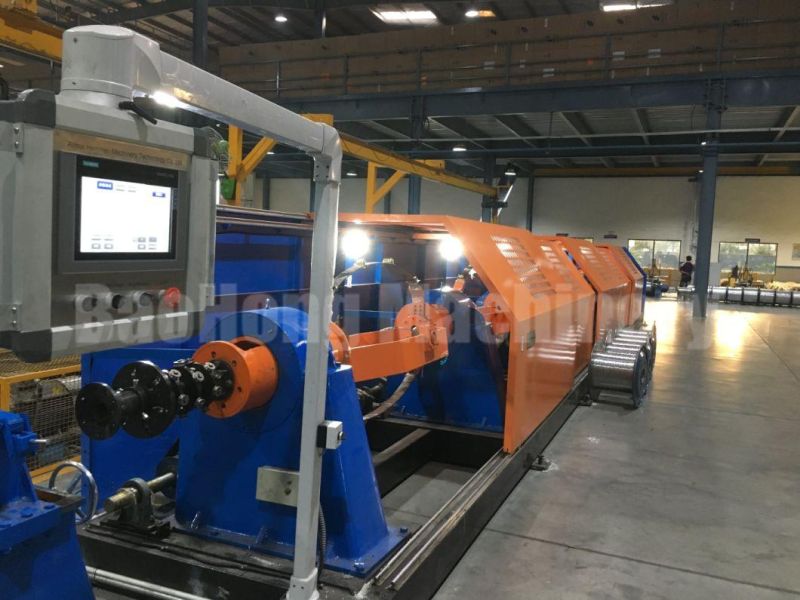

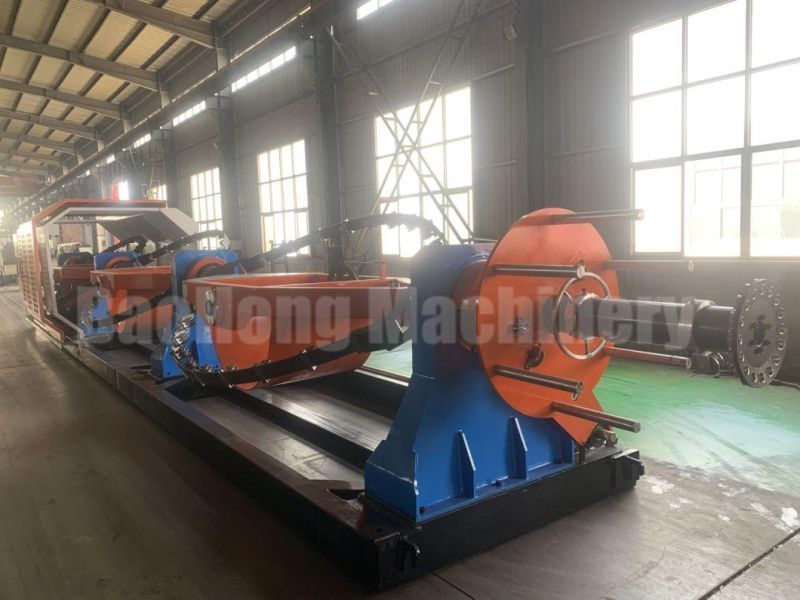

3.Photo:
