Manufacturing Equipment for Electrical & Electronic Product

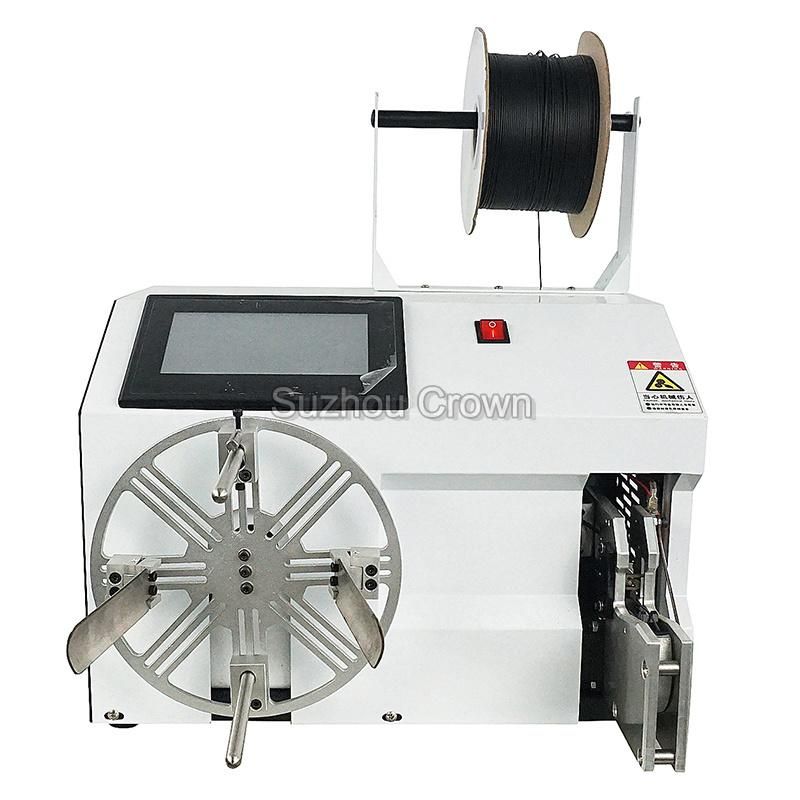

Semi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30A

Suzhou Crown Electronic Technology Co., Ltd.
  • Voltage:220,110VAC; 50,60Hz
  • Warranty:1 Year
  • Model:Wl-30A
  • Winding Diameter:50-200mm (Adjustable)
  • Coil Size:220mm
  • Winding Speed:1-30 Levels (Adjustable)

Base Info

  • Model NO.:WL-30A
  • Winding Circle:1-999 Circles (Adjustable)
  • Twist Bundle Length:60-140mm (Adjustable)
  • Binding Diameter:φ5-40mm
  • Binding Circle:Adjustable (Suggest 2-6 Circles)
  • Twist Speed:1-2 Levels (Suggest Level 2)
  • Twist Ties:Encased Iron Core PE Material
  • Twist Shape:Round Shape & Long & 8 Shape
  • Weight:30kg
  • Dimension:450X390X580mm (Lxwxh)
  • Transport Package:Carton
  • Specification:cm
  • Trademark:Crown
  • Origin:China, Kunshan
  • HS Code:8479819000
  • Production Capacity:L=100mm, 2, 000-3, 000PCS,H

Description

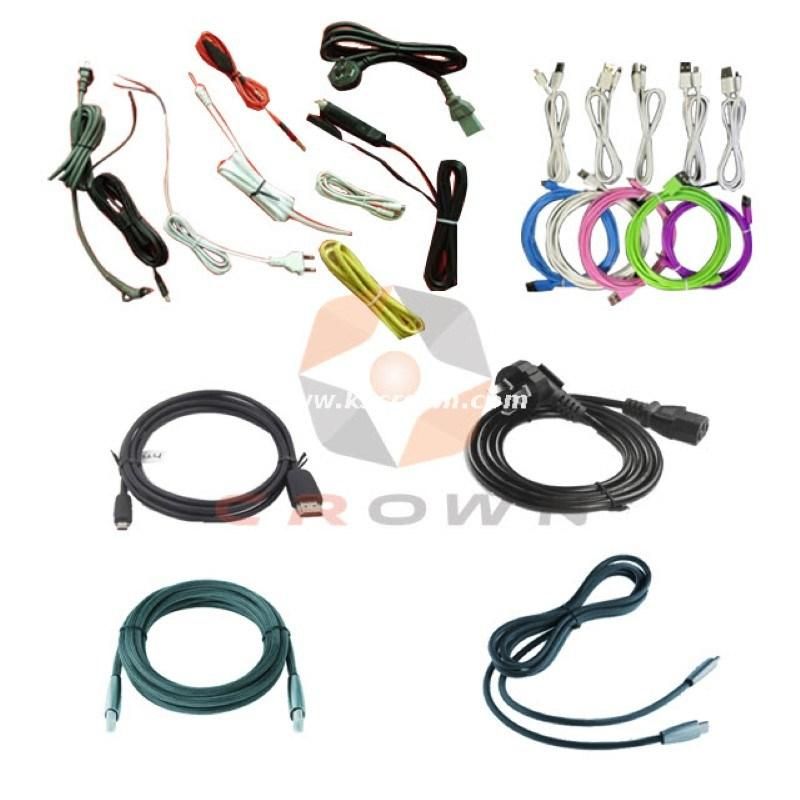

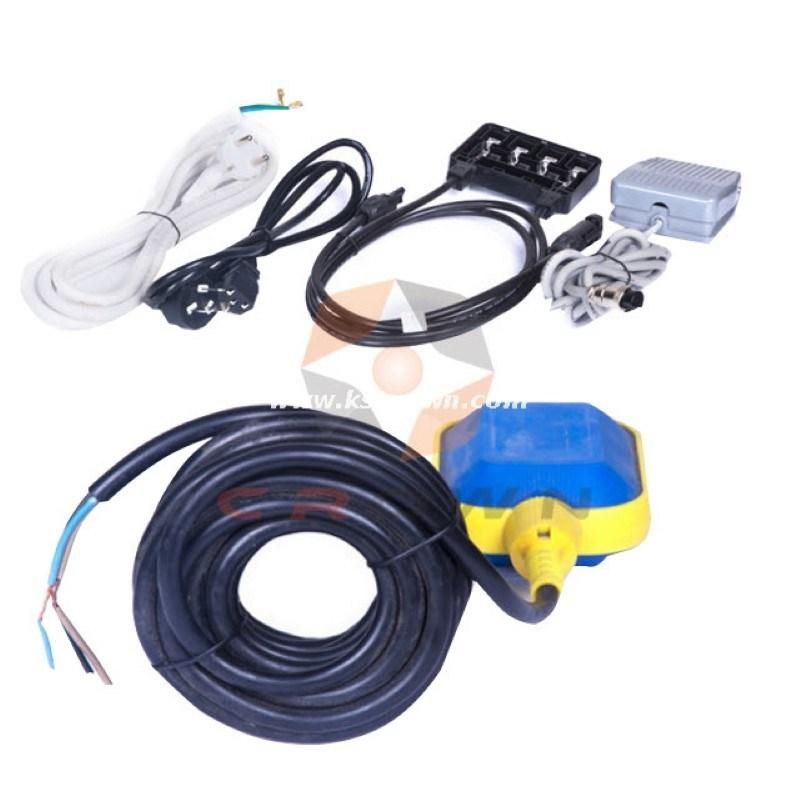

450x390x580mm (LxWxH)This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc. It can customize the number of coils, the number of ties and the length of the cable tie.
  • This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc.

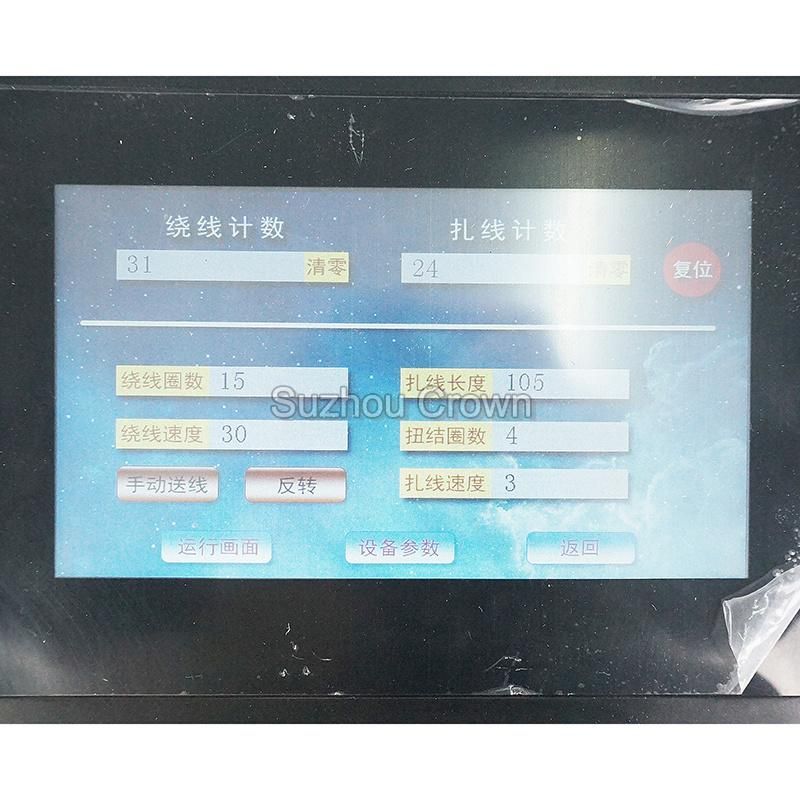

  • PLC program control, LCD text parameter setting, easy to operate

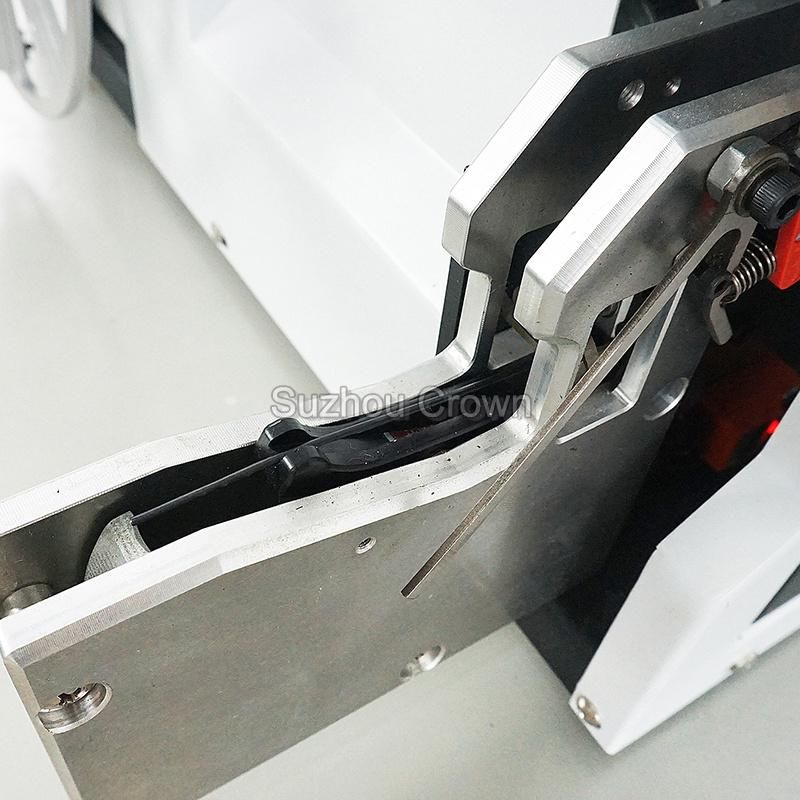

  • Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire

  • This machine can customize the number of coils, the number of ties and the length of the cable tie

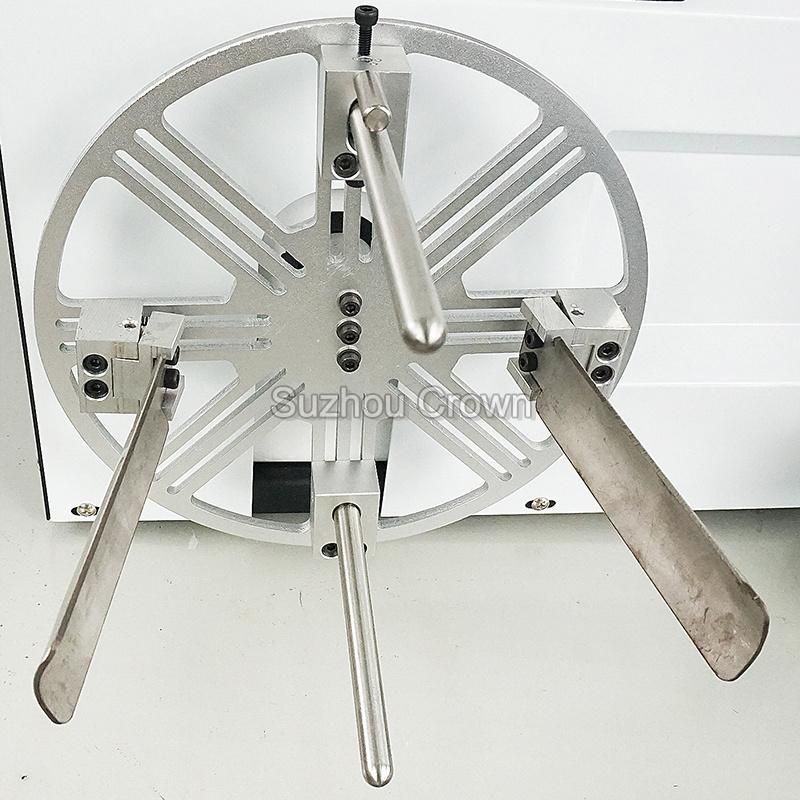

  • The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation


Semi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30ASemi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30ASemi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30ASemi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30ASemi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30ASemi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30ASemi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30A
Packing & Shipping:


For small and light products packed by cartons,for large and heavy products packed by wooden


Semi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30A

Related products:

Semi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30A

Semi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30A

FAQ:

 1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.
2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.
5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.


Company information:

Semi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30A
Certificate:
Semi Automatic Electric Motor Coil Winding Machine Cable Winding Machine Wl-30A

Contact:

Pls contact Suzhou Crown for price inquiry or any other questions/doubt.
