• Model NO.：WL-TT05
• Type：Full Automatic Digital
• Stroke：50mm
• Model：Wl-Tt03
• Transport Package：Wooden Case Package
• Specification：600x185x280 mm
• Trademark：Dimension
• Origin：Kunshan City
• HS Code：8479811000
• Production Capacity：10000

Basic Info.

Model NO. WL-TT05 Type Full Automatic Digital Stroke 50mm Model Wl-Tt03 Transport Package Wooden Case Package Specification 600x185x280 mm Trademark Dimension Origin Kunshan City HS Code 8479811000 Production Capacity 10000

Product Description

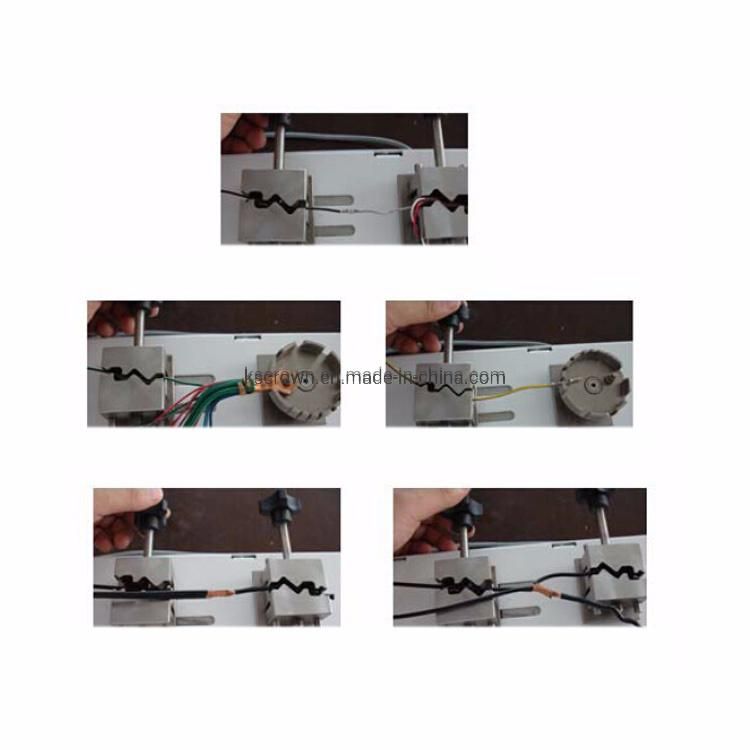

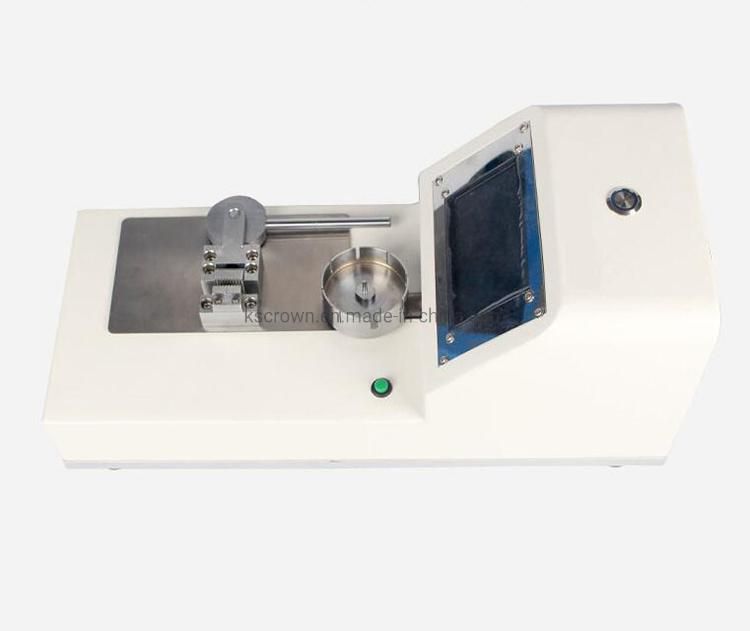

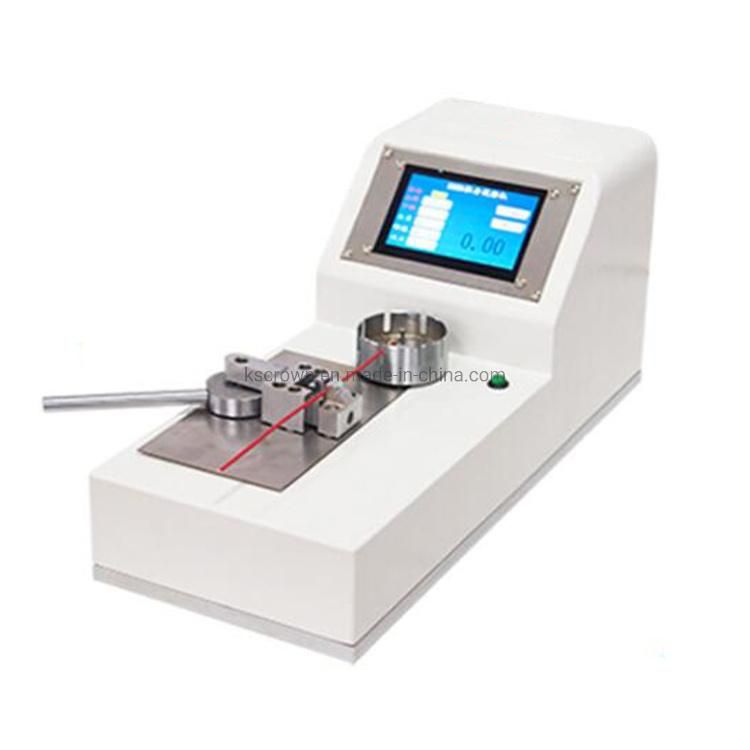

 WL-TT05 Automatic Tensile Testing Equipment wire crimping pull force tester 500n 1000N

Usage:
This is an automatic wire crimp pull tester, which is designed to measure tensile strength of components up to 500N/1000N.

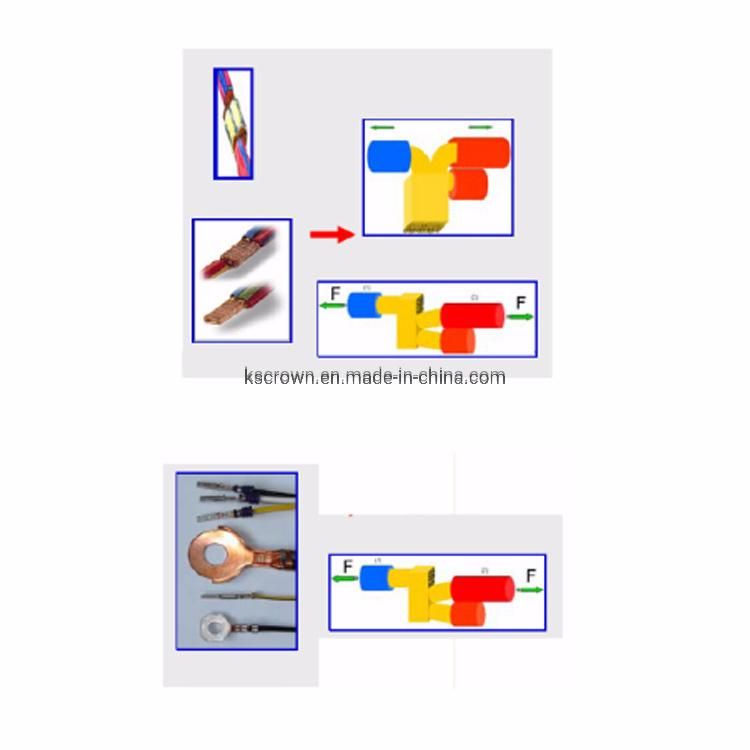

• Function: peak force, non-destructive test, UL test values for pull out.

• Motor driven, color touch screen operation, automatic measurement and display of the tension value, simple operation and accurate measurement.

• It can test the peak tensile force, and can also set the upper limit of tensile force and test time for non-destructive tensile test.

• With the self-developed test software, the peak graph displays the test process, communicates with the computer and printer, and prints in real time.

• The data center can store 16 programs to meet the testing requirements of commonly used wires.



Model	WL-TT05
Test range	0~500(N)/0~50(Kg), 1000N can be customized
Test accuracy	±0.04N
Test speed	10-800mm/min
Test tolerance	0.04N
Power	100W
Program storage	16 groups
Power supply	AC220V, 50/60Hz
Dimensions	(L×W×H) 430×180×210mm
Net weight	10KG



Company info:


Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models

to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidan
