• Electrical Part：Siemens
• Bearing：NSK
• Cylinder：Airtac
• Air Condition：Ritta
• Crosshead：European
• Gear Box：Italy or China
• Transport Package：Export Standar Packing
• Specification：GT1246 coiling machine
• Trademark：GOLDEN TECHNOLOGIES
• Origin：Dongguan of China
• HS Code：84772090
• Production Capacity：5set,Month

Basic Info.

Electrical Part Siemens Bearing NSK Cylinder Airtac Air Condition Ritta Crosshead European Gear Box Italy or China Transport Package Export Standar Packing Specification GT1246 coiling machine Trademark GOLDEN TECHNOLOGIES Origin Dongguan of China HS Code 84772090 Production Capacity 5set/Month

Product Description

(1)APPLICATION:

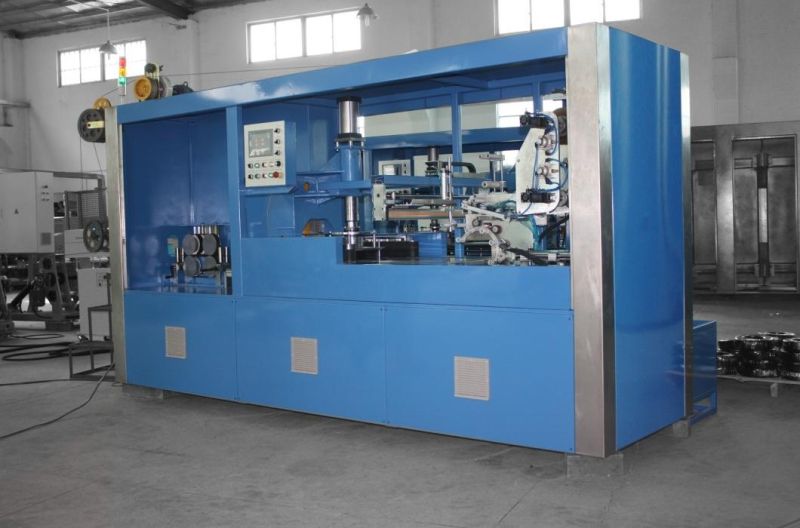

GT1246 AUTO COILING machine ( for round cables and flat cables)

(2)Components:
- Main machine body--------------------------1 set
- Length counter-------------------------------1 set
- Wire/cable feeding device----------------- 1 set
- Gate type Cutter-----------------------------1 set
- Coiling plate & coiling head----------------1 set
- Traversing system---------------------------1 set
- Electrical control & operation system----1 set

(3)Main electric part and bearings:
- Coiling system: SIEMENS / TECO 7.5 HP AC Motor + Delta 7.5 HP Inverter.
- Traversing system: Delta /Mitsubishi servo motor + Delta/Mitsubishi servo driver or equivalent substitutes.
- Bearings - NSK or NTN the famous brand from Japan
- Control system: Delta/Mitsubishi PLC the famous brand from Japan.

4.  Specification table:

Model	Height H	Outside diameter OD	Inside diameter ID	Cable diameter	Wrapping material	Average output (100M/coil)
C1246	60-120	φ240-φ460	Φ180	Φ2.0-φ8.0	PVC/PE	1.5-2.2 Coil/min

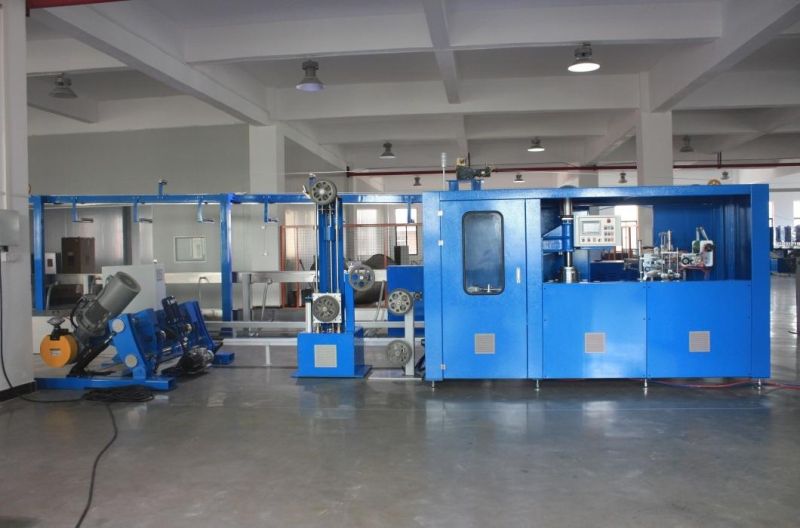

Pictures:

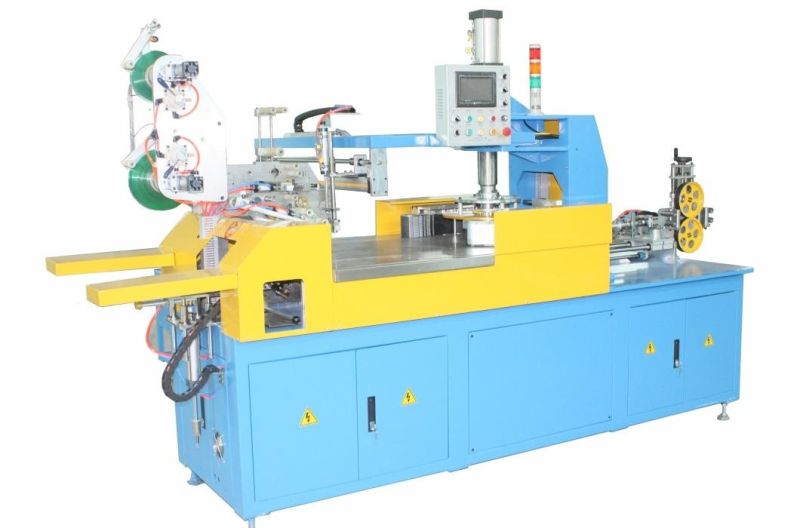

More machinery for review:


(4)ABOUT US
1. We produce all kinds of cable / wire making / processing equipment and accessories.
2. We are the leading manufacturer of  any kinds of complete wire and cable extrusion line in China since 2004.
3. We supply best after-sales service: Install / debug / repair
4. Our machine has exported more than 63 different countries,like Germany,Poland,Italy,Russia,etc.
5. We electrical parts are used the international qualified brand, like Siemens, ABB, etc.
