• Model NO.：Jaguar M8
• Number of Cooling Zones：1
• Length of Heating Zones：2900mm
• Heating Mode：Hot Air
• Cooling Mode：Forced Air
• Max. Width of PCB：350mm
• Mesh Belt Width：400mm
• Transmission Net Height：880±20mm
• Power Supply：5 Line 3 Phase 380V 50,60Hz
• Dimension(L*W*H)：4300X1000X1490mm

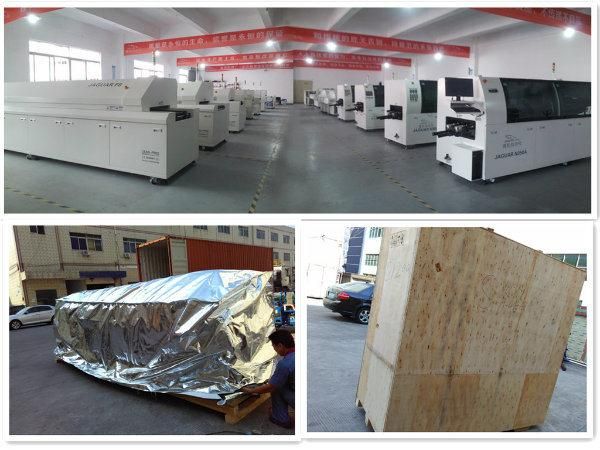

• Transport Package：Wooden Case
• Specification：CE
• Trademark：JAGUAR
• Origin：Shenzhen, China
• HS Code：85151900
• Production Capacity：100PCS,Month

General

Dimension(L*W*H)

4300×1000×1490mm

Weight

900KG

Color

Computer gray

Introduction:
No.1 The unique advanced long life heating system
1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .
 2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace .3.Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .
4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures can open completely so that easy to clean the oven inside .

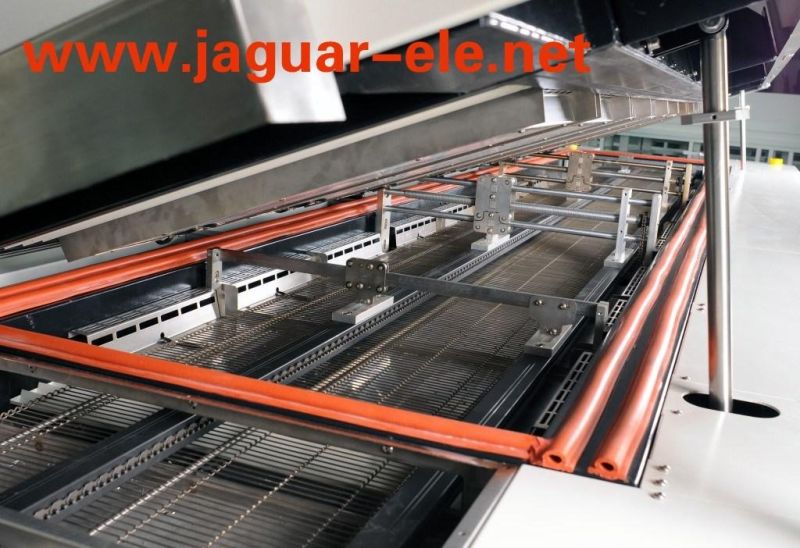

No.2 Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1500mm/min.
2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .
3. Special stainless belt: durable and wear-resistant, not easy to deform and long life.

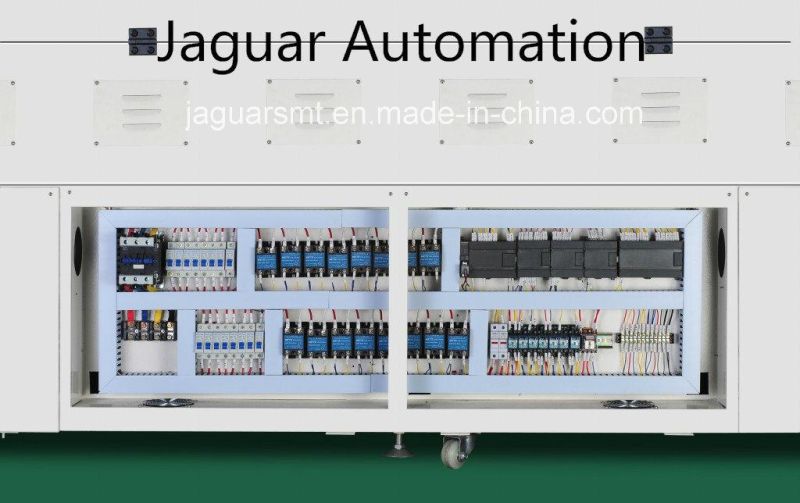

No.3 Stable and reliable electrical control system
1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .
2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .
3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .
4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.
5 .Failure diagnosis and sound light alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.

 There is english manual or guide video that show you how to use machine.

  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

 2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

  If it exceeds 0.5KG, you need to pay the postage.

 3) MOQ ?

 1 set machine, mixed order is also welcomed.

 4) How can I buy this machine from you? ( Very easy and flexible !)

  A. Consult us about this product on line or by e-mail.

 B. Negotiate and confirm the final price , shipping , payment methods and other terms.

 C. Send you the proforma invoice and confirm your order.

 D. Make the payment according to the method put on proforma invoice.

 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

 And 100% quality check before shipping.

 F.Send your order by air or by sea.

 5)Why choose us ?

 A. Gold supplier on MIC

 B. Trade assurance to US$900,000 !

 C. Best price & Best shipping & Best service !
