Wl-918ht Multicore Sheathed Cable Cutting Stripping Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New

Base Info

  • Model NO.：WL-918HT
  • Certification：CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Core Wire Size：2-8core
  • Wire Size：3-10mm
  • Speed：1100PCS,H (Length=500mm)
  • Cutting Length：0.01-999999.99mm
  • out Jacket Stripping Length：Side a: 0.1-250mm, Side B: 0.1-70mm
  • Core Wire Stripping Length：Side a: 0.1-15mm, Side B: 0.1-15mm
  • Volgate：AC220V±10%, 50Hz
  • Power：1600W
  • Stripping Accuracy：0.01mm
  • Air Pressure：0.5-0.8MPa
  • Display：7-Inch Touchscreen Display
  • Transport Package：Carton
  • Specification：80*72*62cm
  • Trademark：Crown
  • Origin：China, Kunshan
  • HS Code：8479819000
  • Production Capacity：650PCS,Hour(L=200mm)
  • Package size per unit product：80.00cm * 72.00cm * 62.00cm
  • Gross weight per unit product：120.000kg

Description

ModelWL-908HTWeight120KGFeeding method12-wheel belt feederCutting length0.01-999999.99mmWire diameterφ3mm-φ10mmCore wires2-8 coresOuter sheath stripping lengthside A: 0.1-250mm, side B: 0.1-70mmCore wire stripping lengthside A: 0.1-15mm, side B: 0.1-15mmStripping accuracy0.01mmBlade materialJapanese Tungsten Steel/Swedish High Speed SteelCapacity1100pcs/h (length=500mm)Detect functionwire presence detectionAir pressure0.5-0.8MPaInput powerAC220V/50HzPower1.6KWRated power0.8KWTransmission structurehybrid stepping motor, precision ball screw, linear guideProgram storageserial number 00-99Display7-inch touchscreen displayFeatures:

This is an automated cable cutting and stripping machine for multi-core cables. It is capable of stripping outer sheath and inner core wire insulation simultaneously.

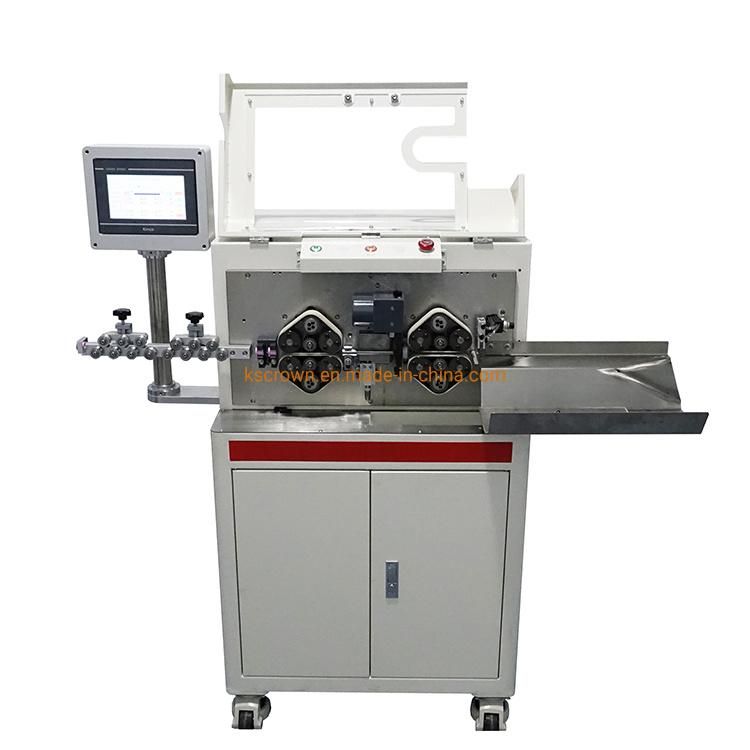

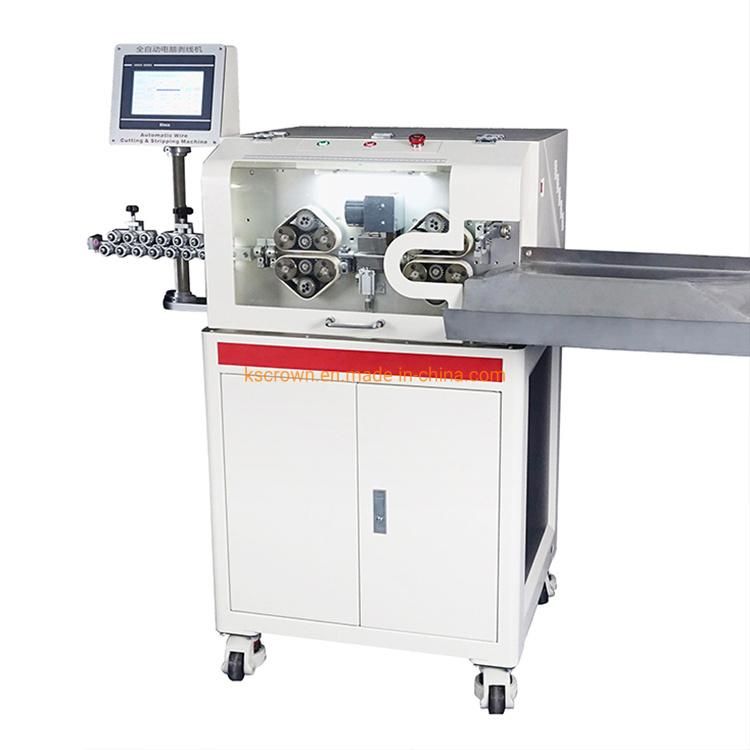

Product show:


Wl-918ht Multicore Sheathed Cable Cutting Stripping MachineWl-918ht Multicore Sheathed Cable Cutting Stripping Machine

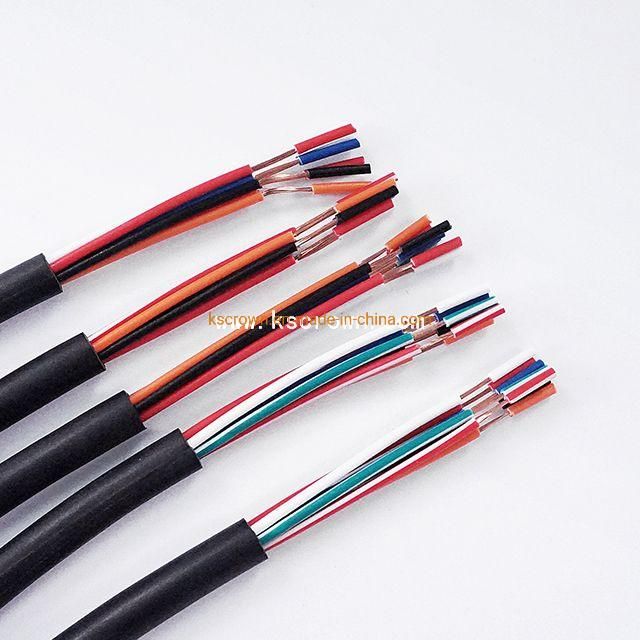

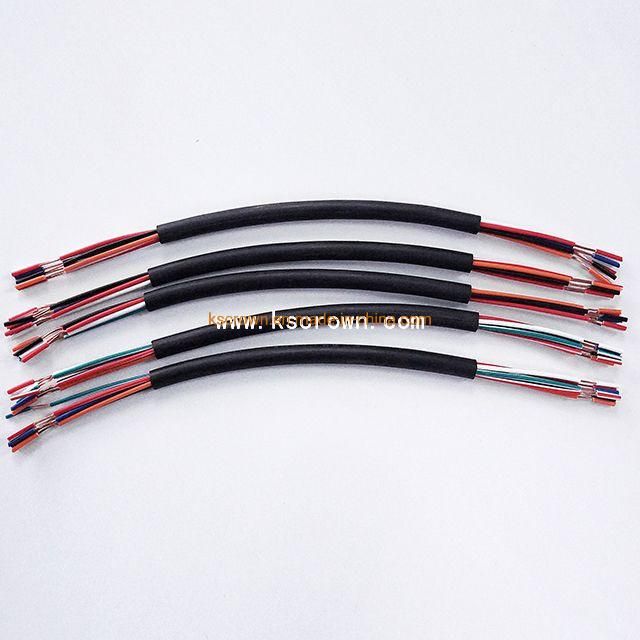

Machine processing wire samples:



Wl-918ht Multicore Sheathed Cable Cutting Stripping MachineWl-918ht Multicore Sheathed Cable Cutting Stripping Machine

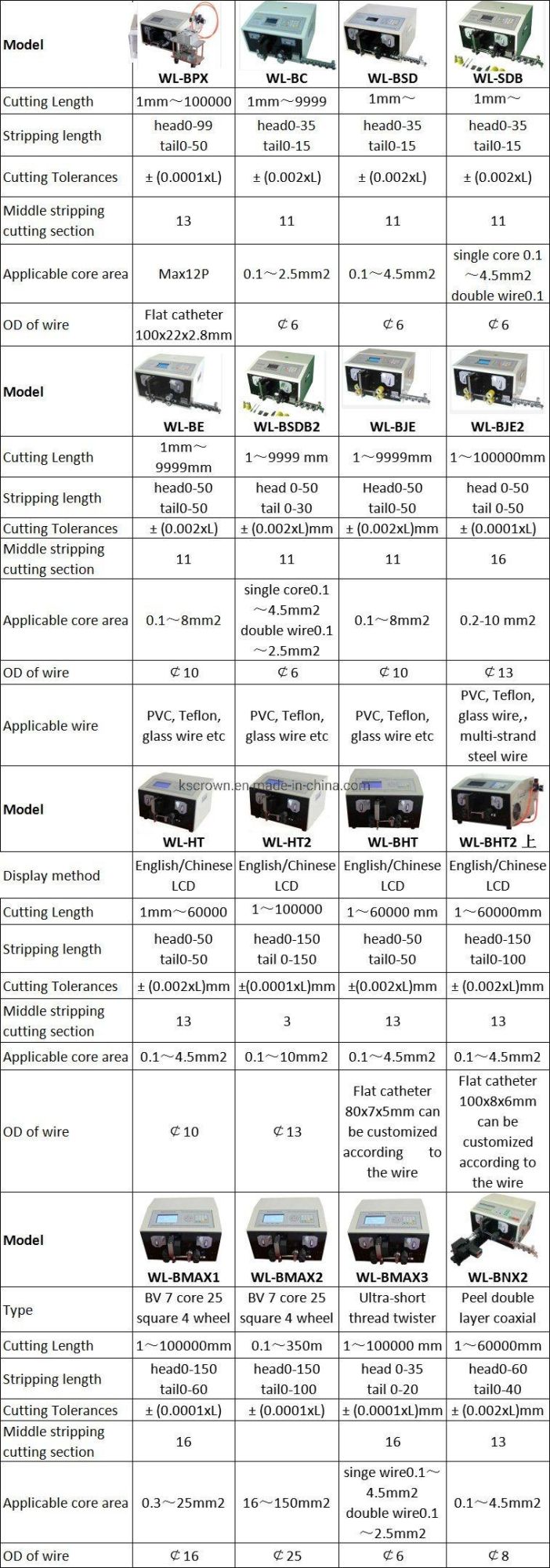

Related products:
