Independent Motor Floor Batch Loading System Rigid Wire Stranding Machine

Hejian Bao Hong Electrical Machinery Co., Ltd.
  • After-sales Service：One Year Warranty
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：630,1+6+12+18+24+30
  • Mould Life：>1,000,000 Shots
  • Type：High-speed Stranding Machine
  • Material：Metal
  • Colour：as Required
  • Wire Diameter Specification：1.5-5.0mm
  • Cage Speed：46-231 Rpm
  • Stranding Pitch：71-781 mm
  • Traction Wheel Diameter：2000 mm
  • Pay-off Bobbin in Cage：Pnd 500,630,710
  • Central Pay-off Bobbin：Pn800-Pn1600
  • Take-up Bobbin：Pn1250-Pn3150
  • Central Height：1000 mm
  • Transport Package：Seaworthy Packing
  • Specification：630 , 12 + 18 + 24
  • Trademark：BH
  • Origin：Hejian, Hebei, China
  • HS Code：8479400000
  • Production Capacity：15 Sets,Month

Description

Specification500/12+18+24630/12+18+24710/12+18+24  Dia. of single wire(mm)Copper1.5-5.0 Aluminium1.8-5.0Production dia.(mm)45Stranding cage speed ( r/min)75-23164-17046-146Stranding pitch (mm)71-78084-91189-1163Diameter of wheel haul-off (mm)200025002500Production speed (m/min)14.3-58.513.1-53.5Take-up reelPN1250-PN2500PN1600-PN3150
3.Photo

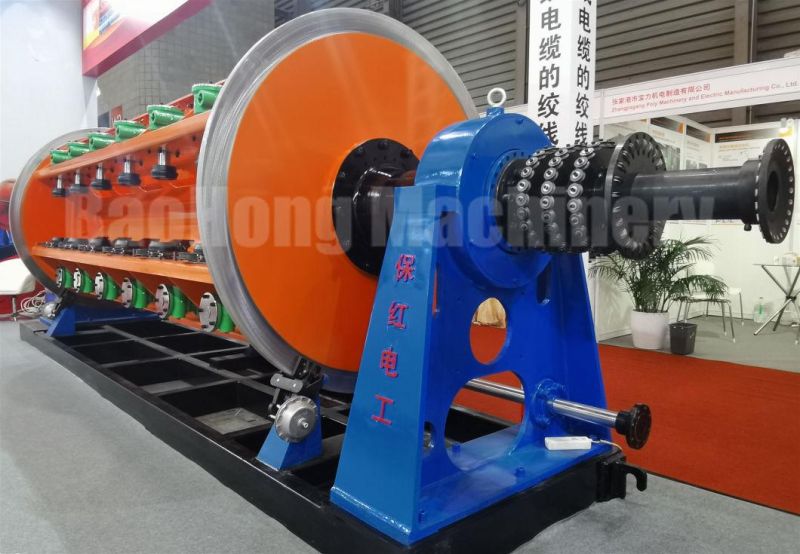

Independent Motor Floor Batch Loading System Rigid Wire Stranding Machine

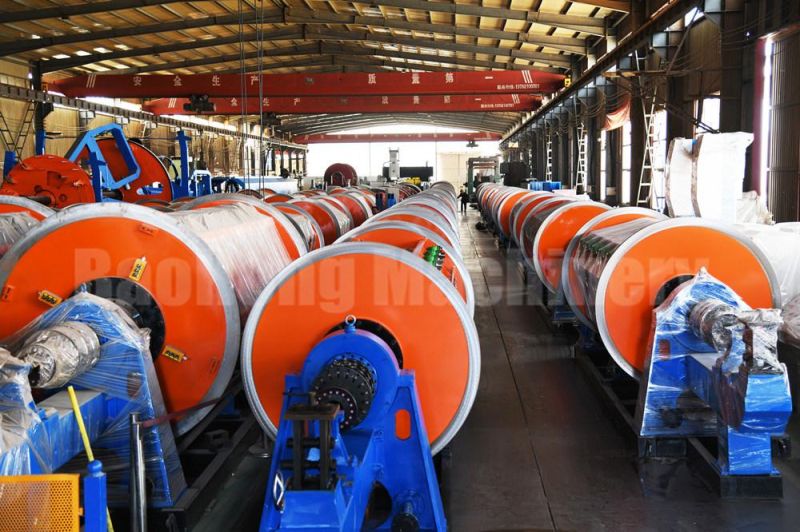

Independent Motor Floor Batch Loading System Rigid Wire Stranding Machine

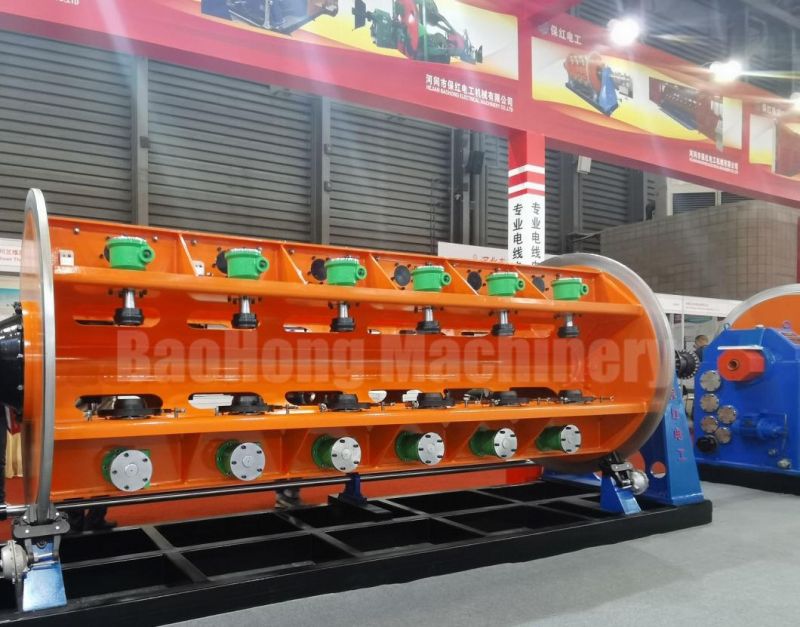

Independent Motor Floor Batch Loading System Rigid Wire Stranding Machine
Independent Motor Floor Batch Loading System Rigid Wire Stranding Machine
Independent Motor Floor Batch Loading System Rigid Wire Stranding Machine
