• Model NO.：FC-300B,400B,500B,650B,800B,1000B
• Conductor Stranding Section Area：0.035-0.45mm2
• Take up Bobbin Size：300bobbin
• Direction of Lay：Optional for Left or Right
• Max Rotating Speed：3000(6000twist)
• Tension Control Method：Mechanism Friction
• Brake Mode：Electromagnetic Brake
• Machine Color：Sky Blue
• Precision：High Precision
• Customized：Customized
• Transport Package：Simply Packed
• Specification：ISO9001
• Trademark：FC
• Origin：Jiangsu Kunshan
• HS Code：847981100
• Production Capacity：50sets,Month

Basic Info.

Model NO. FC-300B/400B/500B/650B/800B/1000B Conductor Stranding Section Area 0.035-0.45mm2 Take up Bobbin Size 300bobbin Direction of Lay Optional for Left or Right Max Rotating Speed 3000(6000twist) Tension Control Method Mechanism Friction Brake Mode Electromagnetic Brake Machine Color Sky Blue Precision High Precision Customized Customized Transport Package Simply Packed Specification ISO9001 Trademark FC Origin Jiangsu Kunshan HS Code 847981100 Production Capacity 50sets/Month

Product Description

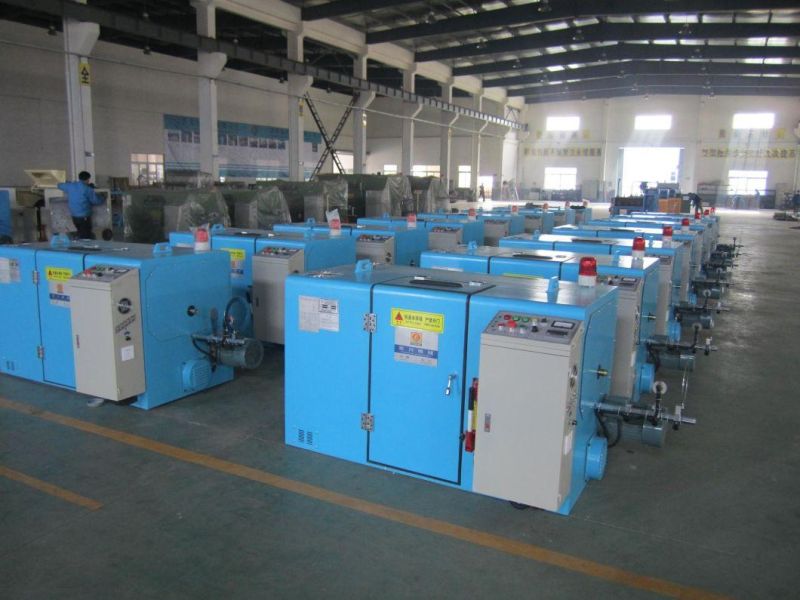

Equipment models: FC-300A
Twisting usage: It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires and double twisting for core wires.

Single wire dia(mm): φ0.08-φ0.28mm
Stranding section area(mm2) : 0.035-0.45
Core wire single wire dia(mm) : φ0.25 -φ0.8mm
Core wire stranding outer dia(mm) : φ0.5 -φ1.6mm
Pitch(mm): 4.5-17.5 (10sections)
Direction of lay: Optional for right or left
Take up bobbin: φ300*φ30*160
Max rotating speed: 3000(6000twist)
Main motor power: 3.7KW
Inverter power : 3.7KW
Tension control method: Mechanism friction
Protection: Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode: Electromagnetic brake
Traversing method: Rolling ring drive units, winding pitch and breadth are adjustable.
Operation mode: push-button control
Dimension: 2300L*1000W*1150H
