• Model NO.：FC-800B-6
• Type：High-speed Stranding Machine
• Twisting 7PCS Bare Copper Wires：Twist Tinned Wire, Silver Jacketed Wire, Enamelled
• Double Twisting for Core Wires：Wire From Wire Diameter 0.38 to 1.7
• Stranding Section Area：From 1.0 to 16 mm2
• Max Rotating Speed：1500rpm
• Take up Bobbin Size：Diameter 800mm
• Main Motor Power：15kw
• Tension Control Method：Touch Screen+PLC+Magnetic Powder Clutch
• Protection：Machine Will Automaticlly Brake When Wire Inside
• Traversing Method：Rolling Ring Drive Units,Winding Pitch and Breadth
• Brake Mode：Electromagnetic Break
• Transport Package：Simply Packed
• Specification：ISO9001
• Trademark：FC
• Origin：China
• HS Code：8479811000
• Production Capacity：60set,Month

Basic Info.

Model NO. FC-800B-6 Type High-speed Stranding Machine Twisting 7PCS Bare Copper Wires Twist Tinned Wire, Silver Jacketed Wire, Enamelled Double Twisting for Core Wires Wire From Wire Diameter 0.38 to 1.7 Stranding Section Area From 1.0 to 16 mm2 Max Rotating Speed 1500rpm Take up Bobbin Size Diameter 800mm Main Motor Power 15kw Tension Control Method Touch Screen+PLC+Magnetic Powder Clutch Protection Machine Will Automaticlly Brake When Wire Inside Traversing Method Rolling Ring Drive Units,Winding Pitch and Breadth Brake Mode Electromagnetic Break Transport Package Simply Packed Specification ISO9001 Trademark FC Origin China HS Code 8479811000 Production Capacity 60set/Month

Product Description

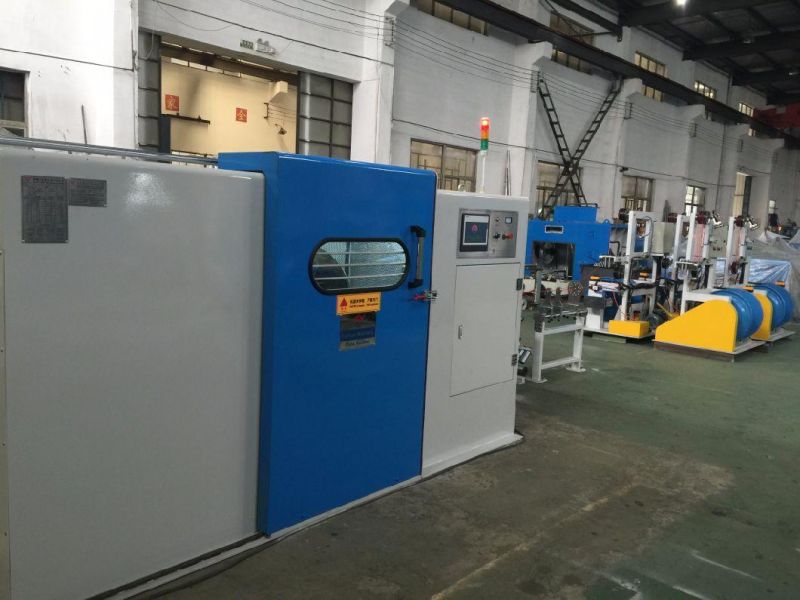

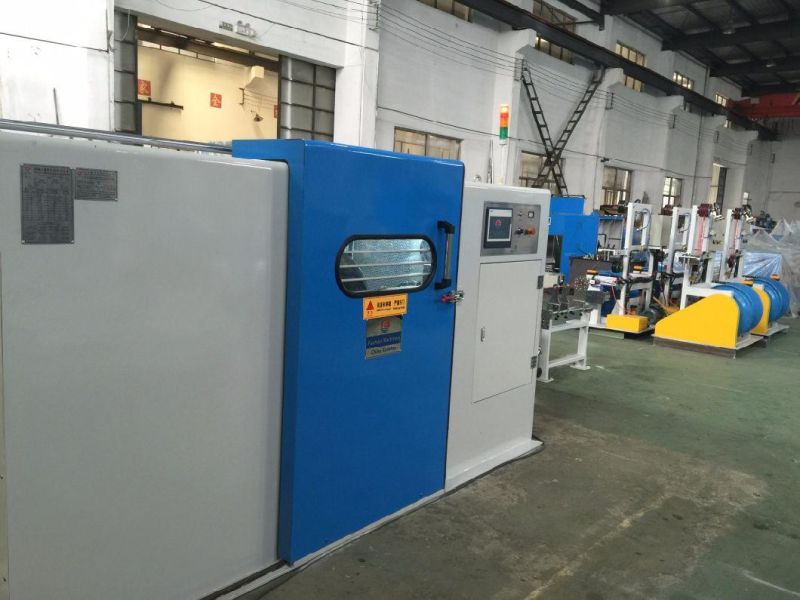

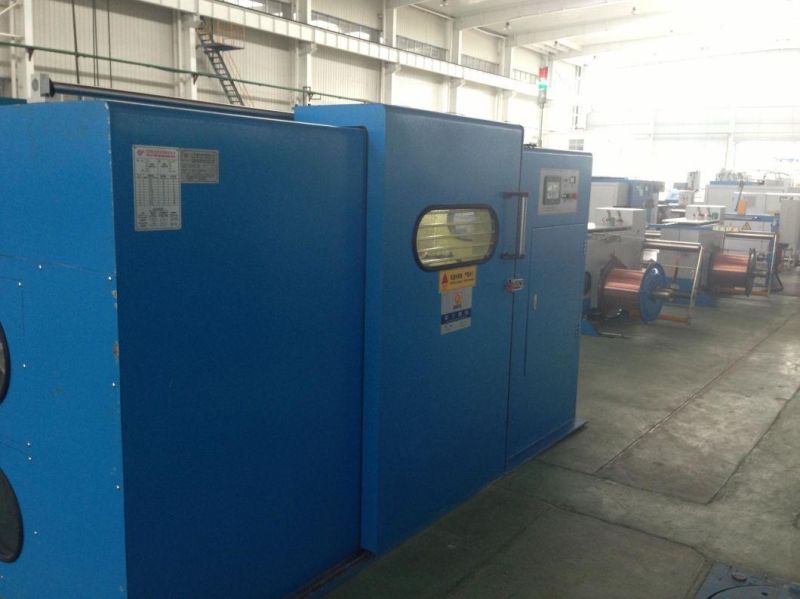

Main performance parameters of FC-800B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).
1.Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.
2.Diameter of single copper wire : φ0.20~φ1.70mm
3.Outer diameter of twisted copper wire: φ1.0~φ5.5mm;
4.Cross section area: φ1.0~φ16mm²
5.Size of take up spool: φ800mm×600mm×φ80mm(according to client's drawings to make).
6. Maximum rotating speed: 1500RPM(3000twist/min)
normal working 1200rpm(2400twist/min)
7.Type of traverse: φ40mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 48~120mm (enclose list of standard lay length).
9. Main motor: 15KW AC motor +frequency converter
10. Weight of copper load: about 800kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted manual pump hydraulic landing.
17. Way of spindle lubrication: butter lubrication.(oil adding automatically by PLC)
18. Index of noise: about 82dB
19.Dimension: (length×breadth×height): 3200×2000×1730mm
20. Weight: 5500Kg
21. Coating: sky blue (may according to customer's requirements).
22. Package: simple waterproof packing
23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make).
24. Sealing of machinery door: seal of plastic.
25. Spindle housings sealing: mechanical block oil ring

For more details, please feel free to contact me.
