Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Wire Size：AWG16-AWG30

Base Info

  • Model NO.：WL-T60
  • Stripping Length：0.1-15mm on One End
  • Cutting Lenght：45-99999mm
  • Productivity：4000PCS,Hour
  • Air Pressure：0.4-0.6MPa
  • Cutting Wire Accuracy：0.01*Lmm (L =Cutting Length )
  • Transport Package：Wooden Carton
  • Specification：1600*900*750mm
  • Trademark：crown
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：50PCS,Month

Description

Basic Info.

Model NO. WL-T60 Stripping Length 0.1-15mm on One End Cutting Lenght 45-99999mm Productivity 4000PCS/Hour Air Pressure 0.4-0.6MPa Cutting Wire Accuracy 0.01*Lmm (L =Cutting Length ) Transport Package Wooden Carton Specification 1600*900*750mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

WL-T60 Fully Automatic high effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine



Specifications:

Four wires simultaneously crimnping terminal.

High efficiency and saving labor very much.



Specification:

Product NameAutomatic Four Wire terminal crimping machine
ModelWL-T60
Function

cutting,single end terminal crimping, single end twisting,

full & half stripping, 4 wires process at the same time.

Capacity10000pcs/h (4 lines at the same time)
Wire sizeAWG30-AWG18
Cutting length30-9999mm
Cutting tolerance±0.1mm
Stripping length1.5-10mm
Pressure2T
Control MethodPLC
Inspection equipmentLow pressure, machine stop, etc.
Supply voltageAC220V
Air pressure0.5Mpa(5kgf/cm) about 200NL/Min
Dimensions80W*802D*173Hcm
Weight260KG

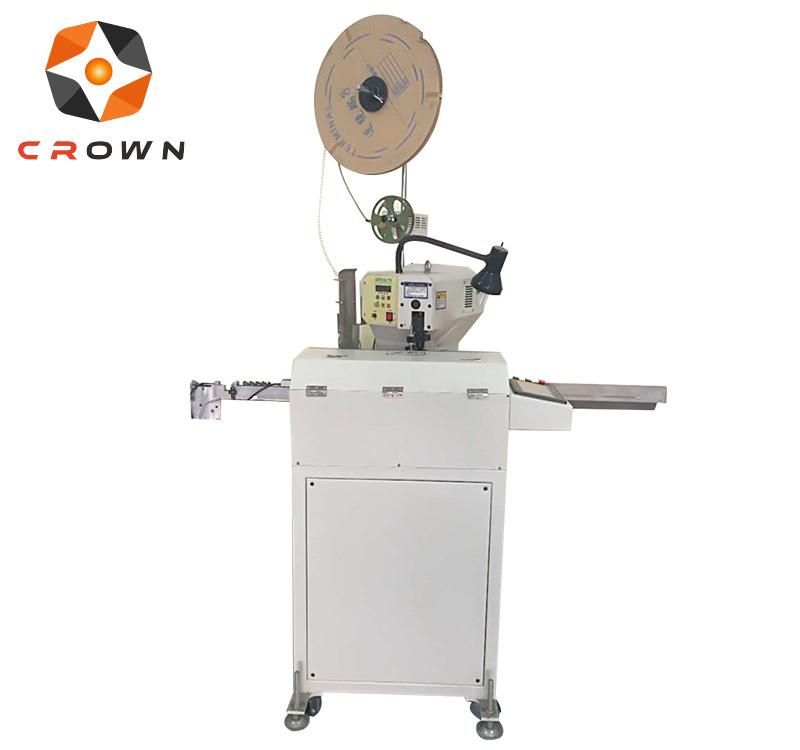

Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine

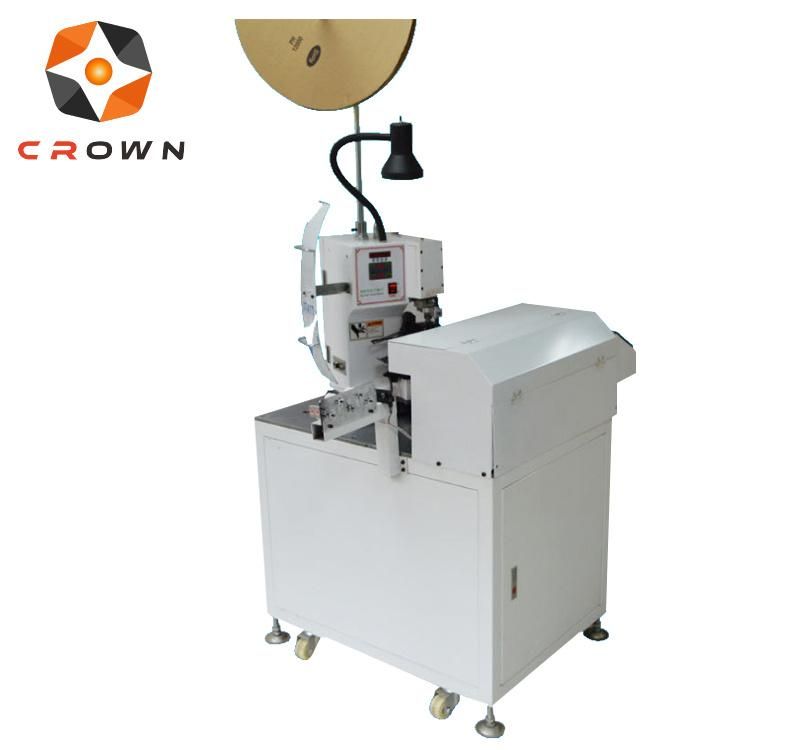

Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine

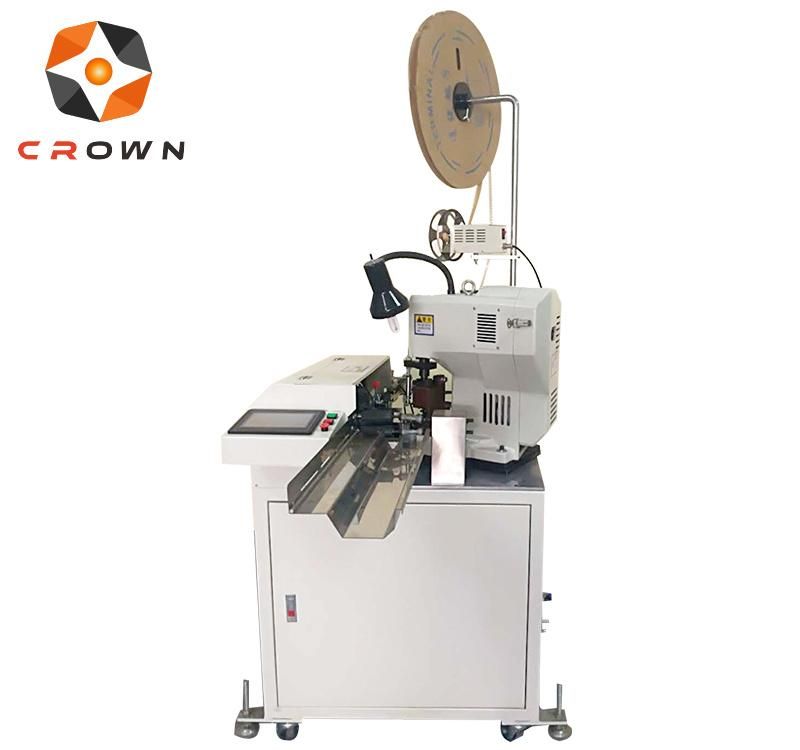

Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine
Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine

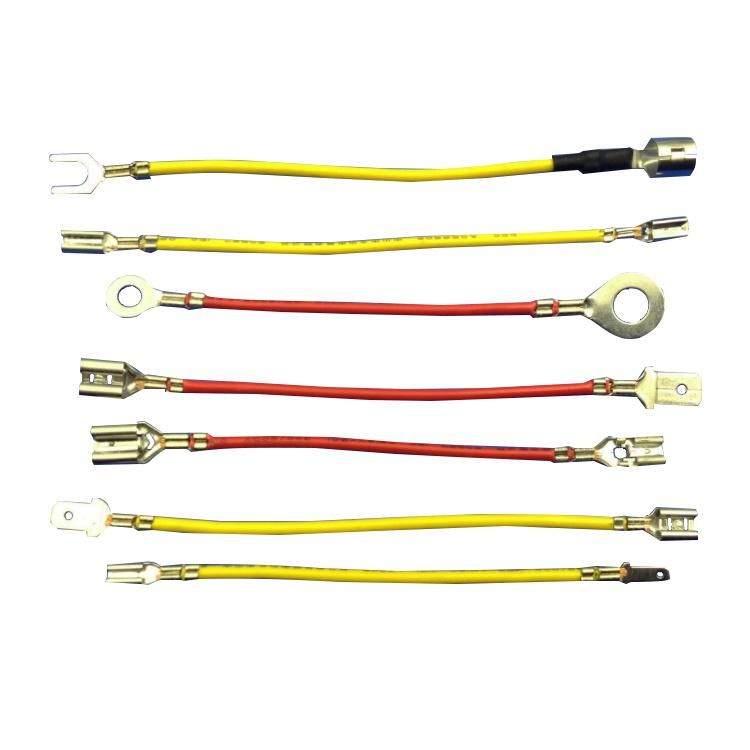

Finished products of this machine below:
Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine

Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine




Certification below

Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine


Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like



Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine

Company Information

Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine


packing & shipping

Wl-T60 Fully Automatic High Effiency Double Head Four Wire Cutting Stripping Terminal Crimping Machine




 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance


If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.

Contact:
Pls contact Suzhou Crown Kitty for price inquiry or any other questions/doubt.
