Manufacturing Equipment for Electrical & Electronic Product

High Precision Temperature Control SMT Reflow Oven Machine

Shenzhen Jaguar Automation Equipment Co., Ltd.
  • Condition:New
  • Certification:CCC, PSE, UL, FDA, RoHS, ISO, CE, Cash
  • Warranty:12 Months
  • Automatic Grade:Automatic
  • Installation:Vertical
  • Length of Heating-Zone:3100mm

Base Info

  • Model NO.:F8
  • Max Width of PCB Board:420mm
  • Weight:1950kg
  • Precision:Normal Precision
  • Heating System:Electric
  • Customized:Customized
  • Machine Dimension:5300 X 1350X 1490mm
  • Exhaust Volume:10m3,Min X 2pipe
  • Power Supply:5 Wire, 3 Phase, 380V 50,60Hz
  • Startup Power Consumption:48kw
  • Temperature Range:Room Temperature-300ºC
  • Transport Package:Wooden Box
  • Specification:CE, ISO
  • Trademark:Jaguar
  • Origin:China Shenzhen
  • HS Code:8515190000
  • Production Capacity:100PCS,Month

Description

Basic Info.

Model NO. F8 Max Width of PCB Board 420mm Weight 1950kg Precision Normal Precision Heating System Electric Customized Customized Machine Dimension 5300 X 1350X 1490mm Exhaust Volume 10m3/Min X 2pipe Power Supply 5 Wire, 3 Phase, 380V 50/60Hz Startup Power Consumption 48kw Temperature Range Room Temperature-300ºC Transport Package Wooden Box Specification CE, ISO Trademark Jaguar Origin China Shenzhen HS Code 8515190000 Production Capacity 100PCS/Month

Product Description

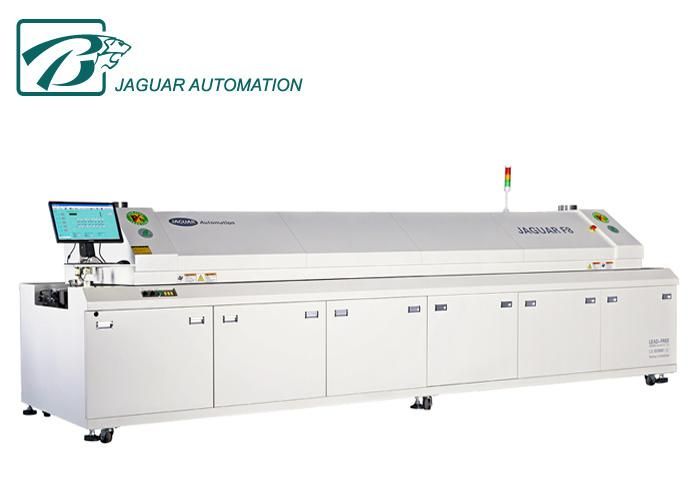

JAGUAR 8 Zones Lead Free Hot Air Reflow Oven F8
High Precision Temperature Control SMT Reflow Oven Machine

Introduction:
  1. Heating zone
1.1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
1.3: 8 heating zones, 16 heating elements( up 8/ bottom 8 ) , independent temperature control and switch
1.4: The latest design of nozzle plate, the best insulation performance

  1. Control system
2.1: Siemens PLC, table machine performance
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch

  1. Convyeor system
3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the accuracy is ±2mm/ Min

4.Cooling zone
4.1: Axial fan forced air cooling ( Up and bottom dual cooling)

5.Protection system
5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function

6.Machine parameters
Machine dimension5300 x 1350x 1490mm
ColorIvory
Net weightApprox. 2250kgs
Exhaust volume10m3/min X 2pipe
Power supply 5 wire, 3 phase, 380V 50/60HZ
Startup power consumption48KW
Steady power consumption8-12KW
Warming timeAbout 30mins
Temperature rangeRoom temperature-300ºC
Mesh width500mm
Max PCB width420mm
Component height Up 25mm/Bottom 25mm
Conveyor directionLeft-right ( option: Right-left)
Conveyor speed300-2000mm/min
Data storageProcess data and status storage(80GB)
Abnormal alarmOver temp or low temp alarm, sound and light 2 modes

7.Machine configuration
Heating zoneUp 8, Bottom 8
Cooling zoneUp 8, Bottom 2
Control modeWINDOWS 7+IPC+PLC
Temperature control modePID closed loop+SSR driver
Thermal couple wire 3pcs
Conveyor systemMesh+Chain
Conveyor control mode3 inverters+Panasonic motor
Hood liftElectric hood lift
UPSStandard, power off standby to protect PCB production completed
