• Model NO.：FC-650B
• Type：High-speed Stranding Machine
• Bobbin Size：800
• Usage：Bare Copper Wire,Tinned Wire,Silver Jacketd Wire,
• Color：Sky Blue or Apple Green
• Tension Control Method：Mechanism Friction
• Protection：Machine Will Automaticlly Brake When Wire Inside
• Conduotor Single Wire Dia：0.2-1.7mm
• Conductor Stranding Section Area：10.-16mm2
• Core Wire Single Wire Dia：1.0-4.0mm
• Core Wire Stranding Outer Dia：2.0-8.0
• Direction of Lay：Optional for Right or Left
• Transport Package：Simply Packed
• Specification：ISO9001
• Trademark：FC
• Origin：China
• HS Code：8479811000
• Production Capacity：60set,Month

Basic Info.

Model NO. FC-650B Type High-speed Stranding Machine Bobbin Size 800 Usage Bare Copper Wire,Tinned Wire,Silver Jacketd Wire, Color Sky Blue or Apple Green Tension Control Method Mechanism Friction Protection Machine Will Automaticlly Brake When Wire Inside Conduotor Single Wire Dia 0.2-1.7mm Conductor Stranding Section Area 10.-16mm2 Core Wire Single Wire Dia 1.0-4.0mm Core Wire Stranding Outer Dia 2.0-8.0 Direction of Lay Optional for Right or Left Transport Package Simply Packed Specification ISO9001 Trademark FC Origin China HS Code 8479811000 Production Capacity 60set/Month

Product Description

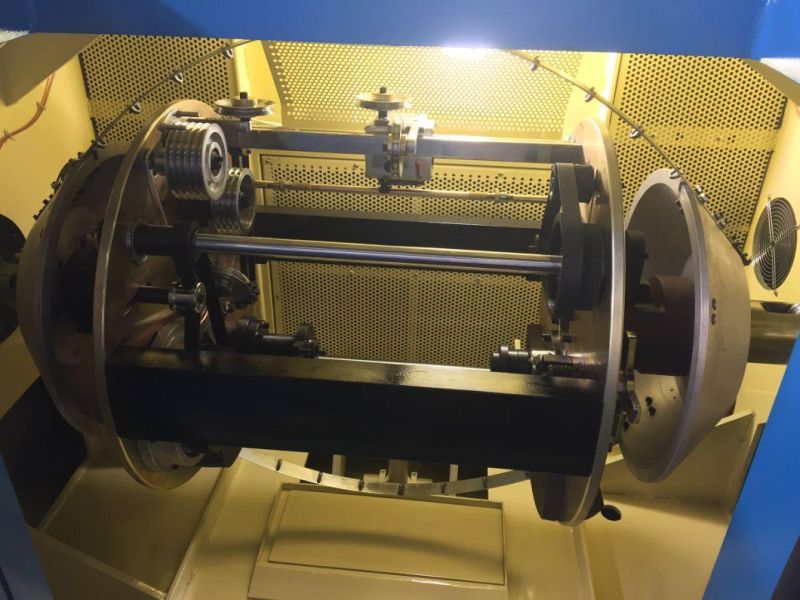

Main performance parameters of FC-650B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).

1. Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.

2.Diameter of single copper wire: φ0.16~φ0.70mm
3.Outer diameter of wire: φ0.84~φ3.2mm;
4.Cross section area: φ0.40~φ6mm²
5.Size of take up spool: φ630mm×430mm×φ125mm(according to client's drawings to make).
6. Maximum rotating speed: 2000RPM
7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length).
9. Main motor: 7.5KW AC motor +frequency converter
10. Weight of copper load: about 400kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted manual pump hydraulic landing.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: about 80dB
19.Dimension: (length×breadth×height): 3300×1450×1650mm
20. Weight: 4500Kg
21. Coating:Ral5015 sky blue (may according to customer's requirements).
