High Speed Bunching Winding Extrusion Stranding Cutting Copper Wire Twisting Machine

Kunshan Fuchuan Electrical and Mechanical Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Mould Life：300,000-1,000,000 Shots

Base Info

  • Model NO.：FC-630
  • Type：High-speed Stranding Machine
  • Usage：Bare Copper Wire,Tinned Wire,Silver Jacketd Wire,
  • Conductor Single Wire Diameter：0.2-1.7mm
  • Conductor Stranding Section Area：1.0-16mm2
  • Core Wire Single Wire Dia：1.0mm-4.0mm
  • Core Wire Stranding Outer Dia：2.0-8.0mm
  • Take up Bobbin Size：800*80*600
  • Color：Sky Blue or Apple Green
  • Tension Control Method：Mechanism Friction
  • Brake Mode：Electromagnetic Break
  • Traversing Method：Rolling Ring Drive Units,Winding Pitch and Breadth
  • Transport Package：Common
  • Specification：ISO9001
  • Trademark：FC
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：50sets,Month

Description

Basic Info.

Model NO. FC-630 Type High-speed Stranding Machine Usage Bare Copper Wire,Tinned Wire,Silver Jacketd Wire, Conductor Single Wire Diameter 0.2-1.7mm Conductor Stranding Section Area 1.0-16mm2 Core Wire Single Wire Dia 1.0mm-4.0mm Core Wire Stranding Outer Dia 2.0-8.0mm Take up Bobbin Size 800*80*600 Color Sky Blue or Apple Green Tension Control Method Mechanism Friction Brake Mode Electromagnetic Break Traversing Method Rolling Ring Drive Units,Winding Pitch and Breadth Transport Package Common Specification ISO9001 Trademark FC Origin China HS Code 8479811000 Production Capacity 50sets/Month

Product Description

High Speed Bunching Winding Extrusion Stranding Cutting Copper Wire Twisting Machine
High Speed Bunching Winding Extrusion Stranding Cutting Copper Wire Twisting Machine
High Speed Bunching Winding Extrusion Stranding Cutting Copper Wire Twisting Machine
High Speed Bunching Winding Extrusion Stranding Cutting Copper Wire Twisting Machine
High Speed Bunching Winding Extrusion Stranding Cutting Copper Wire Twisting Machine
High Speed Bunching Winding Extrusion Stranding Cutting Copper Wire Twisting Machine

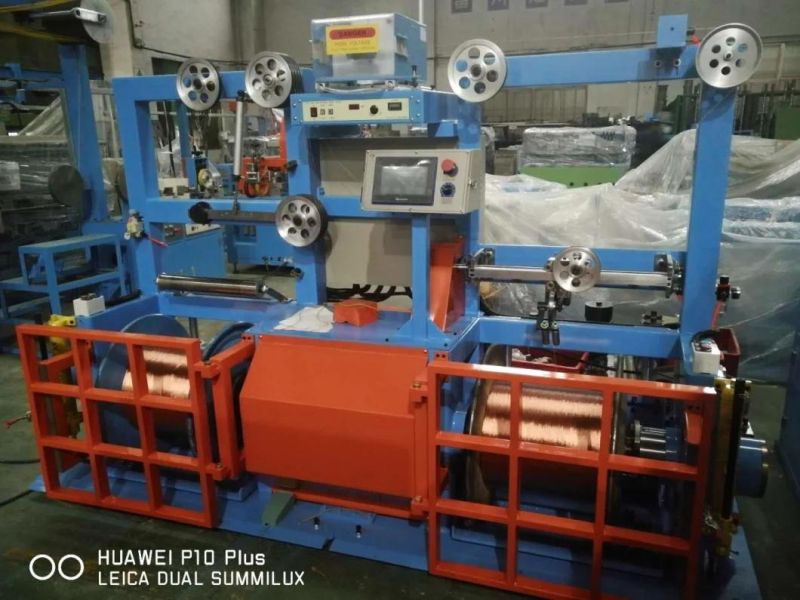

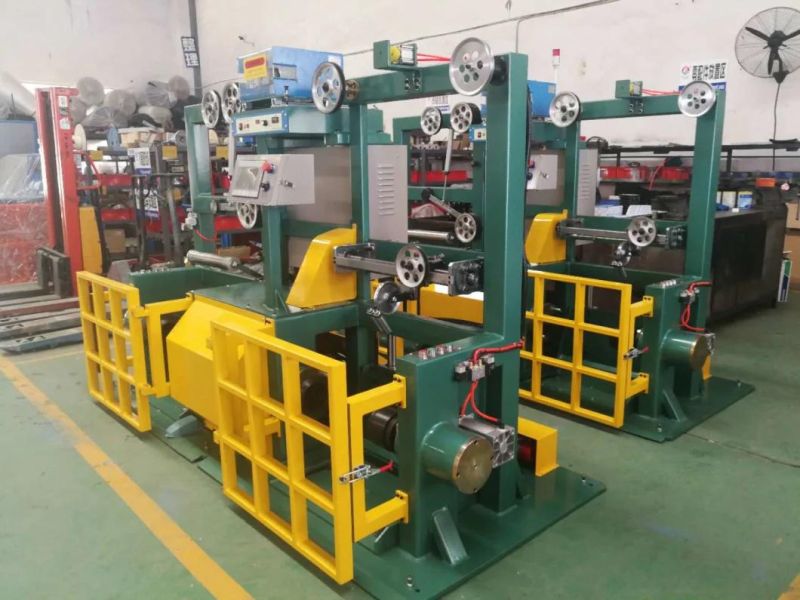

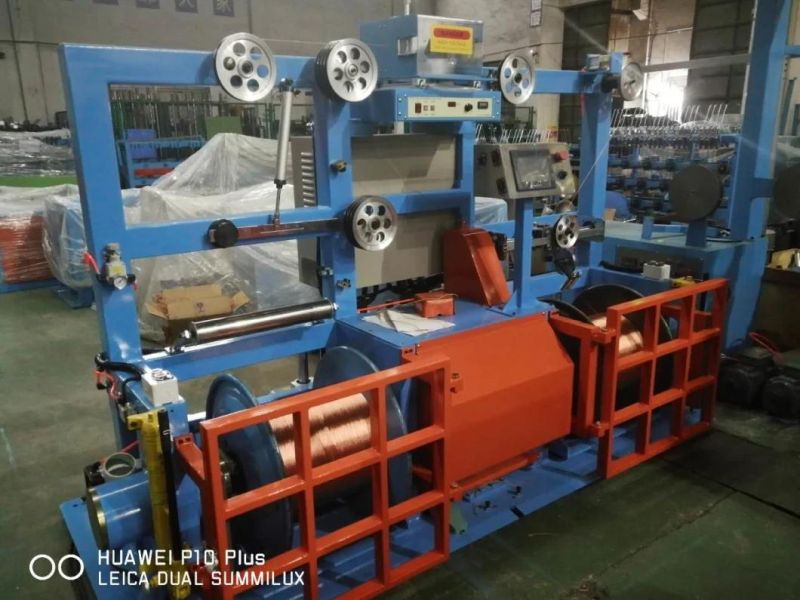

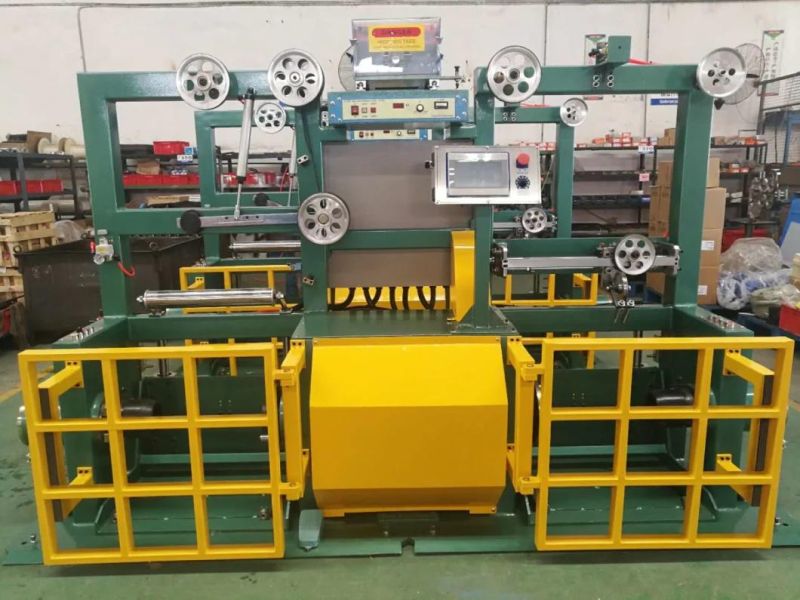

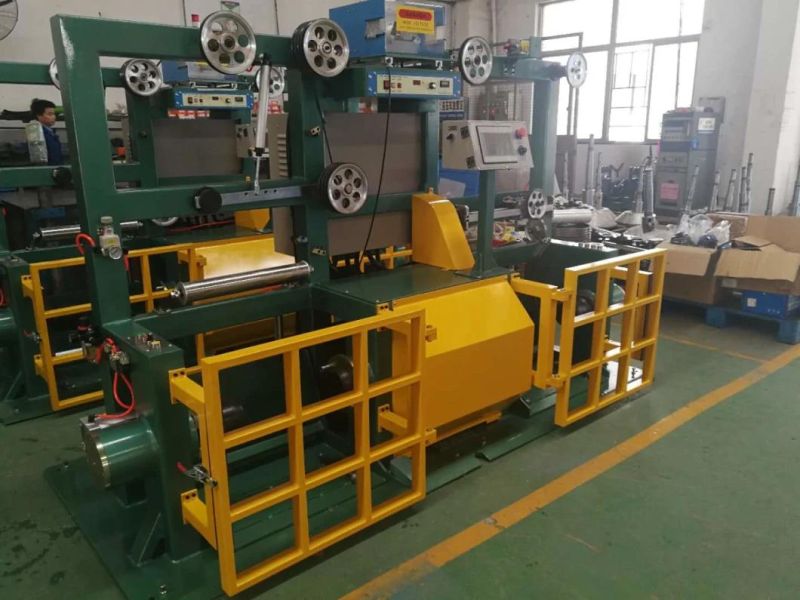

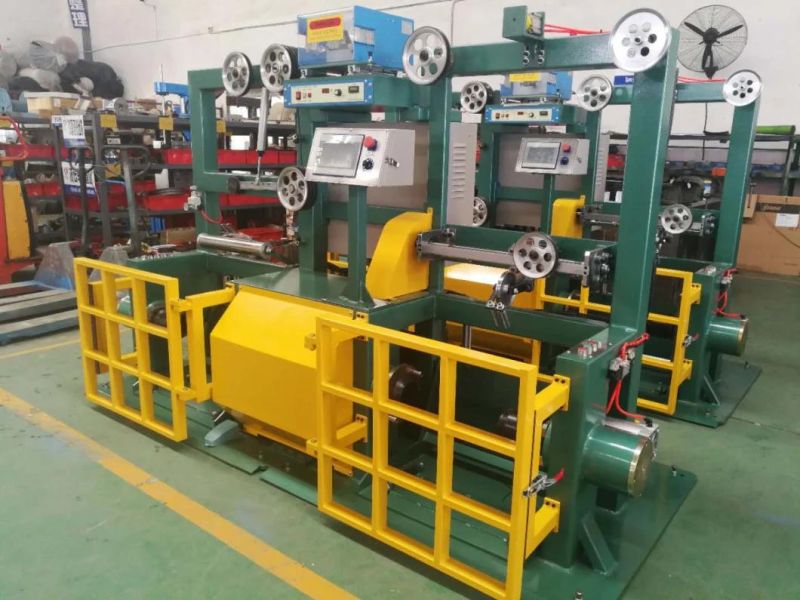

FC-630 rewinding machine
A.Machine parameters
1.Machine fit forφ0.4~3.5mm soft copper wire(twisted wire),electrical wire re-spool. It is one whole machine(pay off and take up),take little space,save area.
2.Touch screen operation,and PLC control pay off and take up with stable speed.
3.Linear speed: 50-250m/min
4.Operate direction:right hand machine(face the machine,left pay off and right take up)
5.Machine color:RAL5015 sky blue
6. Max specification:630mm bobbin 6sqmm wire.
7. With spark tester
B.Detail setting of machine
1.FC-630 active pay off
  (1)Pay off bobbin:φ630-500mmbobbin(customer provide)
  (2)Tension control:swing type tension wire accumulator rack guidewheel(fixed four sets,movable three sets)upper and down(by displacement sensor)feedback signal to converter to control motor rotating speed,linkage with take up,keep the pay off tension stable and even;In swing fixed cylinder and counterweight parts,can adjust the pressure of the valve to change the pay off tension.
(3)Bobbin locking:shaftless type,pneumatic locking(can choose by customer,and with anti-loose mechanism.
(4)Lifting type:manual hydraulic lifting
(5)Motive:2.2kW-6Pfrequency brake motor(SFC)
(6)Converter:2.2KW Innovance converter
2.FC-630take up machine
  (1)Take up bobbin size:φ630-500mmbobbin
  (2)Traverse type:GP20 rod traverse,winding pitch and displacement is adjustable.
(3)Bobbin locking:shaftless type,or pneumatic locking,and with anti-loose device.
(4)Lifting type:manual hydraulic lifting.
(5)Motive:2.2KW-6Pfrequency brake motor(SFC)
(6)Converter:2.2KW Innovance
(7)Simple electric meter counter device
