• Model NO.：FC-500C-5
• Type：High-speed Stranding Machine
• Model：FC-300e,400e,500e
• Core Wire Dia：0.5mm-2.0mm
• Core Wire Stranding Outer Dia：1.0-4.0mm
• Outer Pay off Type：Active Pay off
• Inner Pay off Type：Magnetic Tension Pay off
• Pay off Motor Power：1.5kw
• Tension Control Method：Touch Screen+PLC+Magnetic Powder Clutch
• Inner Magnetic Powder Clutch：1.2kgf
• Precision：High Precision
• Customized：Customized
• Transport Package：Simply Packed
• Specification：ISO9001
• Trademark：FC
• Origin：Suzhou City. China
• HS Code：8479811000
• Production Capacity：20PCS,Set

Basic Info.

Model NO. FC-500C-5 Type High-speed Stranding Machine Model FC-300e/400e/500e Core Wire Dia 0.5mm-2.0mm Core Wire Stranding Outer Dia 1.0-4.0mm Outer Pay off Type Active Pay off Inner Pay off Type Magnetic Tension Pay off Pay off Motor Power 1.5kw Tension Control Method Touch Screen+PLC+Magnetic Powder Clutch Inner Magnetic Powder Clutch 1.2kgf Precision High Precision Customized Customized Transport Package Simply Packed Specification ISO9001 Trademark FC Origin Suzhou City. China HS Code 8479811000 Production Capacity 20PCS/Set

Product Description

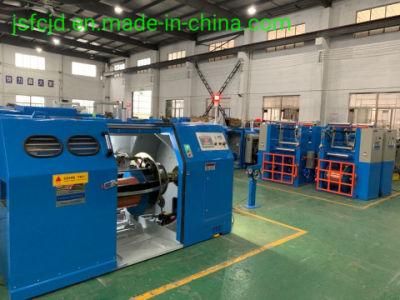

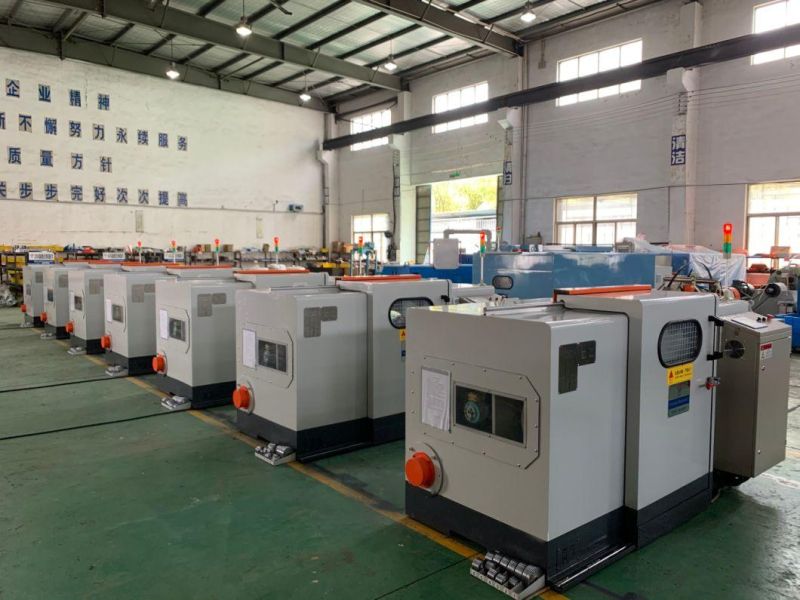

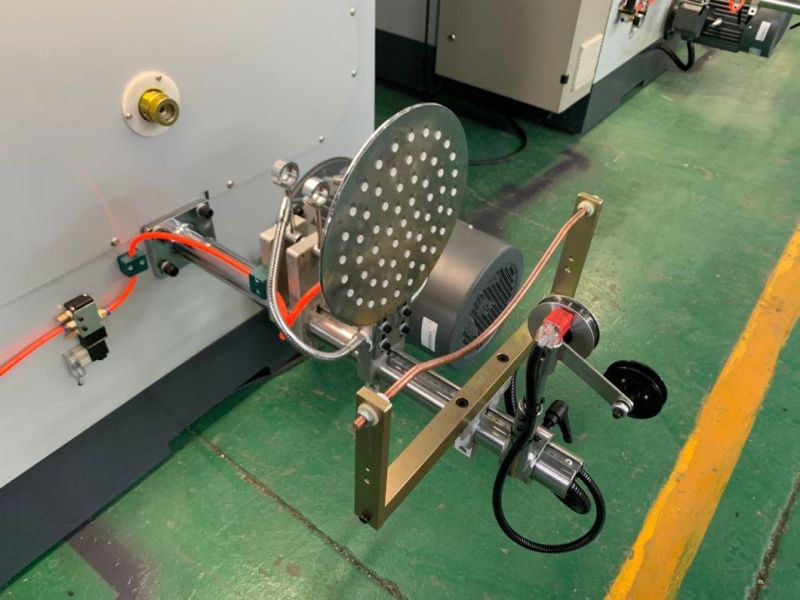

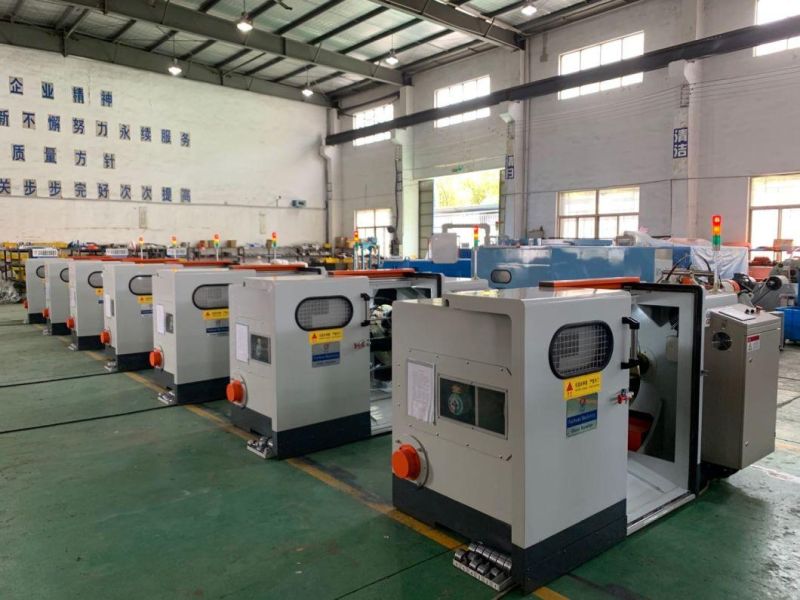

 Main performance parameters of FC-500C automatic high speed bunching machine (replace of the capstan wheel to change the lay length).

1. Usage:It is applied to the stranding of bare copper wire, tinned wire, copper covered aluminum wire, lacquer wire and alloy wire and so on. 1+6 may twist instead of bunching.

2.Diameter of single copper wire: φ0.08~φ0.45mm
3.Outer diameter of wire: φ0.36~φ1.56mm;
4.Cross section area: φ0.05~φ1.5mm²
5.Size of take up spool: φ500mm×420mm×φ56mm(according to client's drawings to make).
6. Maximum rotating speed:3000rpm(6000twist)
7.Type of traverse: φ20mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 24 section 4.0~34.5mm (enclose list of standard lay length).
9. Main motor: 5.5KW AC motor +frequency converter
10. Weight of copper load: about 300kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Whole machine drive bearing:main shaft is from Sweden SKF bearing,other is adopted imported Japan NSK bearing.
15. Synchronization strap: with imported from American.
16. Spool from top to bottom: it is adopted manual hydraulic pump lifting.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: lower than 82dB
