Full Automatic Wire Stripping Cutting and Terminal Crimping Machine
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：RoHS, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Features：Regular Wire
Base Info
- Model NO.：WL-D01
- Available Wire Size：AWG18-28#
- Cutting Length：35-999mm
- Length Tolerance：+,-0.2%*L
- Stripping Length：0-10mm
- Twisting Length：2-20mm
- Production Rate：About 4200 PCS,H
- Detection Device：Wire,Terminal Lack; Crimp,Pressure Detection
- Air Connection：0.4-0.6MPa
- Power Supply：110,220VAC,50,60Hz
- Power：1800W
- Weight：About 240kg
- Dimensions：120*60*200cm
- Transport Package：Wooden Carton
- Specification：120*60*200cm
- Trademark：crown
- Origin：China
- HS Code：8479819000
- Production Capacity：1000set,Month
Description
120*60*200cm
Features:
2. The four-wheel feeding mechanism ensures the accuracy and stability of the feeding
3.High quality and high-precision components to ensure the final products reliable quality
4.Visualization touch screen reducing the operation difficulty
5.Can store the processing parameters of different wires

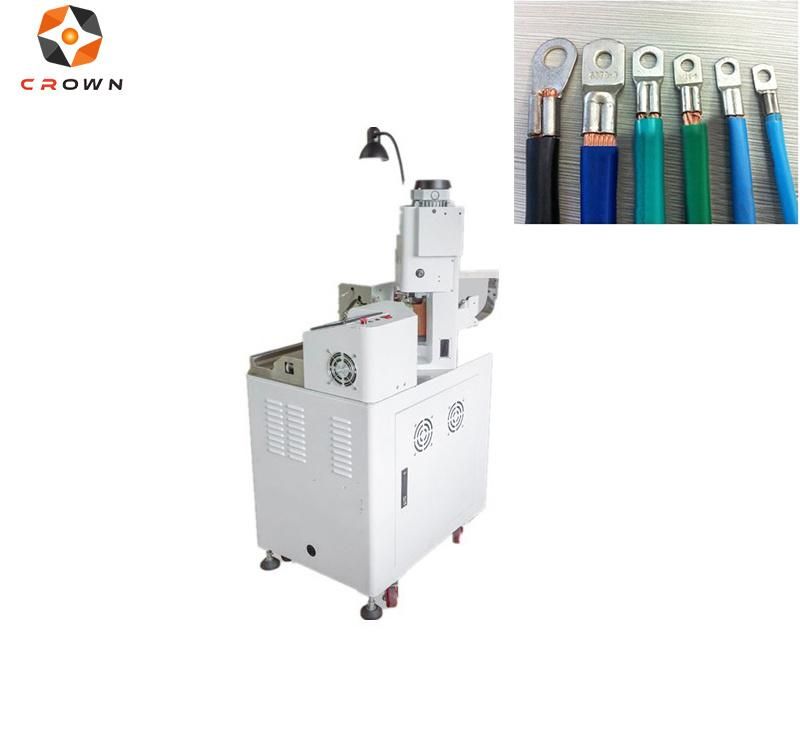

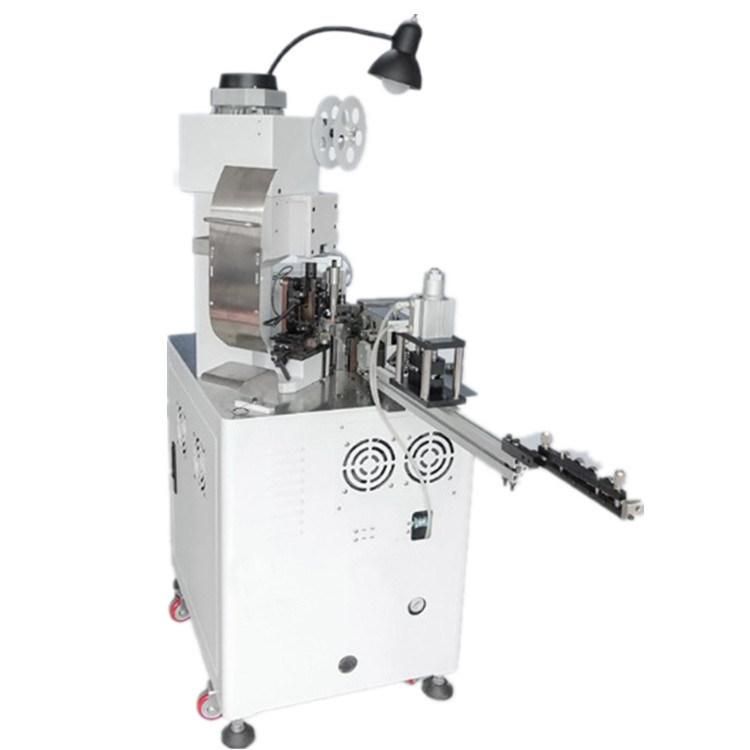

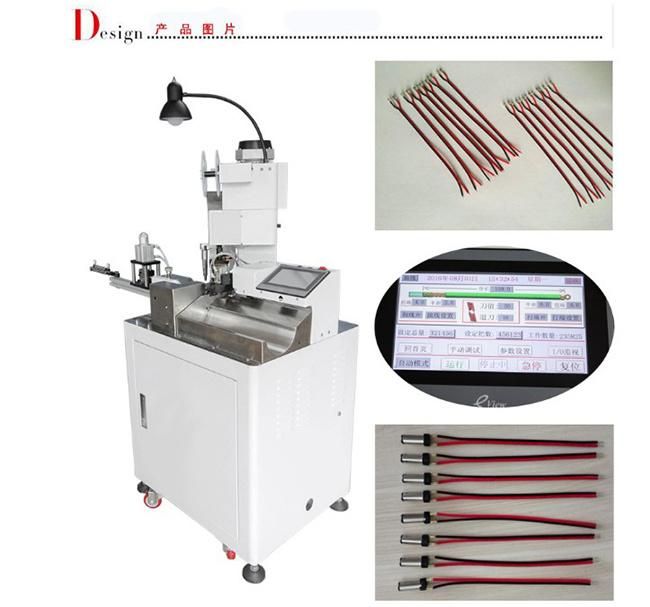

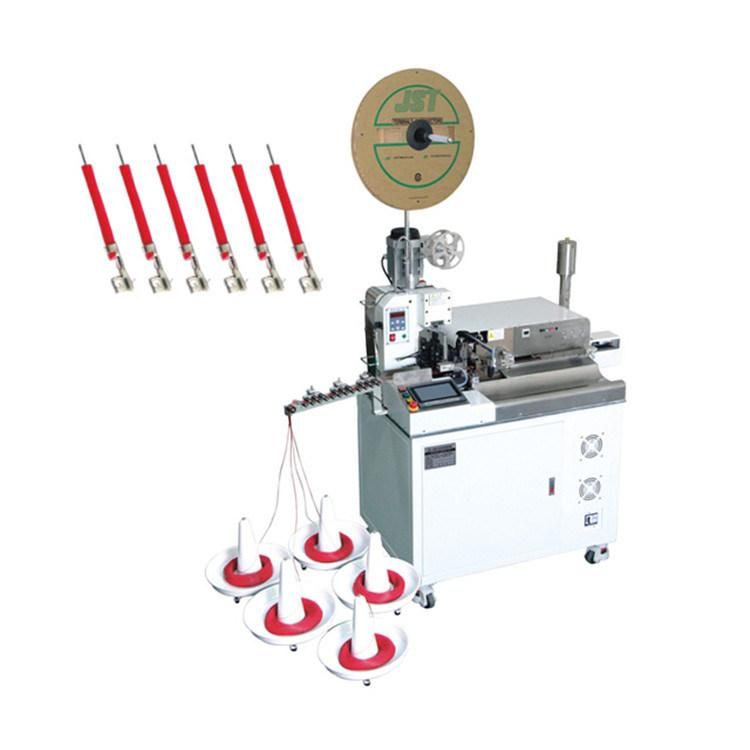

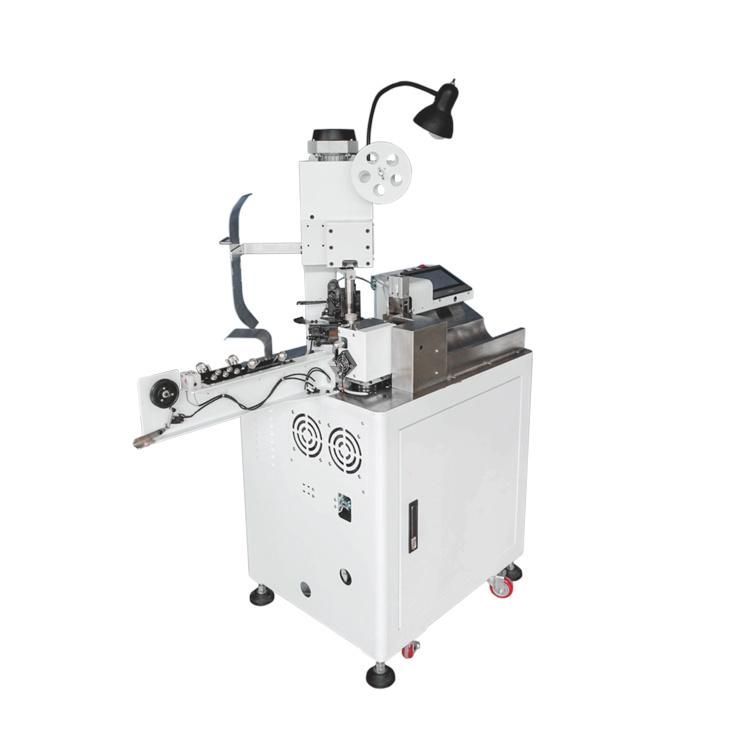

Product show:

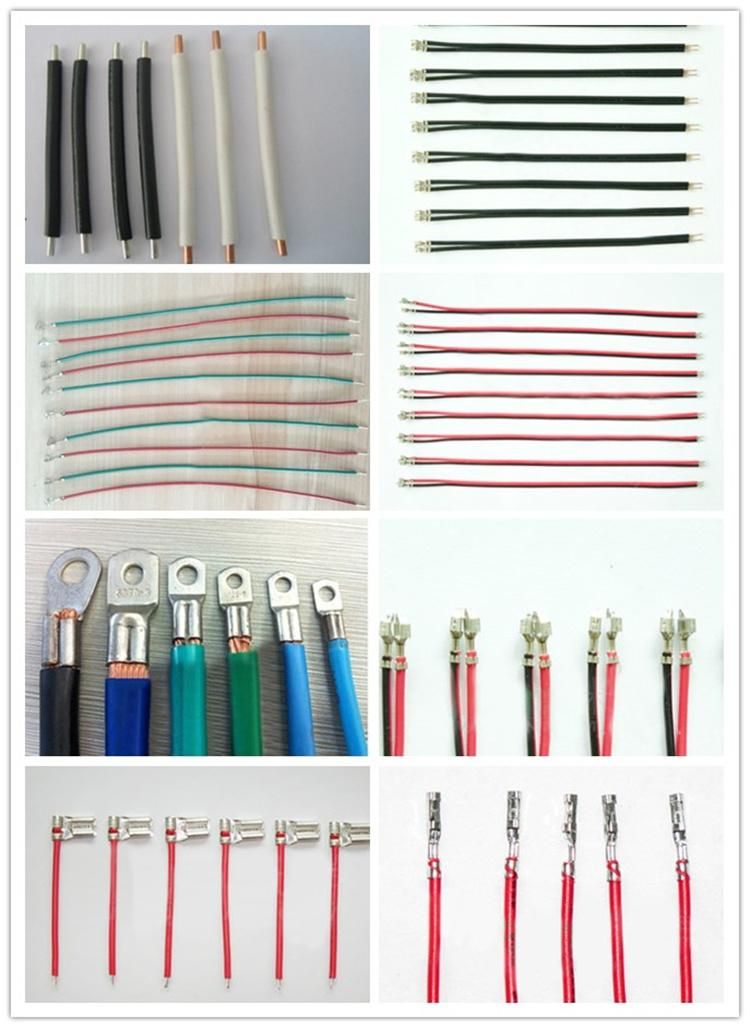

Machine processing wire/terminal samples:

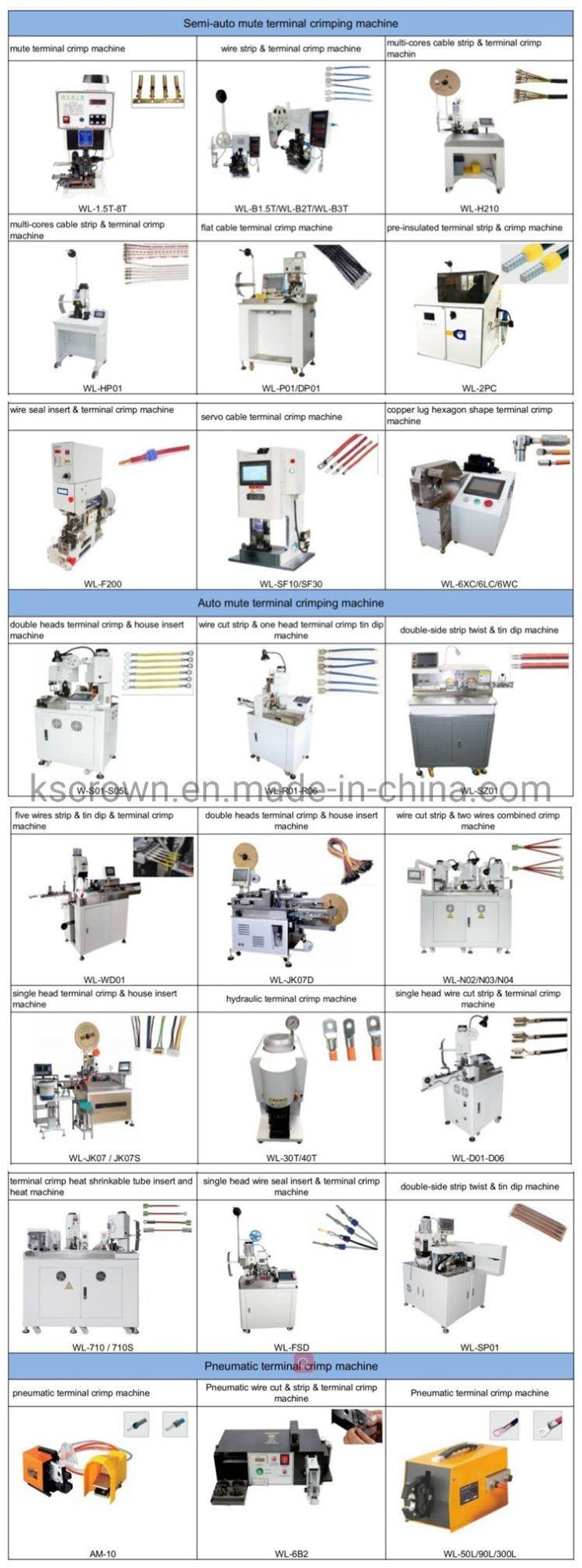

Related products:
Company information:
Certificate:
Contact:
Pls, contact Suzhou Crown Bell for price inquiry or any other questions/doubts.
Features:
This is a fully automatic single-press termination machine, one side stripping and twisting, another side stripping and crimping.
1.Support many types of wires2. The four-wheel feeding mechanism ensures the accuracy and stability of the feeding
3.High quality and high-precision components to ensure the final products reliable quality
4.Visualization touch screen reducing the operation difficulty
5.Can store the processing parameters of different wires
