1246 Automatic Cable Coiling and Binding Machine J Racking with Active Pay off
Alpha Technical Industrial Co., Ltd.- After-sales Service：Available
- Automatic Grade：Automatic
- Driven Type：Electric
- Warranty：24 Months
- Application：Winding Machine
- Machine Model：1250~2500mm
Base Info
- Model NO.：Alpha
- Control：PLC
- Motor：DC Motor
- Cable Diameter：<60mm
- Precision：1-2%
- Take-up Speed：<100 mm,Min
- Applicable Wire Coil Dia.：630-2500mm
- Applicable Outer Dia.：<60mm
- Applicable Wire Coil Width：475-1900mm
- Machine Color：Customized
- Delivery Time：2 Months

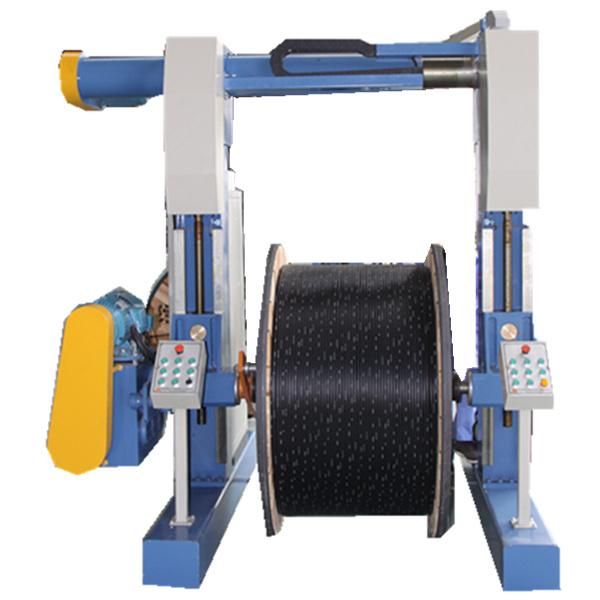

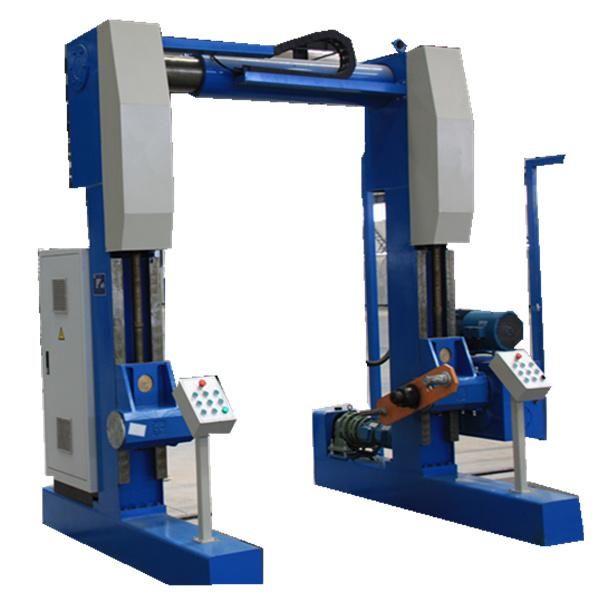

- Product Name：Gantry Take-up and Pay-off Cable Machine
- Structure：Gantry Type
- Parts Brand：Siemens
- Transport Package：Seaworthy Package
- Specification：Diameter 1250~2500
- Trademark：Alpha
- Origin：Wuxi, Jiangsu, China(Mainland)
- HS Code：8477209000
- Production Capacity：500 Sets Per Year
Description
f. Pay-off tension has several control methods for customer choice: mechanical friction, controlled by magnetic powder brake, magnetic powder brake +gearbox, with damping tension, friction plate+air pressure brake disc +precision proportional pressure solenoid.g. Traversing control:1) drive by frequency motor,2) drive by AC servo motor, Traversing control via:1) digital display traversing controller;2) PLC +SIEMENS text Combination control, through input wire diameter and bobbin size, to realize auto follow and Line's synchronization.
h. The machine electric control with external communication interface, can easily and all kinds of production line for spreading. Received with speed line, the line in constant tension; Passive pay-off. Active pay-off The main; Passive pay-off. Take up method: by speed or by constant tension;
i. Pay-off method: driven type, driving type,"driven-driving combination"type.
Package and Delivery
FAQ
− Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.
− Q: What is your company's main production?
A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
