Automatic Wire Cutting and Stripping Machine 2cores 3cores 4cores Sheathed Wire Stripper Machine
Suzhou Crown Electronic Technology Co., Ltd.- Condition：New
- Certification：ISO, CE
Base Info
- Model NO.：WL-905
- Warranty：12 Months
- Automatic Grade：Automatic
- Model：Wl-905
- Function：Cutting and Stripping
- Wire Type：Sheathed Cables, PVC Cables, etc.
- Stripping Range：1-6mm
- Inner Core Numbers：2 Cores, 3 Cores, 4 Cores and 5 Cores
- Cutting Length：0.1mm-99999.9mm
- Stripping Length for Outer Sheath：Wire Head: 0.1-250mm, Wire Tail: 0.1-70mm
- Stripping Length for Core Wires：Wire Head: 0.1-30mm, Wire Tail: 3-30mm
- Intermediate Stripping：Max.16 Sections
- Cutting Tolerance：0.01mm Silent Hybrid Stepping Motor
- Program Storage：100 Sets of Data
- Power：700W
- Capacity：100,500,1000mm (1300,1100,900 PCS,H)
- Drive Mode：Four-Wheels Stepper Motor Drive
- Transport Package：Wooden Case
- Specification：47*45*35cm
- Trademark：Crown
- Origin：China, Kunshan
- HS Code：8479819000
- Production Capacity：2800PCS,H, Sheath Wire 800PCS(Based on Wire Size)
- Package size per unit product：47.00cm * 45.00cm * 35.00cm
- Gross weight per unit product：40.000kg
Description
Features:
Compact body, precise wire stripping, time saving and high efficiency, large LCD screen, powerful chip, low noise.
Driven by catheter motor, full power, stable performance.
Tungsten steel and high speed steel blades are sharp, durable and wear-resistant. The cut is flat.
100 sets of stored data, parameters can be debugged manually.
Equipped with straightening machine to ensure the stability of the wire. Improve efficiency and product quality.
The four-wheel stepper motor drives a stable wire feeding, the pressure is adjustable, and the wire is not damaged.
Fully automatic computerised program design, one-click modification error, simple and clear operation.
Suitable for electronic wires, sheathed wires, multi-core wires, flat cables, double parallel wires, optical fiber wires, glass fiber wires, new energy wires, etc.

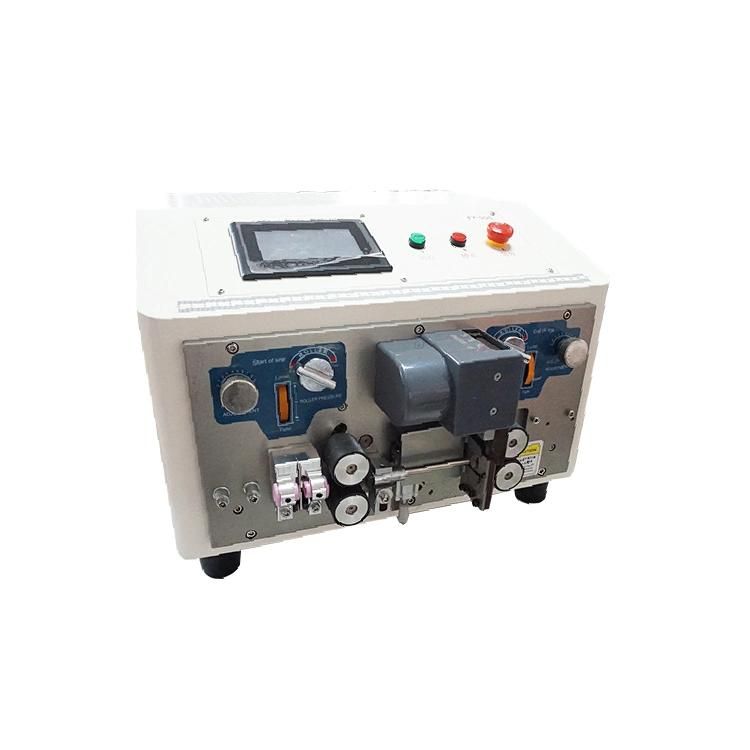

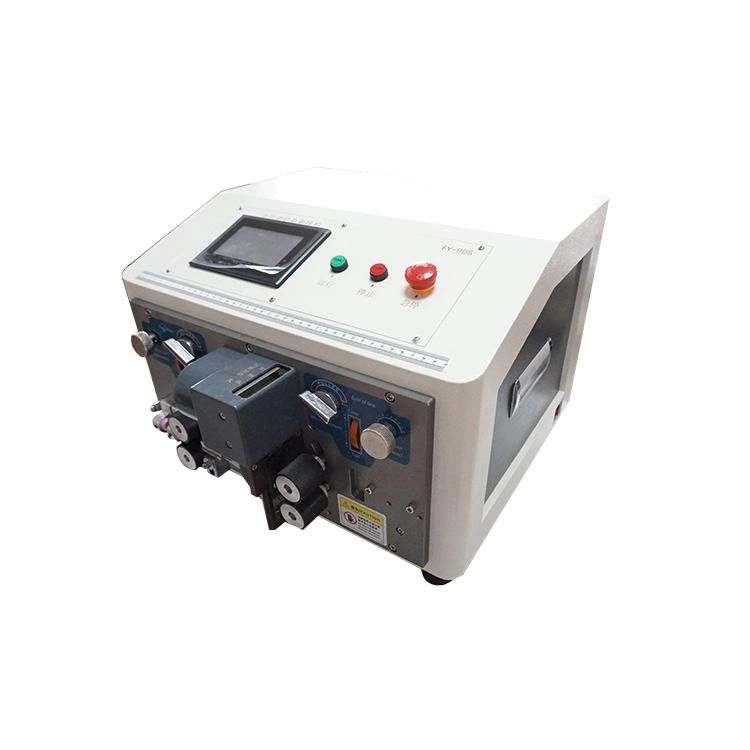

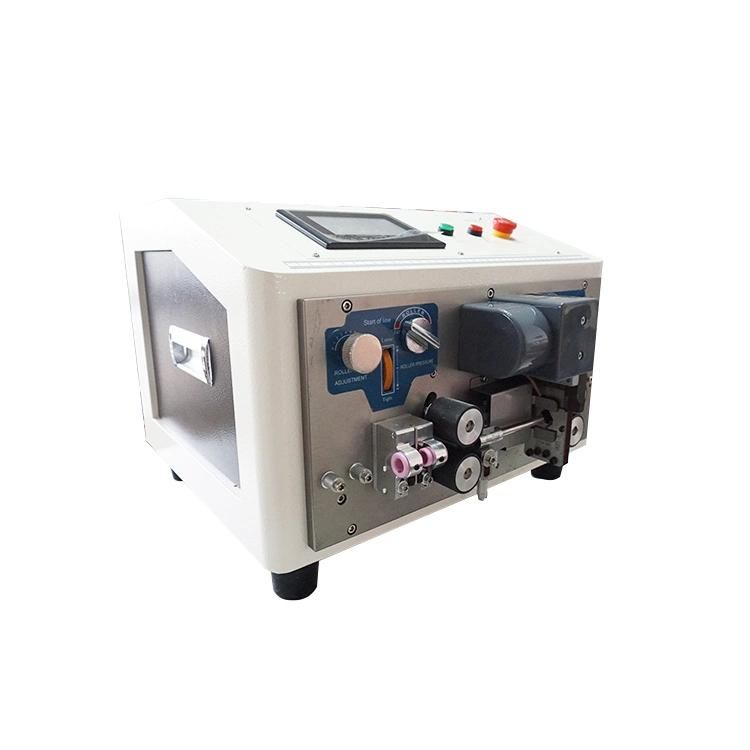

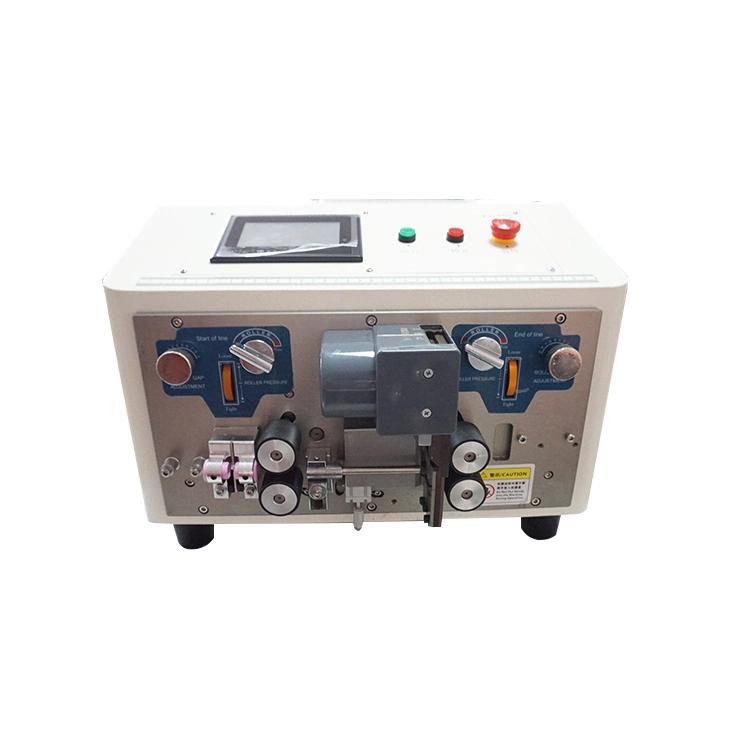

Product show:

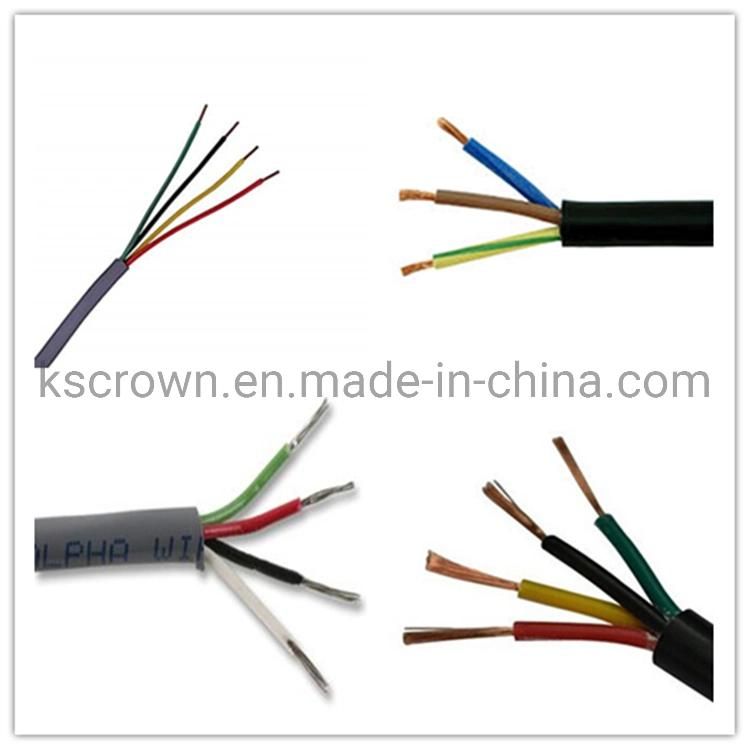

Machine processing wire samples:
Related products:
Packing & Shipping & Payment:
For small and light products packed by cartons,for large and heavy products packed by wooden
FAQ:
or through alibaba online transcation after confirmation.
we will package it in standard wooden cases.
Our service
We provide:
· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
