• Model NO.：XJ-500
• Taping Material：Aluminum Foil, Mylar, Mica, etc
• Precision：High Precision
• Certification：CE, CCC
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Mould Life：>1, 000, 000 Shots
• Customized：Customized
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：China
• HS Code：8479400000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. XJ-500 Taping Material Aluminum Foil, Mylar, Mica, etc Precision High Precision Certification CE, CCC Demoulding Automatic Heating System Electric Function High Temperature Resistance Mould Life >1, 000, 000 Shots Customized Customized Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 10 Sets/Month

Product Description

Automatic Horizontal Mylar/Mica Tapes Taping Machine for Cables
1.Application:
Suitable for twisted wire & parallel wire single-layer or double-layer concentric taping or wrapping.
2.Machine Features:
1) High productivity: high rotate speed, the production efficiency is 2.5 times than traditional type.
2) Tension steady: utomatic calculation tracking and keep constant from start to end, no need any artificial adjustment.                 3) Pithch accurate: Overlap set on touch screen which controlled by PLC to keep the pitch more accurate.
4) Good traversing efficiency: traversing by moving shaft, traversing space and pitch can be adjusted according to customer's requirement.
5) Superior quality: the passing rate is 100% in manufacturing process for high-frequency wire, such as HDMI, DP, ATA, SATA, SAS etc.
3. Technical Parameters:

Model	XJ-500
Inlet wire specification	AWG32 - AWG20
Taping materical	aluminum foil tape, cotton paper, transparent tape, mica tape, teflon tape etc.
Rotate speed	Max. 2000rpm / Max. 20m/min
Main power	Adjust the speed by 1HP motor driver, taping drum linkage with capstan motor
Taping tension	Taping tension automatic calculation tracking and keep constant from start to end,  no need any artificial adjustment.
Melting oven	Automatic flexible melting oven, OMRON temperature control, temperature tolerance:±1°C
Take -up tension	Take-up tension keep constant from start to end, no need any artificial adjustment.
Traversing type	Axis-row type take-up, no damage during the traversing process, traversing pitch and width can be adjusted.
Machine dimension	4250mm × 1500mm × 1900mm
Machine weight	2.5 T

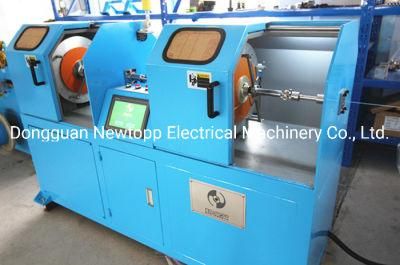

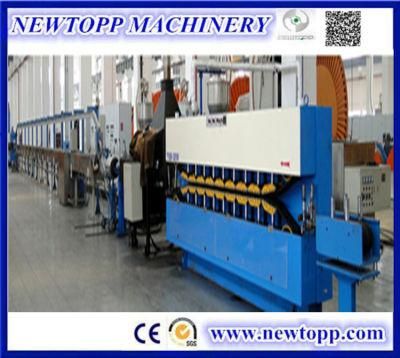

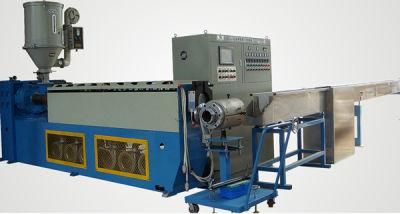

4.Machine picture:

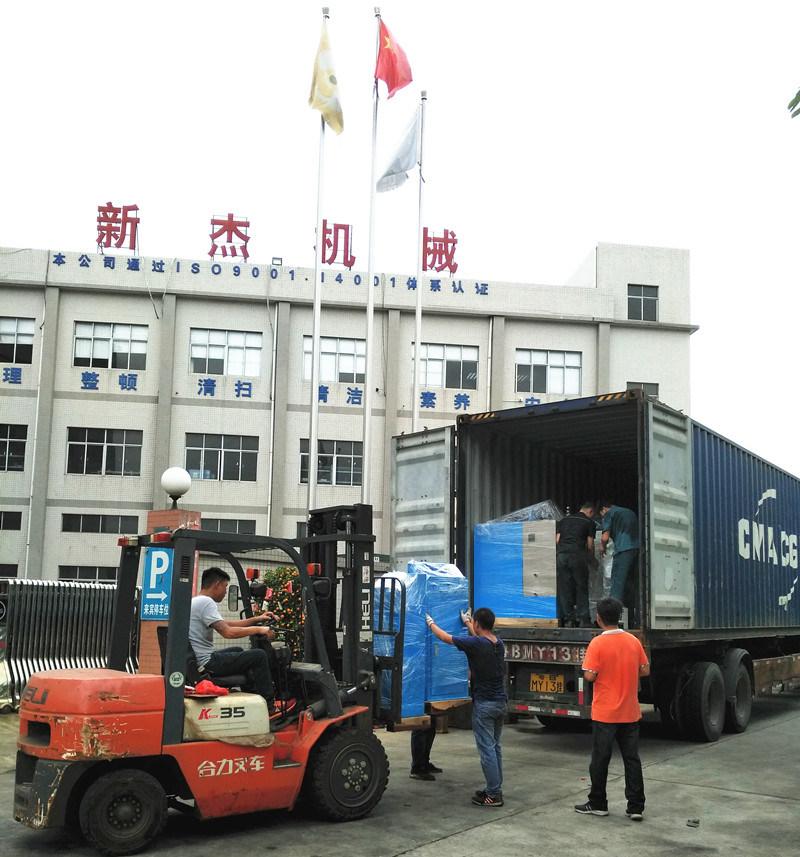

5.Packaging & Shipping:

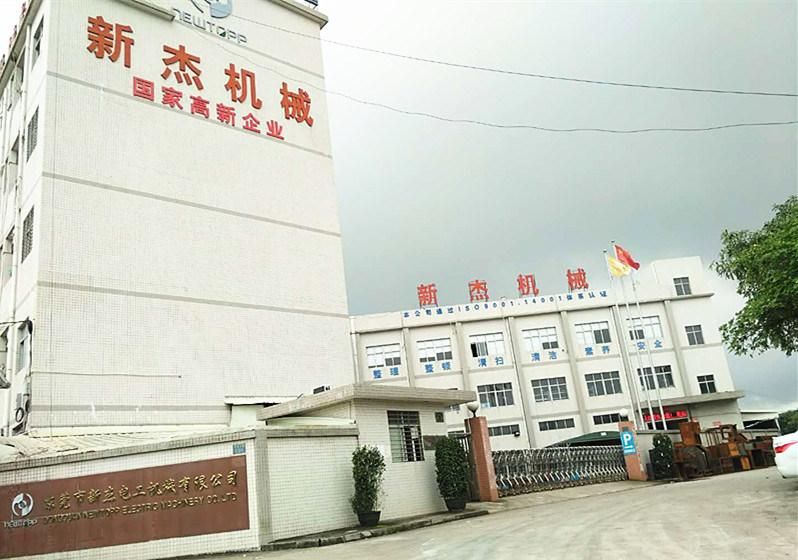

6. About Us:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited, and we have passed ISO9001 since 2010.

7. Our Team and Exhibitions:

8. FAQ
1) Are you a manufacturer or trading company?
   We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and there are total over 6000 spuare meters of production workshop in our factory.
2) What is the advantages of your machine compared with competitors?
    Our automatic control technology is in leading position in wire and cable equipment field.
    Good cost performance, quality is steady.
    We combine the equipment and the wire&cable technology, offer you technology assistance.
3) How can we get to your factory to see the machines works?
   Address: No.286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China.
   Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
   Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
   Only 17 minutes take high-speed rail from Guangzhou south station to Humen.
