• Model NO.：LED660
• Automatic Grade：Automatic
• Type：Medium-speed Chip Mounter
• Weight：500kg
• Component Available：0603 and Above SMD Component and LED, Sot, Sop
• Typical Mounting Speed：13000-14000cph
• Mount Head：6 PCS
• Dimension：2600*680*1500mm
• Max Circuit Board Size：1200*350mm
• Transport Package：Wooden Package, 1 Set ,PC, About 550kgkg
• Specification：CE
• Trademark：Termway
• Origin：Beijing, China
• HS Code：8479896200
• Production Capacity：50set,Year

Basic Info.

Model NO. LED660 Automatic Grade Automatic Type Medium-speed Chip Mounter Weight 500kg Component Available 0603 and Above SMD Component and LED, Sot, Sop Typical Mounting Speed 13000-14000cph Mount Head 6 PCS Dimension 2600*680*1500mm Max Circuit Board Size 1200*350mm Transport Package Wooden Package, 1 Set /PC, About 550kgkg Specification CE Trademark Termway Origin Beijing, China HS Code 8479896200 Production Capacity 50set/Year

Product Description

TORCH 14000 Offline Type LED Pick and Place Machine LED660V

Feature:
1 Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed.

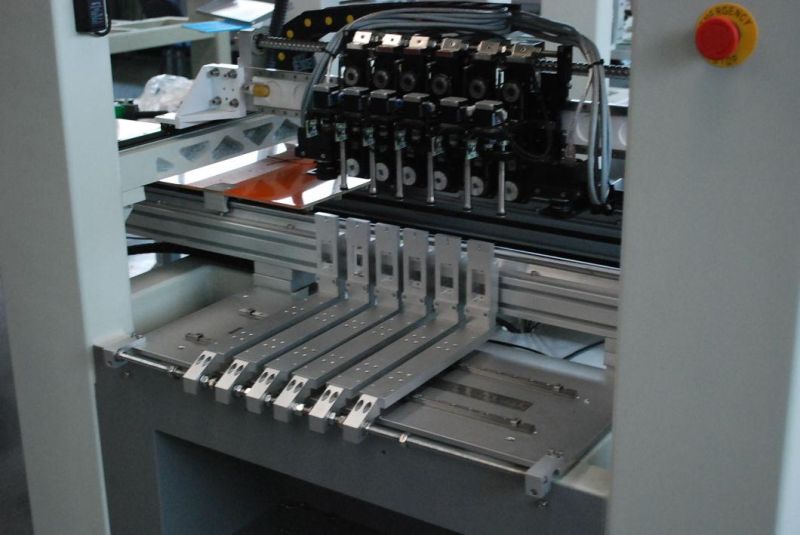

2 6 Mounting head driving system uses servo motor, together with high precision ball screw to achieve the completion of the LED component picking and placing.
3 6 groups of mount head improves production efficiency of 400% than 1 group.
4 Visual programming automatically, without input component coordinates by hand. Programming is simple, fast, whole program need only 10 minis, easy for beginners to learn.

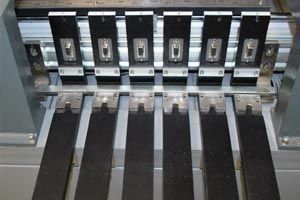

5 Different sizes of smart feeder, which will not go forward if the component is stuck or isn't picked up, can meet different requirements of LED mount.
6 Cost-effective LED chip machine is most suitable for high-volume LED production.
7 The whole machine is controlled by industrial computer with professional software, easy to operate and use.
8 Easy to import CAD data of the circuit board.
9 Stable and easy to complete the programming and placement of LED panel board
10 Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.
11 The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.
12 If the board have manufacturing quality problems, LED660 can shift the component place for accurate mounting.
13 Software can realize to achieve automatically four mounting heads function.
14 Software increases the XYZ axis detection limit when moves
15 software increases 6 grades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability for long time usage.
16 PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC) position and mount.
17 There is vacuum pump in the machine that no need to configure it separately and save the power, lower the noisy.
18 LED660 is special LED mounter, can mount all kinds of SMD LED chip, all 0402 above component (except more than 5mm Aluminum electrolytic capacitors ), at the same time can mount cylindrical diodes, transistors, SOP SOT and less than 20mm IC.
19 Can meet at any angle component placement. For example, can mount the LED lamp cup.
20 Powerful security systems, the software can automatically tip on maintenance.Standard configuration:
1. Industrial Computer 1 suit
2. Mounting head 6 groups
3. Nozzle 6 PCS
4. Vacuum absorb platform 1 set
5. Feeder platform GFTA-T06 1 set
Optional part:
1. Automatic feeder 8mm, 12mm, 16mm and 24mm
2. Nozzle
3. Industrial air pump
4. UPS
5. Feeder platform GFTA-T06

Model	LED660
Mount head	6 pcs
Max circuit board size	1200*350mm
Max moving range	X axis 1500mm, Y axis410mm
Max moving range of Z axis	15mm
Typical Mounting speed	13000-14000cph
Max mount speed	18000cph
Mount accuracy	+/-0.1mm
Position method	Machinery position
Component available	0603 and above SMD component and LED, SOT, SOP
Programme method	Automatic data import/ video study/ keyboard input
Belt feeder	8mm, 12mm, 16mm and 24mm
Feeder num	6 pcs of GF series feeder can be set (12 pcs feeders are optional)
Operation system	WINDOWS XP
Compressed air	internal vacuum, (large production  should use industrial air pump)
Power supply	220V, 50Hz, 4.5 Kw
Weight	500Kg
Dimension	2600× 680× 1500mm

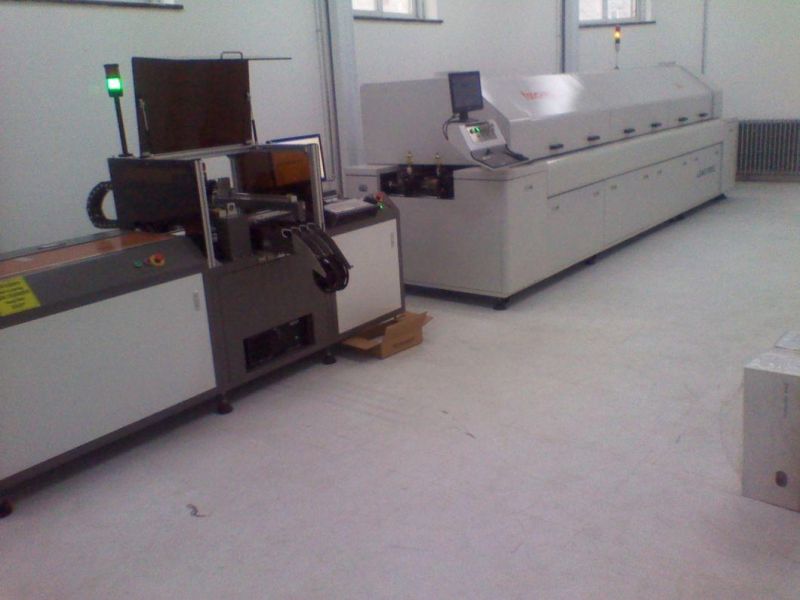

Our factory
