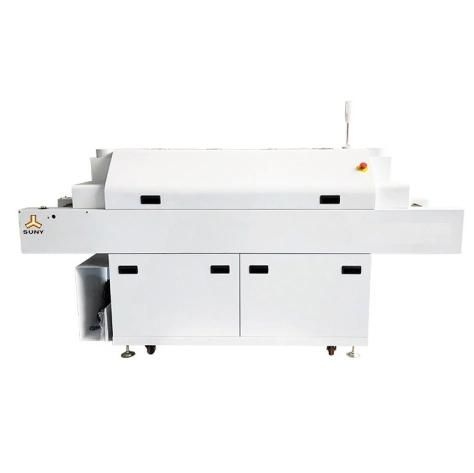

Item: SUNY-HL0430 Desktop 4 Heating Zones Reflow Oven
Model: SUNY-HL0430

 Product Features:
Unique, advanced and long-life heating system:
1. High efficiency and energy-save Swedish 110V nickel chromium heating pipe is used in heating system (replacement within three year), radiation power peak wavelength 4UM, equipped with surface reflector, high thermal efficiency, rapid heating speed, specially-made strong hot air cycle structure system, making PCB and components heating equally, completely eliminate the shadow effect.
2. Adopt imported high-current solid-state relay non-contact output, safe and reliable, combined with the temperature controller which has unique fuzzy control function, always monitoring the outside temperature and heat value changes, control heating components with minimize pulse , fast response to ensure temperature control accuracy ±1ºC, the error of inside temperature distribution ±2ºC. Temperature distribution in the length direction conform to IPC standards.
3. The intelligent micro-computer precision controller, through intelligent operation of PID, control heating automatically, increasing blurry controlling function, overshoot and suppress function can respond to outside thermal changing with furthest speed ,plus the inside controller could make temperature more stable.
4. Heating pipe modularization design, easy to repair and assembly.
5. Imported Italian high temperature and high speed motor, stable operation,small vibration, small noise.
6. Upper oven body can open wholly to make the inside clean.
7. With temperature tolerance, fault diagnosis, sound and light alarm, power abundant, rapid heating, from room temperature to constant temperature about 15 minutes.
8. Dedicated SSR radiator, radiating efficiency is significantly improved, effectively extend its service life.
9. All adopt imported components to ensure the entire system high reliability.
Reliable and smooth transmission system
1. Transmission system adopts Taiwan STK stepless speed motor, adjustable belt speed stepless speed governor, smoothly operating matched up with 1: 150 STK turbine reducer, speed 200-2000mm / min, stepless adjustable, and also accurate digital Line speed indication.
2. Adopt independent roller structure and support, combined with supporting stainless steel mesh belt, running smoothly, precise speed up to ±20mm/min;
3. Special stainless steel "Z" type mesh belt, durable and wearable, lasting non-deformation.
Stable and reliable electrical control system
1. Delay switch protection function, evenly cooling after the shutdown, to prevent transmission parts deformation caused by uneven cooling.
2. Power off protection function, ensuring the PCB board's normal output without power damage.

Product Details:

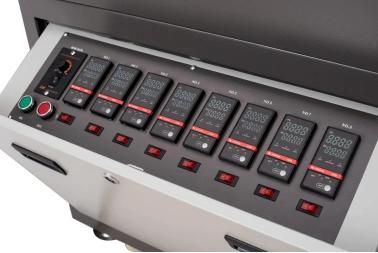

1. 8pcs of controlling meters

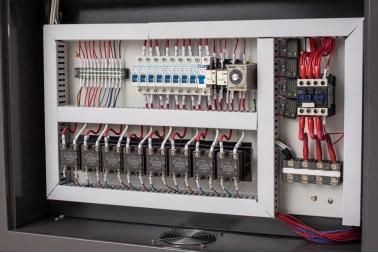

2. Wiring

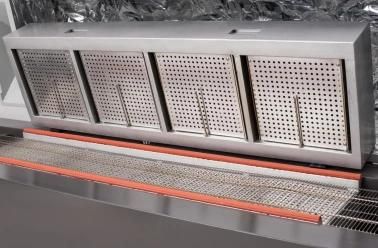

3. Structure

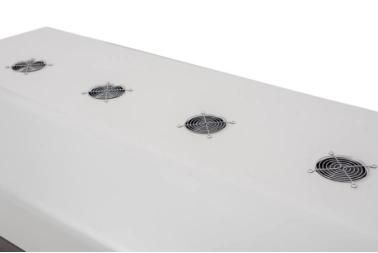

4. Radiating ports

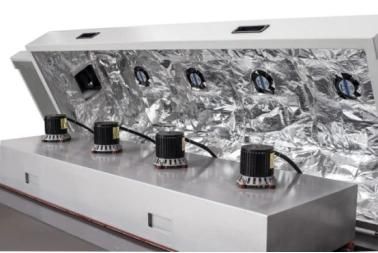

5. Italian high-temperature high-speed motor


Products Specifications:

Heating Zone	Upper 4 / Down 4 zones
Heating Zone Length	1400mm
Heating Method	Full hot air
Cooling Zone	1 Zone
Cooling Method	Forced Air Cooling
Max. PCB Width	300mm
Transmission Belt Height	880 ± 20mm
Transmission Speed	0--2000mm/min
Transmission Type	Mesh Transmission
Transport Direction	Left→right (right→left optional)
Power	3-phase 380V (220V optional) 50/60Hz
Starting Power	16KW
Working Power	Appro 3KW
Warm-up Time	about 15 minutes
Temperature Range	Room temperature to 400ºC
Temperature Control Accuracy	±1ºC
Temperature Distribution Deviation	±2ºC
Temperature Control Type	PID closed-loop control, SSR driver
Abnormal Alarm	Temperature abnormal (ultra-high or ultra-low temperature)
Dimensions	2500*612*1220mm
Weight	300kg
