• Model NO.：XJ-2700
• Specification：XJ 2700
• Trademark：Newtopp
• Origin：China
• HS Code：8477209000
• Production Capacity：200sets,Year

Basic Info.

Model NO. XJ-2700 Specification XJ 2700 Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 200sets/Year

Product Description

Application field:

Suitable for aviation&aerospace cable,high-demand automative cable and cable which external signal base station etc;with excellent chemical stability,outstanding surface non-sticky,good lubrication and resistance to atmospheric agine;and can be work at 250ºC high temperature and -60ºC low temperature for long time as well;





Model: 1200mm vertical cold extruding line,2700mm horizontal cold extruding line

Equipment composition:

Mixer,Premolding machine,Cold extruding machine,Traction machine(volatile box),Sintering furnace,Take-up and traversing machine and outer diameter tester,main control cabinet and operating table,etc.




Machine technical feature


Model	1200mm PTFE  Cold Extrusion Line	2700mm PTFE  Cold Extrusion Line
Structure type	Vertical	Horizontal
Cold-extruded motor	4.5kw servo motor+5kw AC motor	50 Double hydraulic cylinder
Cold-extruded force(Max):	35T	100T
Capstan power	400W	2000QW
Pay-off power	750W	5500W
Take-up power	750W	2200W
Volatile-tank power	8KW	15KW
Sintering furnace power	45KW	45KW
Temperture range	0-500ºCTemperature control accuracy ±1ºC	0-500ºCTemperature control accuracy ±1ºC
Design line speed	0-50(40)m/min	0-80(40)m/min
Plane size of machines	9280mm*2500mm(subject to the actual product)	19000mm*2500mm(subject to the actual product)
Machines height	13500mm	13500mm

Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens



Our Service
 Pre-Sales Service                          After-Sales Service
* Inquiry and consulting support.     * Training how to install and how to use the machine
* Customized design support.          * Engineers available to service machinery overseas.
* View our Factory.


About us
Company introduction


Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.

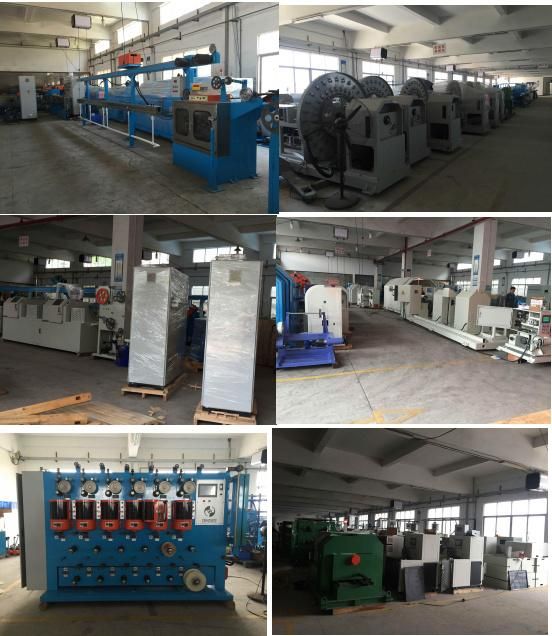

Our products

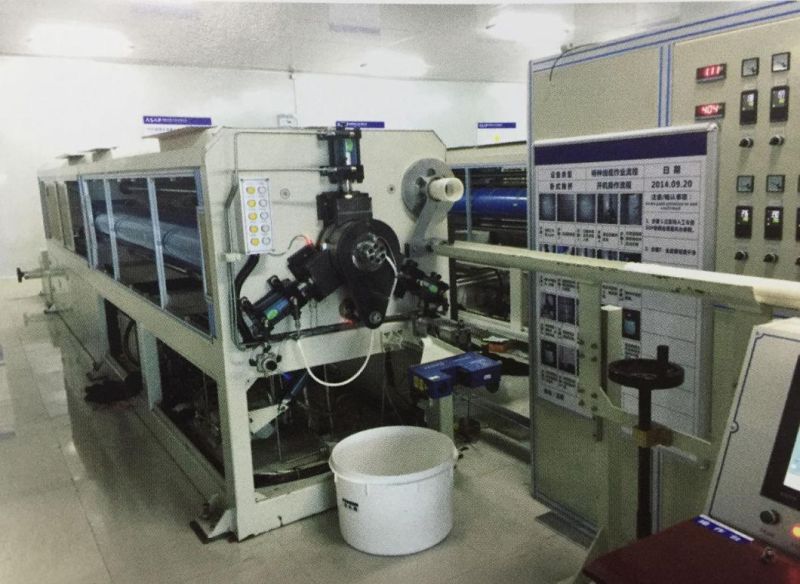

Products in client site






Certification and Patent






Contact us

Contact person: Owen Zeng
Mob:+86-17390410655



DongGuan Newtopp Electrical Machinery Co.,Ltd.
http://dgnewtopp.en.made-in-china.com
Tel.:+86-769-85372062   Fax:+86-769-85340833
Add.:No.286, Huaide Road, Humen Town,Dongguan City, Guangdong Province.
