• Model NO.：TP210+
• Certification：CCC, UL, RoHS
• Warranty：24 Months
• Automatic Grade：Automatic
• Type：Medium-speed Chip Mounter
• Max Size of The PCB：300X200mm
• Speed of Mounting：2400-3500cph
• Component：0603, 0805, 1206 etc and Sop, Soic
• Short with Feeder：8mm, 12mm, 16mm, 24mm Feeder
• Weight：95kg
• Size：810*750*850mm
• Transport Package：Wooden Package, 1 Set,Package, About 200kg
• Trademark：Termway
• Origin：China
• Production Capacity：50,Month
• Package size per unit product：220.00cm * 350.00cm * 190.00cm
• Gross weight per unit product：285.000kg

Basic Info.

Model NO. TP210+ Certification CCC, UL, RoHS Warranty 24 Months Automatic Grade Automatic Type Medium-speed Chip Mounter Max Size of The PCB 300X200mm Speed of Mounting 2400-3500cph Component 0603, 0805, 1206 etc and Sop, Soic Short with Feeder 8mm, 12mm, 16mm, 24mm Feeder Weight 95kg Size 810*750*850mm Transport Package Wooden Package, 1 Set/Package, About 200kg Trademark Termway Origin China Production Capacity 50/Month

Packaging & Delivery

Package size per unit product 220.00cm * 350.00cm * 190.00cm Gross weight per unit product 285.000kg

Product Description

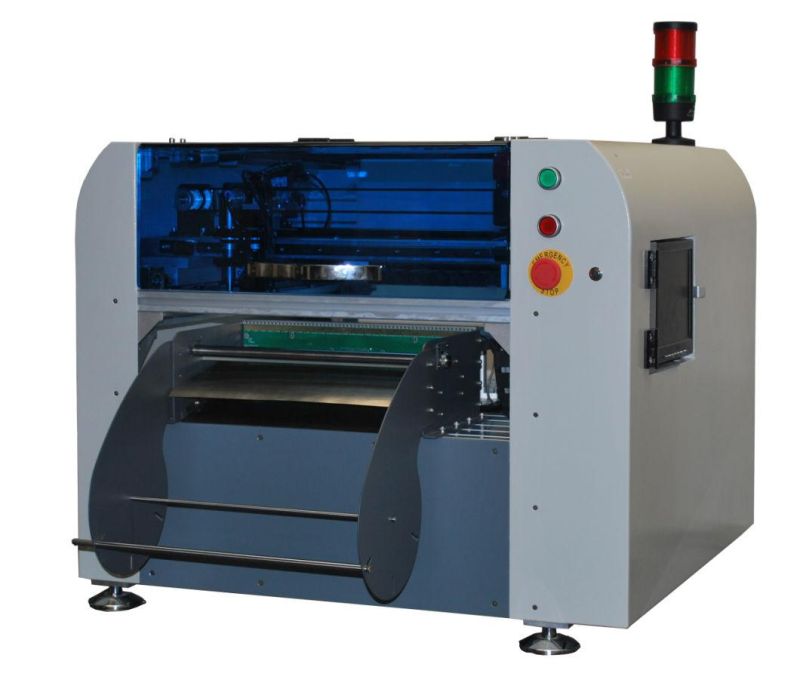

Desktop Vison SMT Automatic Pick & Place Machine TP210+ / most cost effective automatic pick n place machine

The selling point:

1component avalaible for below 20mm SOP, columnar diode, triode, SOT, SOP, IC chips and and 0603 component ( except of 5m Aluminum electrolysis electric capacitor ) ect
2. Intelligent eletric feeder
3programme and mounting technoligy for milti panels
4off-line programme function
5programme control
6visional programme
7powerful data import function, any formats of PCB file can be imported.
A new program can be finished in 10 minutes
8. Stablly pick and place SMD 0402
9. Security cover for protection of operator to dustproof
10. High precision linear guiderail
11configurate 5 kinds of nozzle, software reminds of "nozzle changing"

Standard accessories:
1. Industrial computer ----1 set
2. Mount heat---- 1 set
3. Vacuum nozzle----2 PCS
4. Diaphragm pumps---- 1 PC
Optional accessories:
1. GF electronic smart feeders: 8mm, 12mm, 16mm, 24mm
2. Vacuum nozzle.
3. Air pump
4. UPS



Type	TP210+
Max PCB size	300x200mm
max moving range	380× 350mm
max moving range of Z axes	10mm
Typical  speed	2400-3500cph
repeat accuracy	± 0.15mm
Positioning	Machinery Position
Component Available	0603, 0805, 1206 etc and SOP, SOIC (size under 15*15mm, PIN foot less than 24)
Program way	Software program input/Vision program input
Driving mode	use industrial Synchronous belt to drive
Automatic Feeder	8mm, 12mm, 16mm, feeder can choose
Feeder Num	Can set 50 pcs of 8mm feeder
Operating system	WINDOWS  XP
compressed air	80psi(0.5Mpa)
Power supply	220V, 50Hz, 1KW
Weight	95kg
Dimension	810*750*850mm
