SMT Destop Visual Pick and Place Machine Tp39V (TORCH)

Termway (Beijing) Precision Technology Co., Ltd.
  • Condition：New
  • Speed：Medium Speed
  • Precision：Normal Precision
  • Certification：ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Manual

Base Info

  • Model NO.：TP39V
  • Type：Medium-speed Chip Mounter
  • Max Mount Size：260*280mm
  • Mounting Speed：300-600 Pch
  • Position Way：Visual Position
  • Mounting Head：1head
  • Nozzles：5PCS
  • Package Way：Wooden Case
  • Weight：42 Kg
  • Suction Cup：6 PCS
  • PCB Position Platform：1 Suit
  • Operation Way：Manual
  • Transport Package：Plywood Case
  • Specification：Middle Speed Machine
  • Trademark：TORCH
  • Origin：Beijing, China
  • HS Code：8479896200
  • Production Capacity：100 Sets,Month

Description

Basic Info.

Model NO. TP39V Type Medium-speed Chip Mounter Max Mount Size 260*280mm Mounting Speed 300-600 Pch Position Way Visual Position Mounting Head 1head Nozzles 5PCS Package Way Wooden Case Weight 42 Kg Suction Cup 6 PCS PCB Position Platform 1 Suit Operation Way Manual Transport Package Plywood Case Specification Middle Speed Machine Trademark TORCH Origin Beijing, China HS Code 8479896200 Production Capacity 100 Sets/Month

Product Description

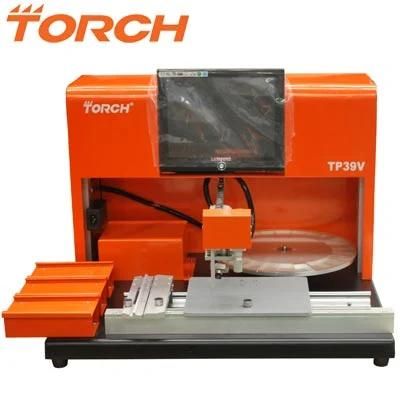

 Manual Visual Desktop Pick and Place Machine
                                                                   TP39V
Video Link:  https://yadi.sk/i/wM1foMUZc6uvm

SMT Destop Visual Pick and Place Machine Tp39V (TORCH)



Features:

 1)  Desktop Visual Pick and Place Machine TP39V   has free machinery movement function.  Has high precision guiderail at X, Y axis, mounter head can move at X axis (levelly) of      540mm, Y axis of 375mm

2).  Visional system, component foot and PCB pad can image on 12'' LCD, you can get an accurate mounting for QFP, QFN, PLCC, ect.

3).  High precision guiderail and bearing at X axis, mounter header can move at Z axis (up and down) of 60mm to confirm high accuracy.

4)  Mounter head can rotate freely, θ angle of 0-360°

5),Max size of printing: 260×280mm

6), Plate-type feeder can run at rotate at two directions

7), Mounting speed: 300-600 CPH;

8), Weight:about 42 kg

9),Dimension:710mm x 610mm x 475mm




Configuration:
1), 24 square grid intelligent disc feeder 1 Pcs.
2), 5 PCS belt feeder 2 group
3), Vacuum air pump(has installed on main machine) 1
4), PCB position platform 1 suit
5), Operation support board 1 PC
6), Mounting system 1 suit
7), Nozzle 5 PCS
8), Suction cup 6 PCS
