• Model NO.：F10
• Specification：5800*1320*1490mm
• Origin：China
• Production Capacity：30 Sets,Month

Model

Jaguar F10





Heating System

Number of heating zones

Up 10/ bottom 10

Number of cooling zones

2(up 2, bottom 2)

Length of heating zones

3890mm

Heating mode

Hot air

Cooling Mode

Forced air cooling

Exhaust Volume

10m³/min * 2 exhausts











Conveyor System

Max. Width of PCB

400mm

Mesh belt width

450mm

Transmission Direction

L→R(option: R→L)

Transmission Net Height

900±20mm

Transmission type

Mesh and chain

Range of rail width

50-400mm

Conveyor speed

0-2000mm/min

Auto/manual Lubrication

Standard

Fixed rail side

Front rail fixed(option: rear rail fixed)

Components high

Top and bottom 25mm

















Control system

Power supply

5 line 3 phase 380V 50/60HZ

Total power

50KW

Starting power

42KW

Normal power consumption

10KW

Warming time

20 mins

Temp. setting range

From room temp. To 300ºC

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1ºC

Temp. deviation on PCB

±2ºC

Data storage

Process Data and status storage(80GB)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temperature (extra-high/extra-low temperature)

Board dropped alarm

Tower light:

Yellow-warming, Green-normal, Red-abnormal



General

Dimension(L*W*H)

5800*1320*1490mm

Weight

2300kg

Color

Computer gray

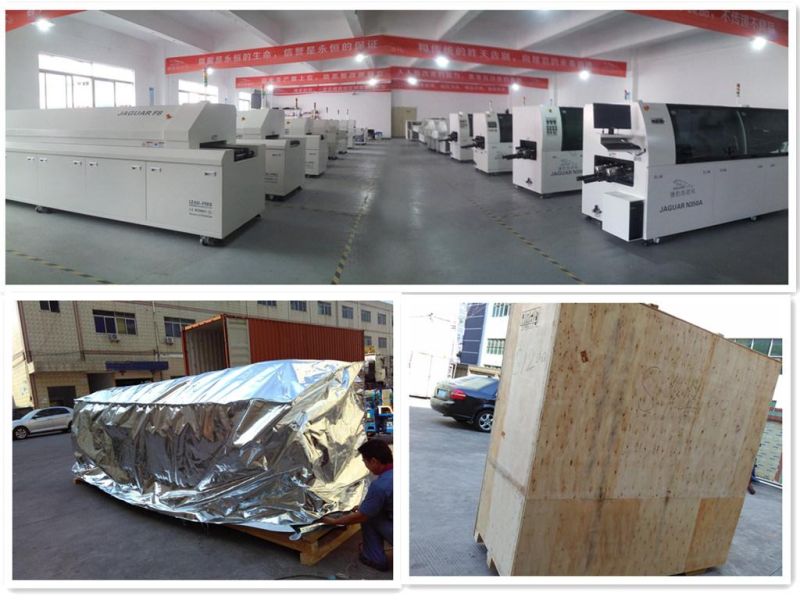

 Packaging & Shipping

                                    vaccum packing + wood

Our Services



Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
Product during the warranty period, under normal storage, maintenance, use, if quality problems, responsible for the free repair or replacement, and provide the relevant maintenance knowledge; as a result of improper use or damage caused by the product does not work normally, the Company provides paid service. Product warranty period is not, it will provide a paid service.

Company Information



Shenzhen Jaguar Automation Equipment Co., Ltd (referred to as  "Jaguar") is a High-speed developing enterprise of High Precision Automatic lead-free Equipment such as reflow oven and wave soldering machine manufacturer, which specializes in lead free machine research and development for years. As one of the well-known lead-free electronics equipment manufacturers in China, JAGUAR was founded in 2009 and headquartered in Shenzhen.
so, what we can do for you and what kind of services we can offer?

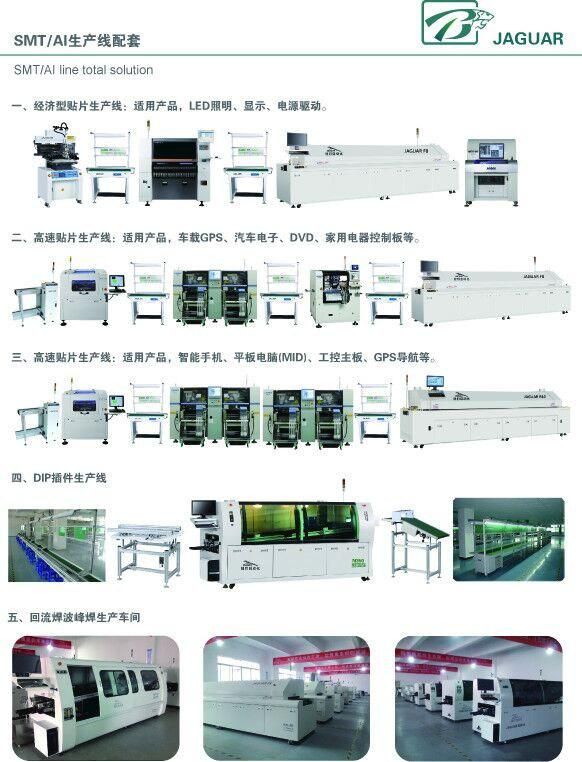

1. we can provide full SMT solution.
2. we can provide you with top technical support.
3. we have enrich experience on SMT factory set up.
4.we can provide the best professional tech service.
5.we can help you to deal with all the trouble about SMT.
6.we are committed to provide the best solution to our clients.



FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
 There is English manual or guide video that show you how to use machine.
 If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
 2) If machine have any problem after I receive it, how can I do ?
 Free parts send to you in machine warranty period.
 If the part is less than 0.5KG, we pay the postage.
 If it exceeds 0.5KG, you need to pay the postage.
 3) MOQ ?
 1 set machine, mixed order is also welcomed.
 4) How can I buy this machine from you? ( Very easy and flexible !)
 A. Consult us about this product on line or by e-mail.
 B. Negotiate and confirm the final price , shipping , payment methods and other terms.
 C. Send you the proforma invoice and confirm your order.
 D. Make the payment according to the method put on proforma invoice.
 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
 And 100% quality check before shipping.
  F.Send your order by air or by sea.
 5)Why choose us ?
 A. Gold supplier on Alibaba !
 B. Trade assurance to US$900,000 !
 C. Best price & Best shipping & Best service !
