• Model NO.：R10
• Specification：5710*1350*1490mm
• Origin：China
• Production Capacity：30 Sets,Month

Model

JAGUAR R10









Heating System

Number of heating zones

UP 10/BOTTOM 10

Number of cooling zones

Up 3 bottom 3

Length of heating zones

3900mm

Heating mode

hot air

Cooling Mode

Air Oven:Forced air

Exhaust Volume

10m³/min * 2 exhausts











Conveyor System

Max. Width of PCB

450mm

Mesh belt width

500mm

Transmission Direction

L→R(or R→L)

Transmission Net Height

900±20mm

Transmission type

Mesh and chain

Range of rail width

0-450mm

Conveyor speed

0-2000mm/min

Auto/manual Lubrication

standard

Fixed rail side

Front rail fixed(option: rear rail fixed)

Components high

Top and bottom 25mm

















Control system

Power supply

5 line 3 phase 380V 50/60Hz

Total power

50kw

Starting power

48kw

Normal power consumption

10KW

Warming time

About 20 mins

Temp. setting range

Room temperature-300ºC

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1ºC

Temp. deviation on PCB

±2ºC

Data storage

Process Data and status storage(80GB)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temp. (extra-high/extra-low temp.)

Board dropped alarm

Tower light:Yellow-warming, Green-normal, Red-abnormal



General

Dimension(L*W*H)

5600×1400×1550mm

Weight

2150KG

Color

Computer gray

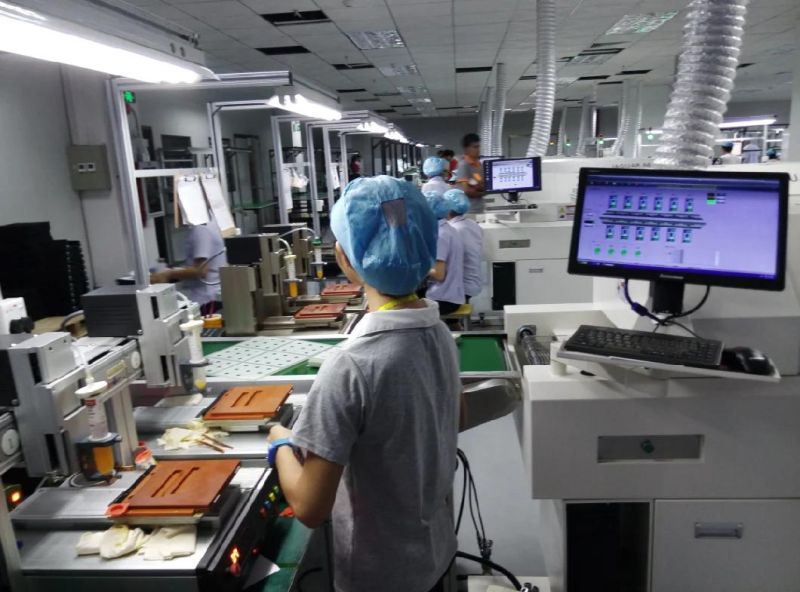

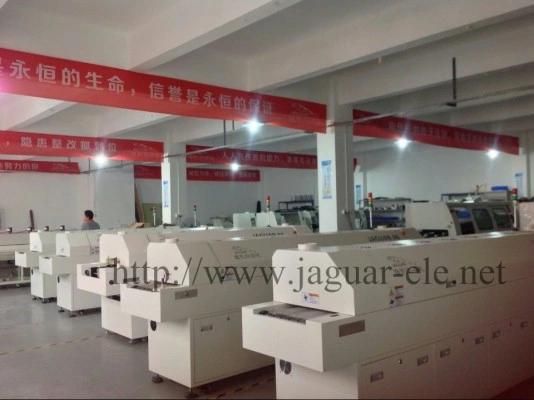

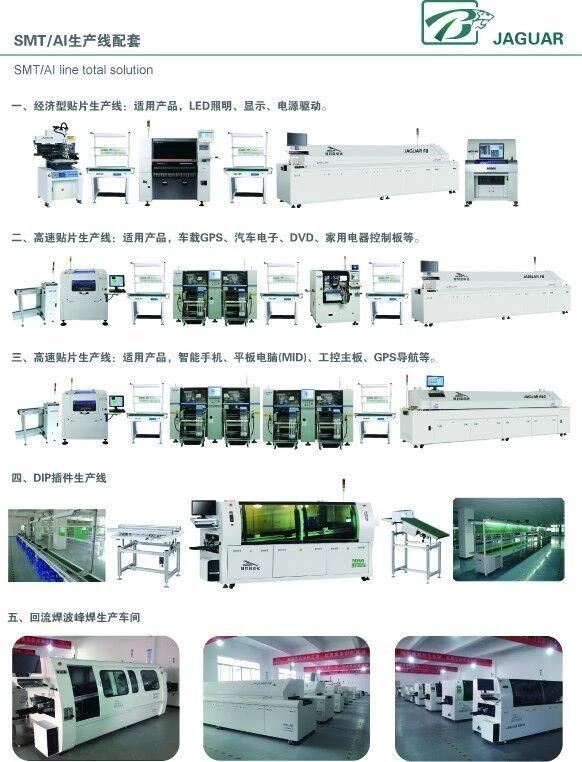

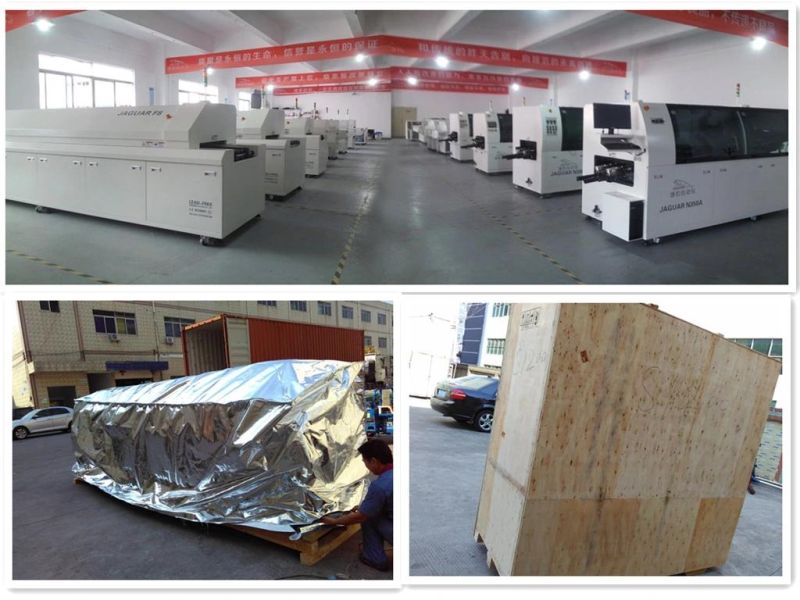

 Packaging & Shipping

                                    vaccum packing + wood
