18 Slots Stator Coil Winding Machine with 3 Needles Winding
This type of coil winding machine has 3 needles to do coil winding. It can do widning, arraying, cutting, demoulding automatically. The winding track is in square shape.

(1)Specification

Wire diameter	0.08~1.2mm
Stator ID	19~65mm
Stack length	7~110mm
Turn No.	0~9999
Movement	Stepping/Auto
Slot number	6,9,12,18(customized)
Air source	5~7kg/cm3
Power	2KW
Power supply	AC 220 V, 50/60HZ
Weight	750KG
Dimension	1600x1100x1400mm

(2)Application
suitable for various types stators with narrow slot width but high slot filling rate.

(3)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

(4)Features
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Winding parameter adjustable according to different stators

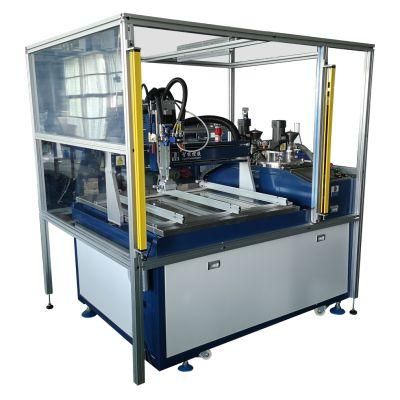

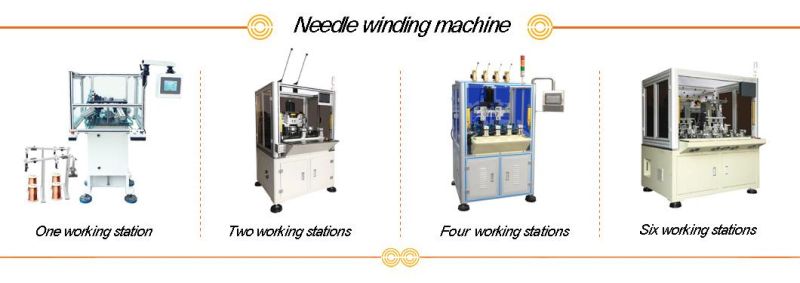

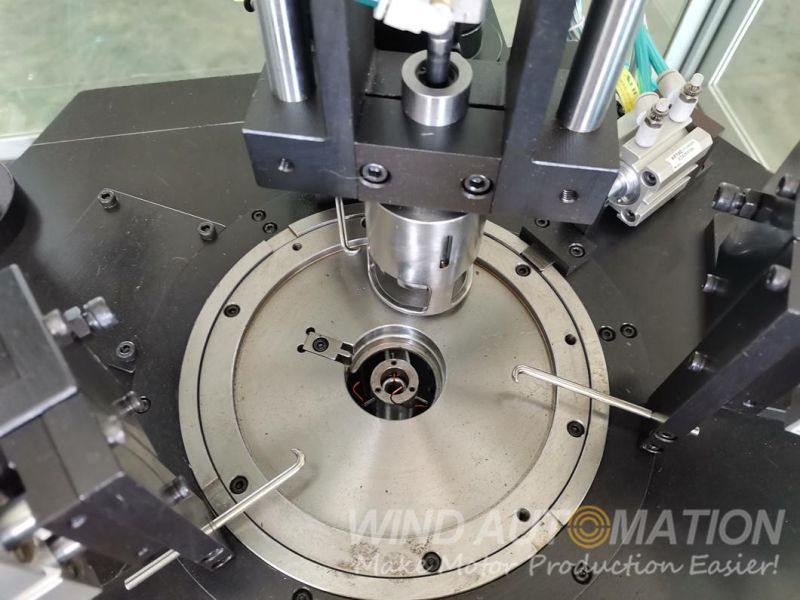

(5)Machine working station
