Hybrid Car Motor Stator Hairpin Coil Winding Machine
Shanghai Wind Automation Equipment Co., Ltd.- Warranty：12 Months
- Color：Customized
- After-Sales Service：Engineers Avaiable to Service Overseas
- Condition：New
- Customized Service：Provided
- Transport Package：Wooden Case
Base Info
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
Hybrid Car Motor Stator Hairpin Coil Winding Machine
This Hairpin Coil Winding Machine can automatically turn single rectangle bare copper wire into haripin shape coil. During hairpin winding, one operator is quite enough to operate this machine.(1)Specifications
| Power supply | AC 380V 50Hz |
| Air pressure supply | ≥0.5MPa |
| Productivity | 4-5s/pc (wire length 300mm) |
| Wire feeding length | Servo adjustable |
| Weight | 1200KG |
| Dimension | 3200x700x1950mm |
(2) Application

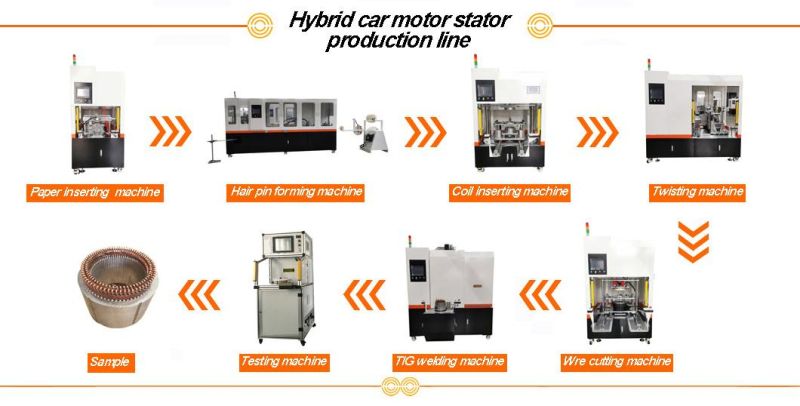

This machine is designed for manufacturing hairpins for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.
(3) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions
Automatic operation as a single unit or as a part of an automatic line
Integrated several machine stations in one automatic machine
Precisely machined high quality steel tools
Auto dust collection system
(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
