Outer Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable Stripper

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-8070H ,YH-SXJ2
  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping
  • Feeding Method：12-Wheel Belt Feeder
  • Cutting Length：0.01-999999.99mm
  • Wire Diameter：10-70 mm2
  • Core Wires：2-8 Cores
  • Head Peeling：Head Peeling Max 120mm
  • Tail Peeling：Tail Peeling Max 240mm
  • Stripping Accuracy：0.01mm
  • Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
  • Capacity：2300PCS,H
  • Detect Function：Wire Presence Detection
  • Air Pressure：0.5-0.8MPa
  • Input Power：AC220V,50Hz
  • Power：3.2kw
  • Transport Package：Double-Layer Export Carton
  • Specification：530*530*400mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

Φ25Blades materialimported high speed steelCapacity1800 PCS/hDriving mode32 wheel drive (silent hybrid stepping motor, servo tool holder)Feeding methodFeeding with belt, the cable has no indentationRemarkThe machine can be customized for processing special cables, and the sample cable should be sent to us for test

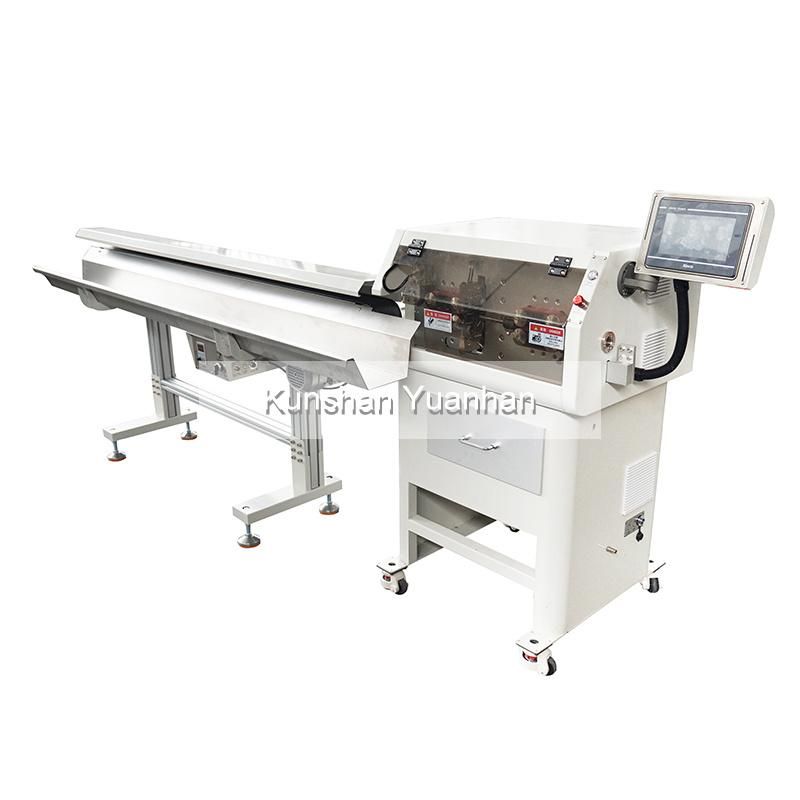

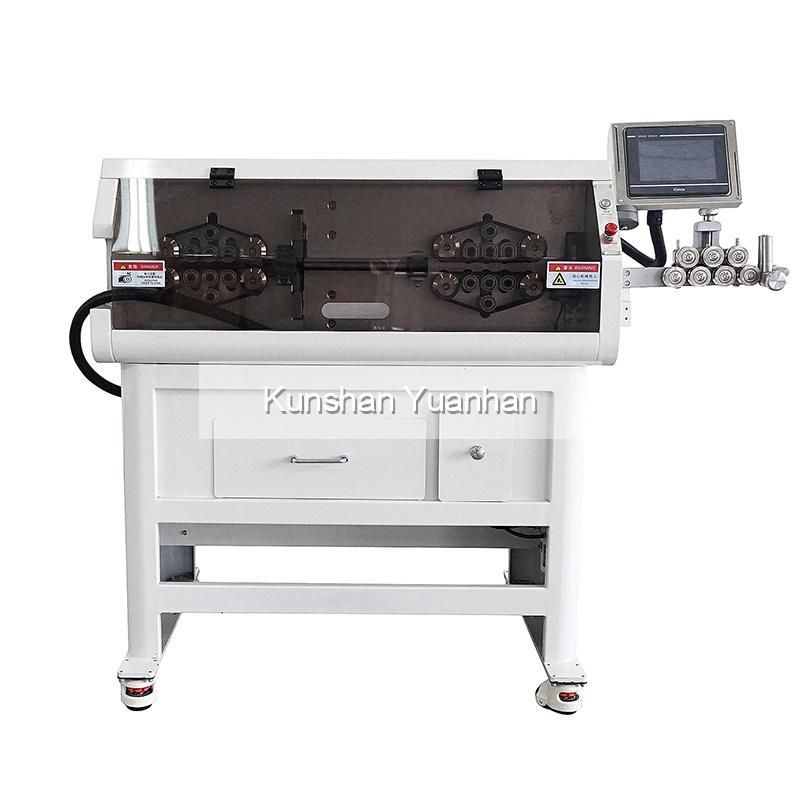

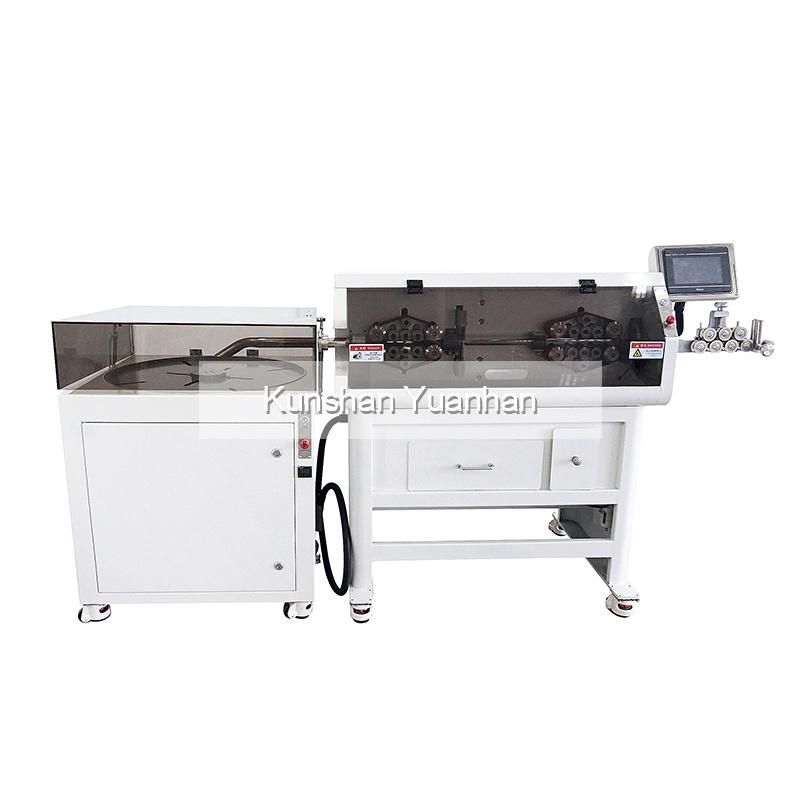

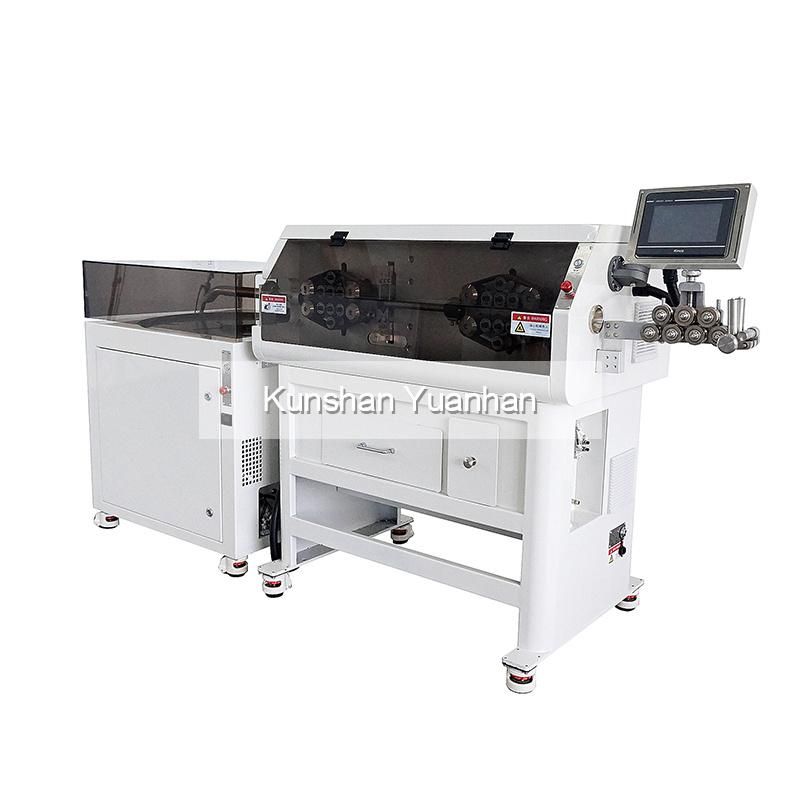

Product Pictures
Outer Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable StripperOuter Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable StripperOuter Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable StripperOuter Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable Stripper

Outer Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable StripperOuter Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable StripperOuter Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable Stripper

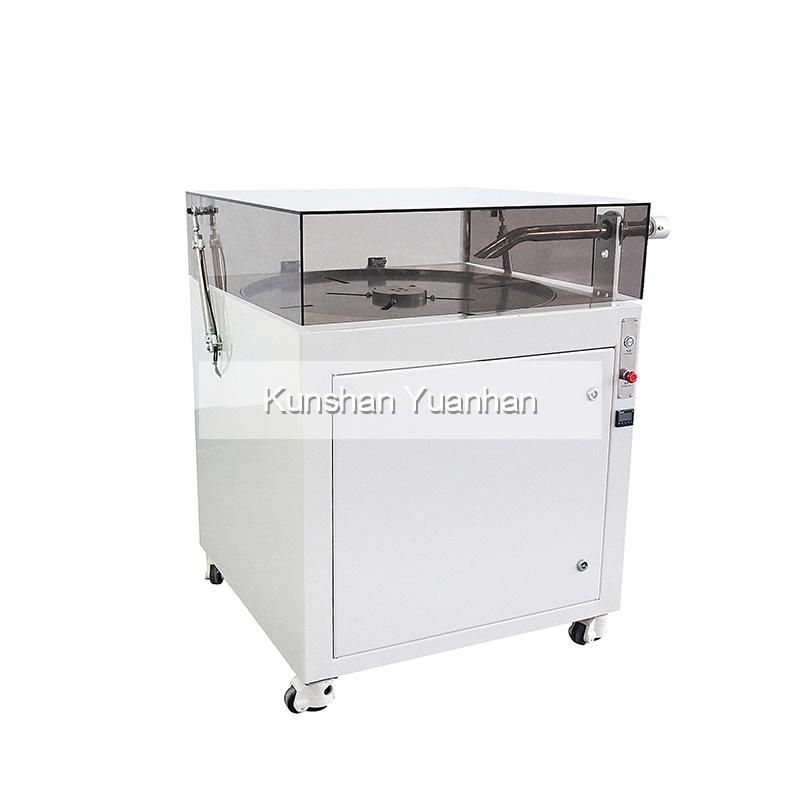

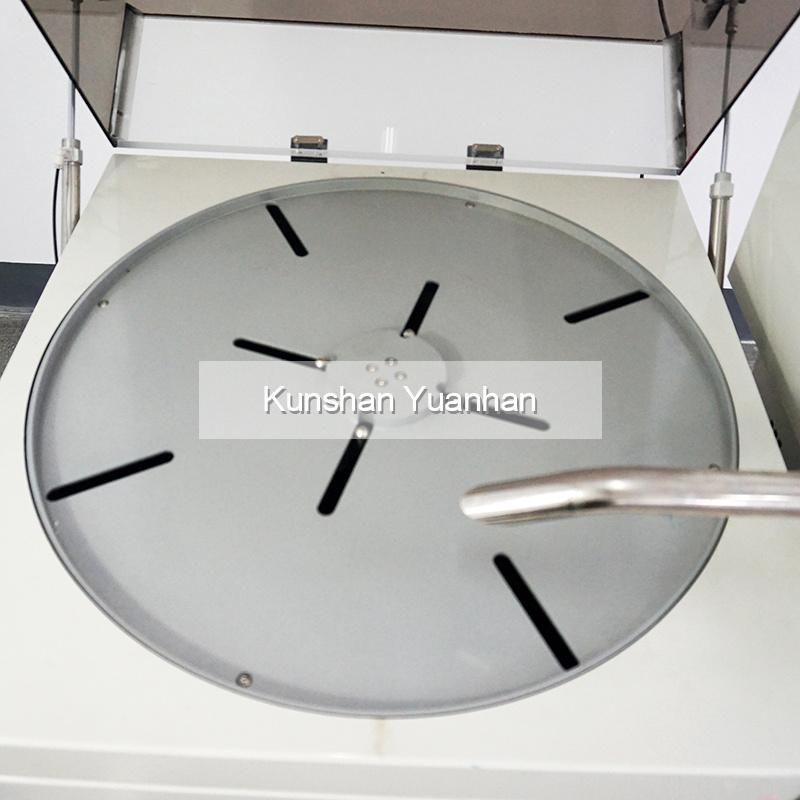

  30 square sheathed wire cutting and stripping both inside and outside. All-in-one machine, with manipulator + 2 meters of wire take-up frameOuter Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable StripperOuter Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable Stripper



Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

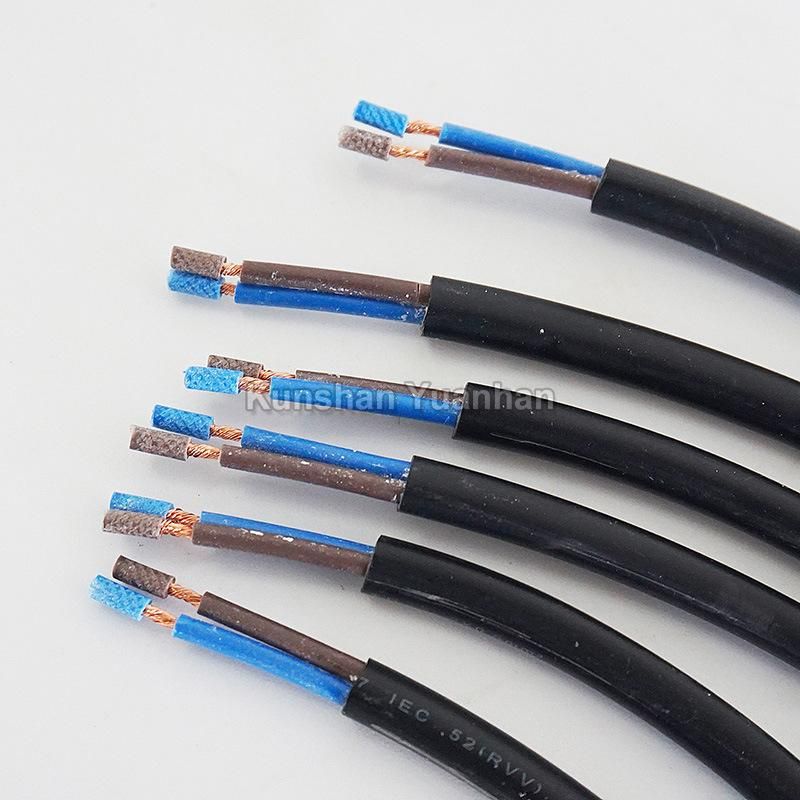

Sample: cut and strip wire automatically

Outer Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable StripperOuter Jacket Cable and Inner Core Wire Stripping Cutting Machine Sheathed Cable Stripper
Any questions, please feel free to contact us ! Thank you !
