SMT Assembly Machines/PCB Soldering Machine with Online Temperature Testing R350

Termway (Beijing) Precision Technology Co., Ltd.
  • Certification:ISO, CE
  • Warranty:12 Months

Base Info

  • Model NO.:R350
  • Automatic Grade:Automatic
  • Installation:Vertical
  • Max PCB Size:600mm*350mm
  • Temperature Accuracy:Within2 Degree
  • Temperature Uniformity:Within 5 Degree
  • Rated Voltage:AC Single-Phase 220V, 50Hz
  • Max Power:7.8kw
  • Average Power:2.5kw
  • Dimension:1500* 700* 520mm
  • Video Link:HTTP:,1drv.Ms,1nlrqag
  • Heating Zone:12heating Zone
  • Plate-Heater:Ceramic
  • Transport Package:Plywood with Foam Inside
  • Specification:CE
  • Trademark:TORCH
  • Origin:Beijing China
  • HS Code:851410900
  • Production Capacity:1000 Sets Per Year




Temperature zone

up and down total12groups temperature zone + 4 groups inline testing


Controlling temperature system

computer control system, SSR without touch point output

Temperature accuracy

± 2 °C


Temperature uniformity

within 5 °C


Temperature range

room temperature -360 °C


Heat source

dark infrared ray + hot air convection


Circuit board welding size

600mm *350mm

Welding time

3min ± 1min


Temperature curve

can be set by requirements,meanwhile real time test and analyst welded circuit board temperature

Cooling system

wind cooling,can use air cooler to reduce temperature rapidly

Rated voltage

AC single-phase 380 v; 50 hz


Max power

7.8KW average power: 2.5kw



150 kg


1500* 700* 520mm


Product Description

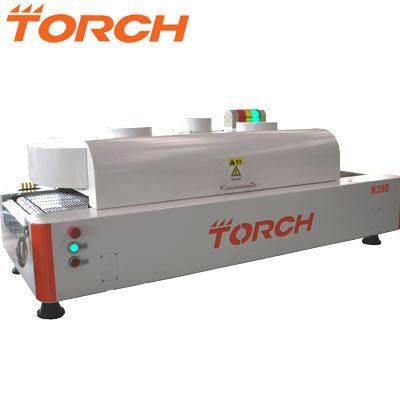

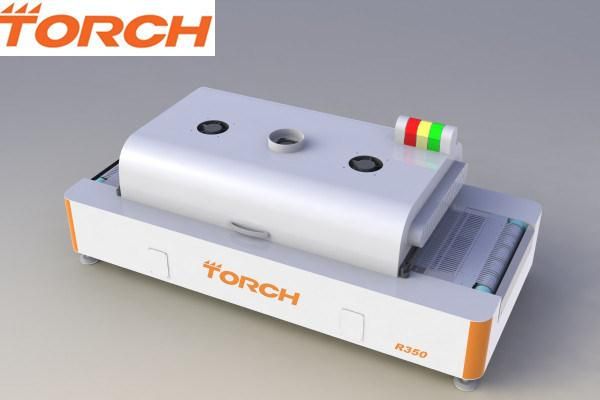

R350 is the first inline lead free reflow oven worldwide with six temperature zones and the min inline reflow oven worldwide with six temperature zones

 R350= a inline lead free reflow oven + a temperature curve tester with four channels

 R350 has high reliability, high temperature uniformity, circuit board welding plate actual temperature real time detection, module temperature control system, the test report format is beautiful and very high cost performance


R350 client orientation;

1.Small batch electronics factory, research institutes

2.High welding requirements

3.Big size circuit board welding requirements

4.Cover small area, office and home office can be used

5.Can weld BGA, CSP, QFP etc


R350 unique aspect:

1.Worldwide min heating zone can achieve desk type six temperature zone welding function

2.R350 adopts pioneering panel heating technology science and technology, higher temperature evenness

3.R350 adopt four groups inline testing function, complete four ways circuit board inline real tine testing heat function

4.R350 can weld big size circuit board:600*350MM.

5.R350 using induction heating technology, six temperature zones reflow soldering can be used in air conditioning socket normally. More suitable for users of various environment.

6.R350 free maintenance function, the whole machine adopts module temperature control system, it is convenient to use for users, reduce the cost of the long-term using

7.R350 increase waste gas purification filtering functions after welding produce. more environmental protection

8.R350 adopt patent flux recovery technology, can ensure flux recycling in the using process, more environmentally friendly equipment, at the same time furnace chamber free cleaning.

9.R350 with high thermal insulation materials and patent technology, normal using process, the equipment shell temperature less than 48 degrees


Packaging & Shipping

Packing:  Wooden box packing can be customized.


Delivery: 20-30 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery.


The SMT machine production line  waiting for delivery:


Our Services

What service you can enjoy if you purchase LED SMT machine from us:

1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !

2) 24 hours online service and technical support, solve your questions quickly!

3) Sound company organisation and working system, guarantee you a fast delivery!

4) Design and produce the whole SMT proecssing lines for you based on your budget , workshop covering area with best prices!


5) 24 hours online service for LED light board assemble machine:



6) we have overseas after-service

Company Information






1): What's the way of shipping?

 Answer: These are all heavy machines; we suggest you use cargo ship. But components for mending the machines, air transportation would be fine.


 2): What's your way of packing the machines?

 Answer: We use Plastic film to wrap the machine, then use Wooden cases to ensure its safety.


 3): Do you have oversea after sale service?      Can we offer the technical support?

 Answer: Yes, we can offer technical support abroad. If you have any technical problem, our engineers will go to your country at the first time.


 4): How is the training?

After buying our machines, your engineers can go to our company or our engineers go to your factory, and we will train them how to use these machines.


 5): Is it hard to use these machines?

 Answer: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.


 6): What's the terms of payment? What about the trade terms?

 Answer: T/T, L/C are ok. You can choose FOB Beijing/Tianjin.


 7): Does your machines have quality certificate? How can I trust your products?

Answer: All of our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and have own patent. Our company has entered markets in USA, Brails, Mexico ,Iran,Venezuela ,Asian market , and have established good cooperation with clients there.
