Silicon Rubber Electric Wire Cable Extruder

Dongguan Newtopp Electrical Machinery Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
  • Warranty：12 Months
  • Screw：Single-Screw
  • Usage：Use for Conductor Single-Layer Insulation Extruder

Base Info

  • Model NO.：XJ30,40,50,60
  • Wire Size：AWG38-24
  • Extrusion Material：PE, Foam-PE, PP, PU, PVC, Sr-PVC etc
  • No. of Temperature Control：3+3+2,3+3+3,4+3+3
  • Power：3HP,5HP,10HP,15HP
  • Screw Material：38crmoala
  • Highest Output：20kg-50kg,H
  • Highest Wire Speed：350-600m,Min
  • Capstan Power：3HP
  • Length of U Water Tank：9m
  • Automatic Grade：Automatic
  • Customized：Customized
  • Transport Package：PE Film + Wooden Pallet
  • Specification：Striping insulation
  • Trademark：NEWTOPP
  • Origin：Dongguan City, Guangdong Province, China
  • HS Code：8479400000
  • Production Capacity：6 Sets,Month

Description

Basic Info.

Model NO. XJ30/40/50/60 Wire Size AWG38-24 Extrusion Material PE, Foam-PE, PP, PU, PVC, Sr-PVC etc No. of Temperature Control 3+3+2/3+3+3/4+3+3 Power 3HP/5HP/10HP/15HP Screw Material 38crmoala Highest Output 20kg-50kg/H Highest Wire Speed 350-600m/Min Capstan Power 3HP Length of U Water Tank 9m Automatic Grade Automatic Customized Customized Transport Package PE Film + Wooden Pallet Specification Striping insulation Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

Silicon Rubber Electric Wire Cable Extruder:

Widely Usage: Use for conductor single-layer insulation/Chemical foam-skin double-layer/striping extrusion.

Large capacity: Optimzing screw design, srew durable, non cohesive glue, non take off chrome, color change quickly, high wire speed, high output.

High quality: Extrusion concentricity: over 93% OD tolerance:+/-0.005mm, capacitance value:+/-0.5PF

Temperature control precise: Adopt SCR power control machine with imported high quality temperature control table, the machine temperature controlled with+/-1°C.

Easy control: Intelligent control, capacitance and wire diameter auto-feedback and adjustment, the first company in China which can do that. Hommization machine design combined with NewTopp specialized touch screen. Make machine operation easier and convenient.

Save place: Change traditional accumulator, capstan, take-up, meter-counter, Sparker and other auxiliary equuipment into overall structure, layout compact, overall length will be reduce more than 5m.

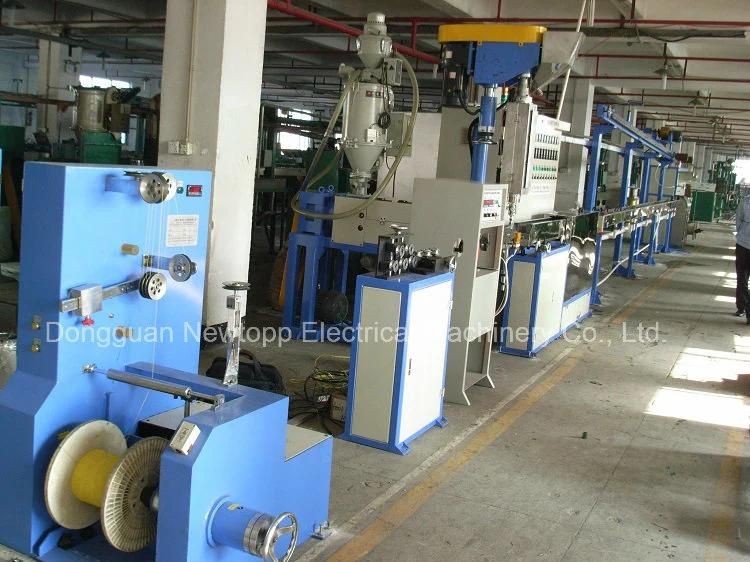

Products Show As below:      Silicon Rubber Electric Wire Cable Extruder
