• Model NO.：XJ30,40,50,60
• Extrusion Material：HDPE, PP, PU, PVC, Sr-PVC(Xj-50)
• Screw Parameter：L,D Radio: 26-28:1
• Screw Material：38crmoaia, Vacuum Heating
• Highest Outoput：60kg,H
• Highest Wire Speed：600m,Min
• Power：15HP
• Temperature-Control Segments(Boby+Head)：4+2
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Mould Life：>1, 000, 000 Shots
• Automatic Grade：Automatic
• Customized：Customized
• Transport Package：PE Film + Wooden Pallets
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ30/40/50/60 Extrusion Material HDPE, PP, PU, PVC, Sr-PVC(Xj-50) Screw Parameter L/D Radio: 26-28:1 Screw Material 38crmoaia, Vacuum Heating Highest Outoput 60kg/H Highest Wire Speed 600m/Min Power 15HP Temperature-Control Segments(Boby+Head) 4+2 Precision High Precision Demoulding Automatic Heating System Electric Function High Temperature Resistance Mould Life >1, 000, 000 Shots Automatic Grade Automatic Customized Customized Transport Package PE Film + Wooden Pallets Specification CE SGS Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

HDPE Pipe Production Line / PP PE Plastic Pipe Extrusion Machine

Specification and configuration for ø50mm core wire insulation extrusion machine

1). Application:
Used for high-speed insulation extrusion for PVC/SR-PVC/HDPE/PP/PU wire and cable.

2). Main specification:

A. Concentricity: 93-97% OD tolerance: Solid +/-0.005
B. Wire specification: AWG30-AWG24 (0.1mm-1mm)
C. Body temperature will be controlled within ±1ºC, working speed: 400-600m/min (depends on wire diameter)
D. Extrusion material: HDPE, Foam-PE, PP, PU, PVC, SR-PVC, etc.
E. Machine color: As required.
F. Operation direction: Right hand or Left hand (As required)

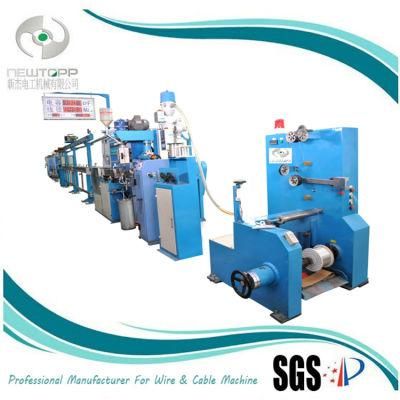

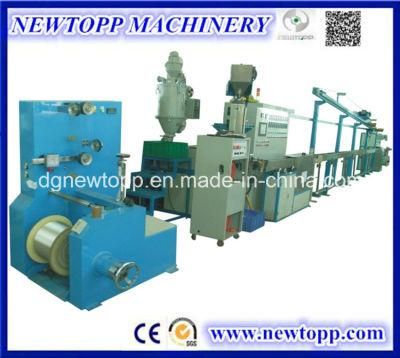

3). Main parts:

(A) ø300-500mm single-head active pay off
(B) ø50mm main extruder
(C) Electrical control cabinet
(D) U7 domestic extrusion crosshead
(E) 1.8M movable cooling water tank
(F) Laser diameter tester (Eectrl)
(G) 9M single layer cooling water tank
(H) 9M high precision horizontal accumulator
(I) High frequency spark tester
(J) ø250 dual capstan + ø500 double-bobbin take-up machine

4). Brand of main accessories:

A. Motor: Siemens
B. Frequency converter: Yaskawa
C. Bearing: NSK (Japan brand)
D. Electrical component: Siemens or Omron
E. PLC controller: Siemens

5). Spare parts

Name	Unit	Qty
Tool box	Piece	1
Operation instruction and circuit diagram	Piece	1
Inside hexagonal spanner	Piece	1
Round nut spanner+type and type screw	Piece	1 for each
Scissors, pointed forceps	Piece	1 for each
